GASTRONORM

Robust, strong and indestructible.
A “team” with a perfect range and above all a winner!
GASTRONORM is a series of interchangeable and stackable products: unity is strength.

Stainless steel Aisi304 Gastronorm trays and containers

High quality, solid and made to last, thanks to the increased thickness (can vary from 0.7 to 1mm) and the use of stainless steel Aisi304. This steel, commercially known as 18/8 or 18/10, contains up to 10 times more nickel than low quality products; this makes it resistant to corrosion and damages caused by aggressive, but common agents like salt and organic solvents included in detergents. The production is completed by electrolysis cleaning in acid, a special procedure normally reserved for surgical instruments.
The accurate design makes these Gastronorm containers a great choice for the presentation of food and very practical for the kitchen: the stacking collar on the side lets you stack them without getting them stuck inside each other, while the tight but smooth radius improves capacity and makes them easy to clean. Resistant to high and low temperatures (-40°C, +300°C), they can be used in the oven, bain-marie and to stock or transport hot food. The use of high quality raw material makes them ideal for prolonged use: completely odourless and flavourless, they don’t fear corrosion and repeated washing cycles in the dishwasher. They comply fully with standard EN-631 norms and they’re certified by NSF, the best known quality mark in the American market.

Aisi 304 gastronorm containers with stacking collar

The stacking collars on the walls allow to easily stack and unstack the containers without risks. Compatible with our Gastronorm polycarbonate containers. Electrolysis bath for all the height 150 and 200 containers or alternatively for the other sizes; electrolysis, typical for surgical instruments, ensures a shinier and smoother finishing. Made in AISI 304 to ensure maximum resistance to corrosion, a high quality genuine steel perfect for food contact. Every piece is checked and packed in bags one by one to preserve the surface and the cleaning.

MOD. 2/1

Code H (mm) ext. dimens. (mm) cap. lt.
BA21065 65 650×530 20,2
BA21100 100 650×530 31,0
21150 150 650×530 46,5
21200 200 650×530 62,0

MOD. 1/1

Code H (mm) ext. dimens. (mm) cap. lt.
11065 65 530×325 9,8
11100 100 530×325 15,0
11150 150 530×325 22,5

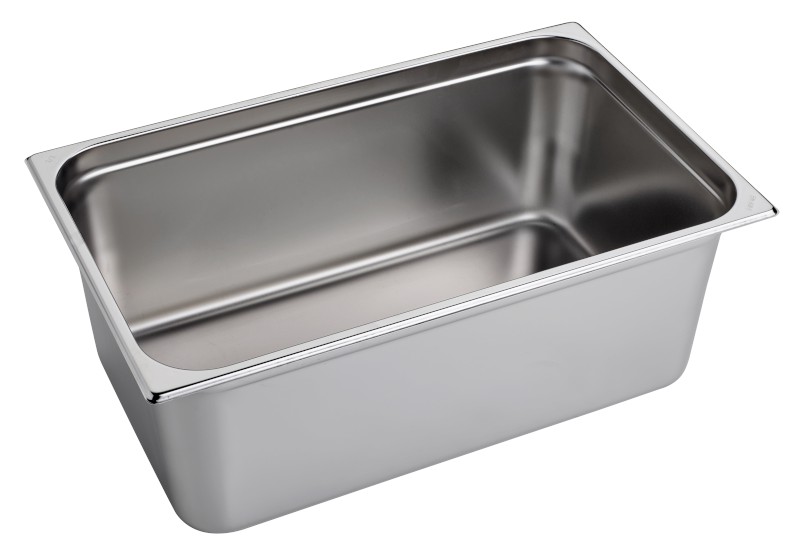

11200 200 530×325 30,0
BA11055 55 530×325 8,4
BA11065 65 530×325 9,8
BA11100 100 530×325 15,0

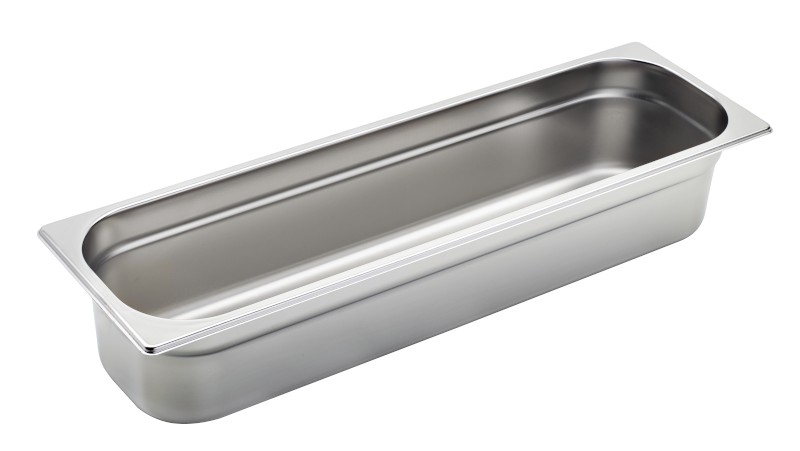

MOD. 2/4

Code H (mm) ext. dimens. (mm) cap. lt.
BA24065 65 530×162 4,5
24100 100 530×162 6,9
24150 150 530×162 13,8

MOD. 2/3

Code H (mm) ext. dimens. (mm) cap. lt.
23065 65 354×325 6,4
23100 100 354×325 9,9

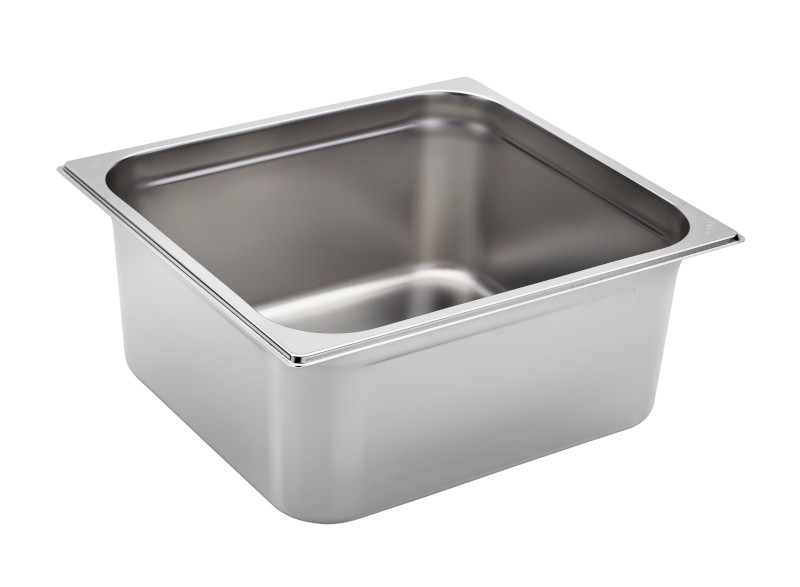

23150 150 354×325 14,8

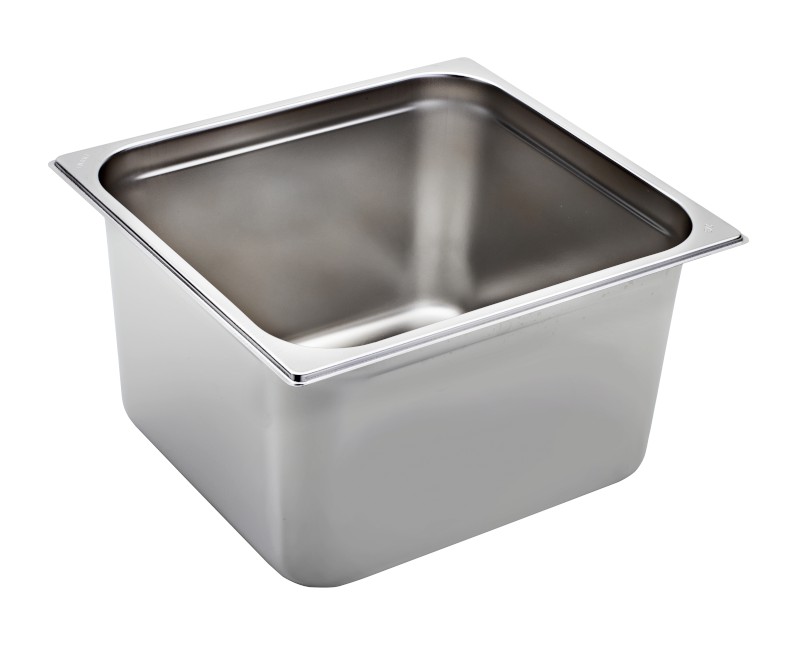

23200 200 354×325 19,7
BA23065 65 354×325 6,4
BA23100 100 354×325 9,9

MOD. 1/2

Code H (mm) ext. dimens. (mm) cap. lt.
12065 65 325×265 4,7
12100 100 325×265 7,2

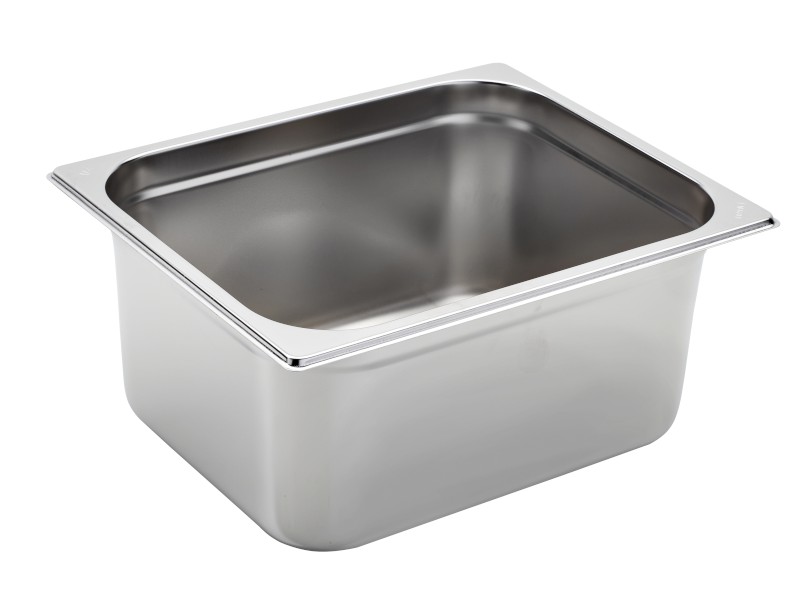

12150 150 325×265 10,8

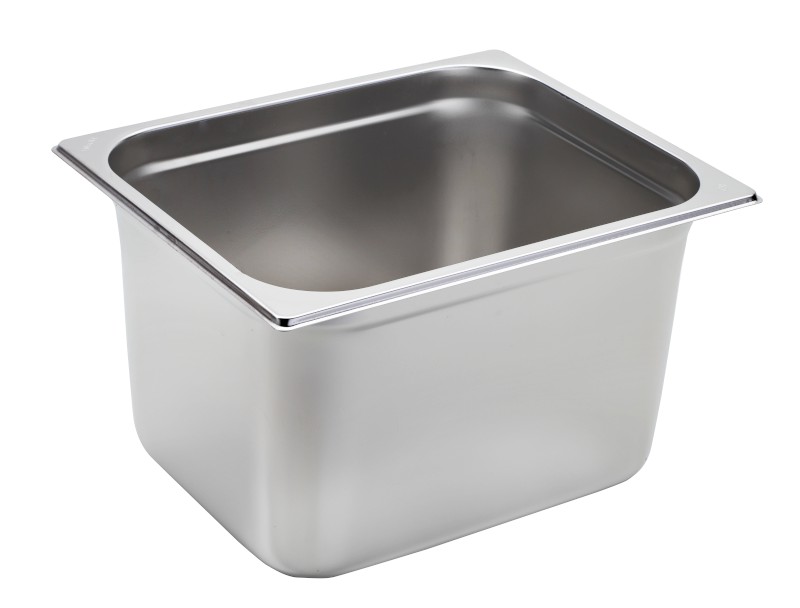

12200 200 325×265 14,4
BA12065 65 325×265 4,7
BA12100 100 325×265 7,2

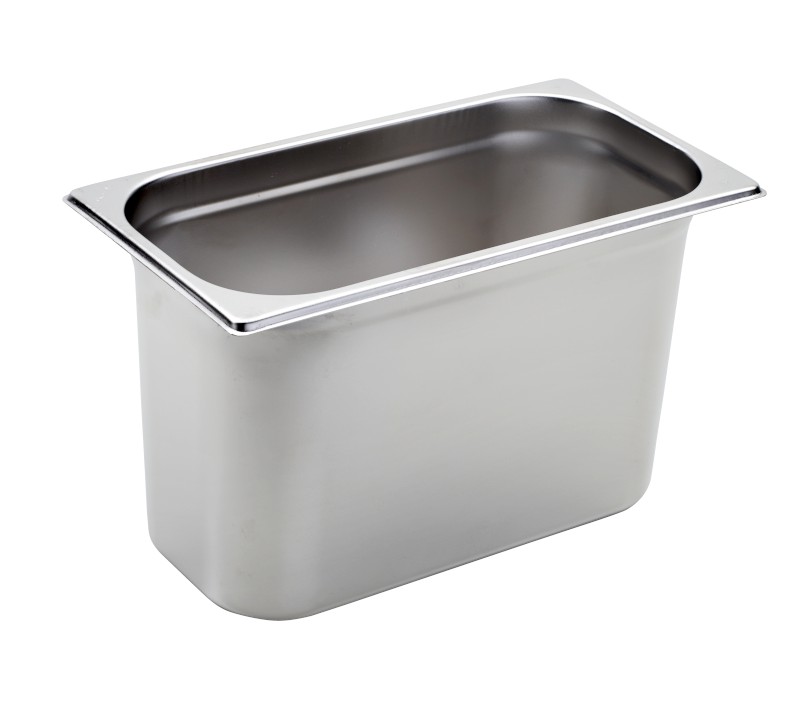

MOD. 1/3

Code H (mm) ext. dimens. (mm) cap. lt.
13065 65 325×176 2,9
13100 100 325×176 4,5

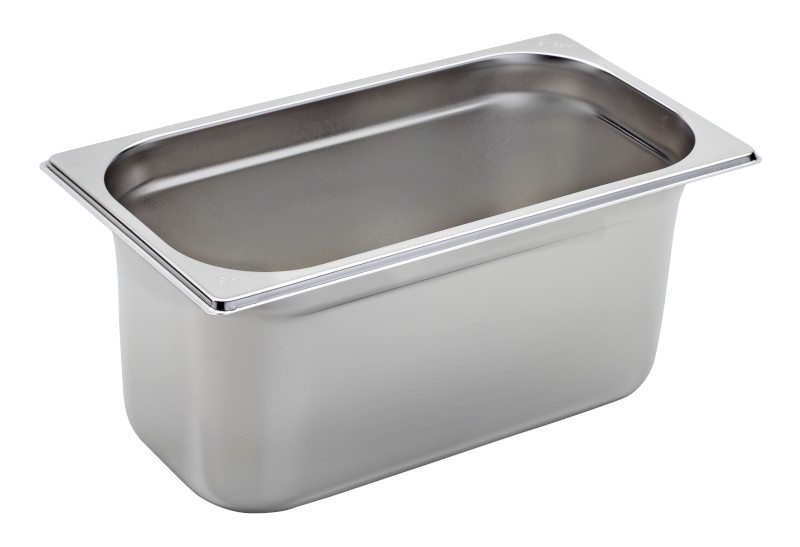

13150 150 325×176 6,8
13200 200 325×176 9,0
BA13065 65 325×176 2,9
BA13100 100 325×176 4,5

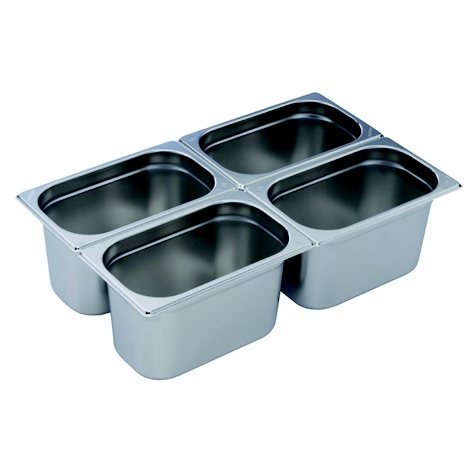

MOD. 1/4

Code H (mm) ext. dimens. (mm) cap. lt.
14065 65 265×162 2,1
14100 100 265×162 3,2
14150 150 265×162 4,9

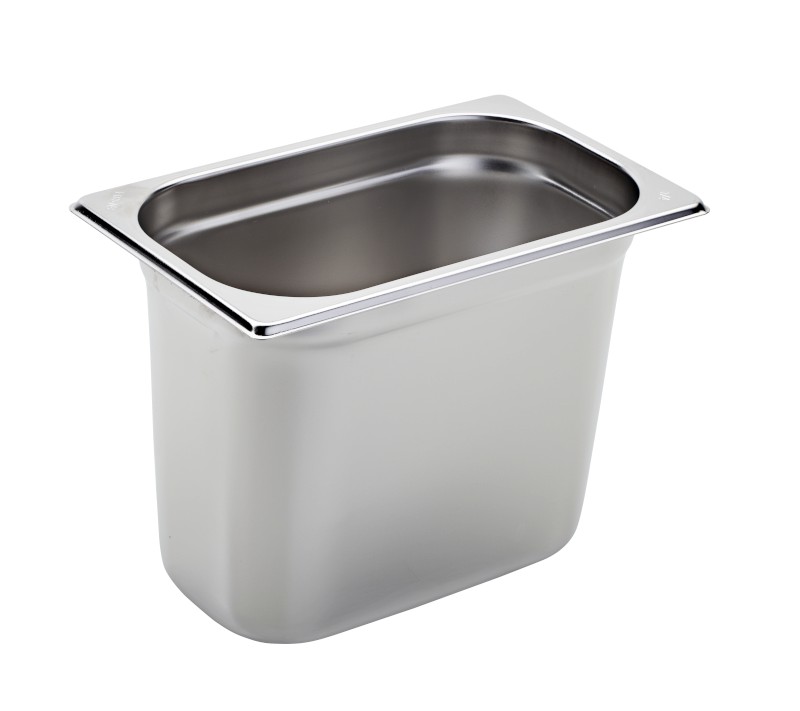

14200 200 265×162 6,5
BA14065 65 265×162 2,1
BA14100 100 265×162 3,2

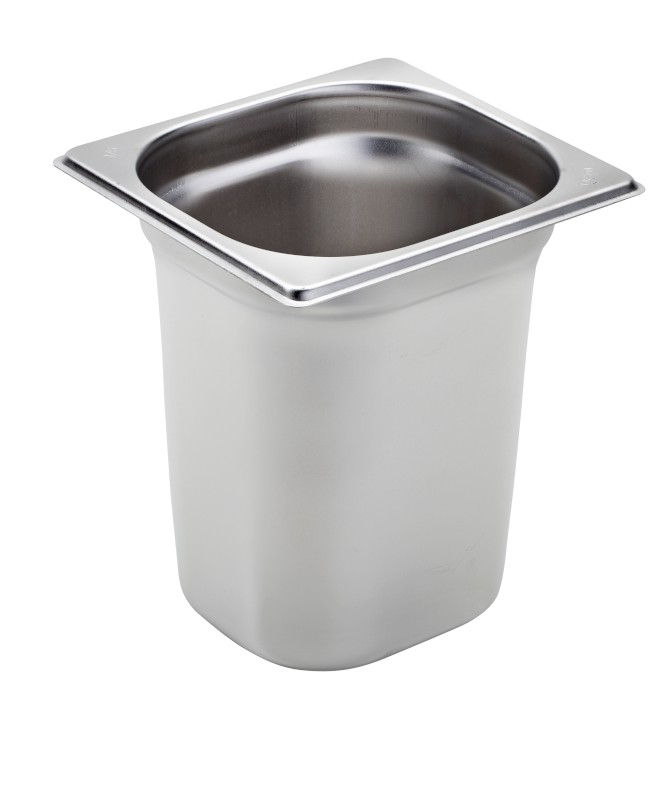

MOD. 1/6

Code H (mm) ext. dimens. (mm) cap. lt.
16065 65 176×162 1,4
16100 100 176×162 2,1
16150 150 176×162 3,2
16200 200 176×162 4,3
BA16065 65 176×162 1,4
BA16100 100 176×162 2,1

MOD. 1/9

Code H (mm) ext. dimens. (mm) cap. lt.

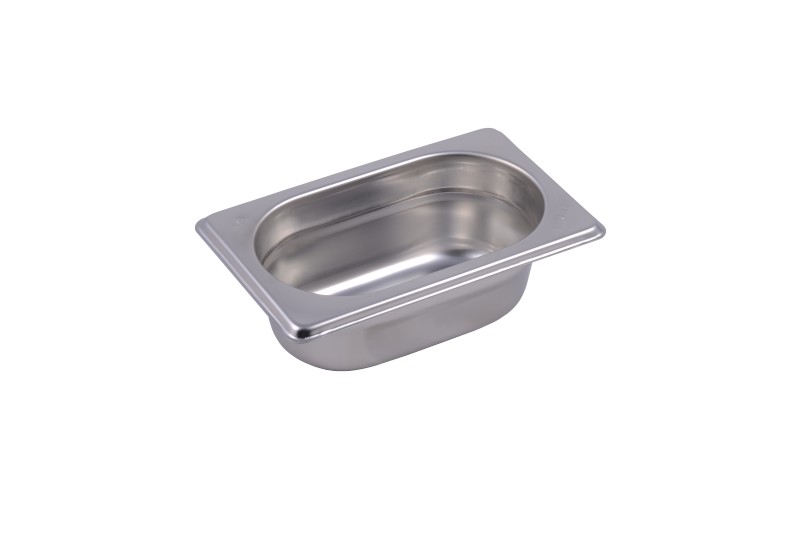

19065 65 176×108 1,3

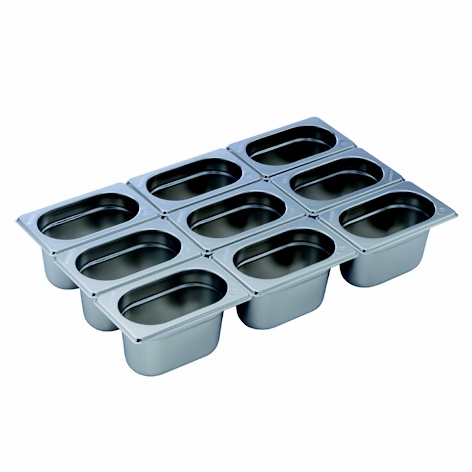

19100 100 176×108 0,8

MOD. 2/8

Code H (mm) ext. dimens. (mm) cap. lt.
BA28055 55 132×325 1,8

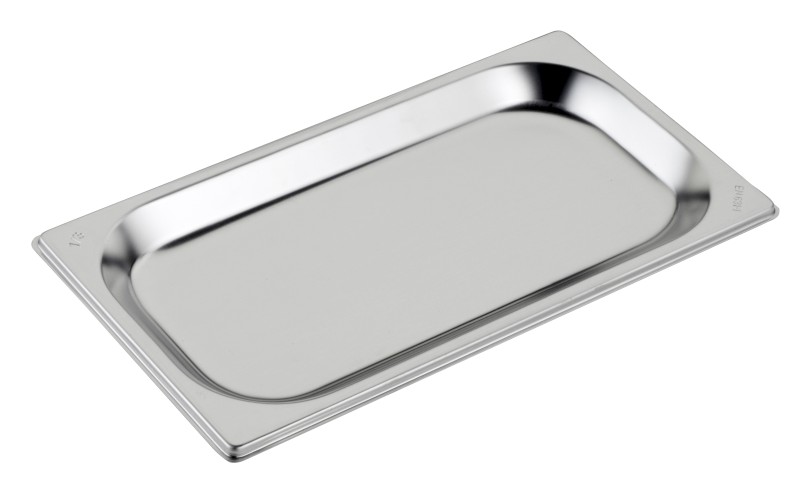

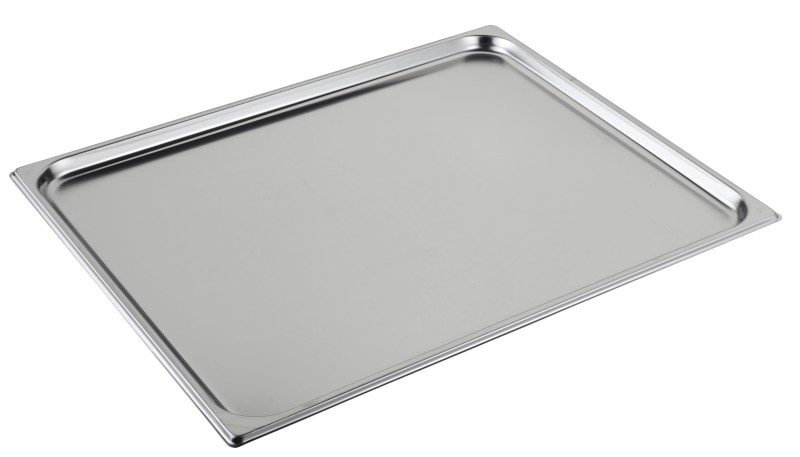

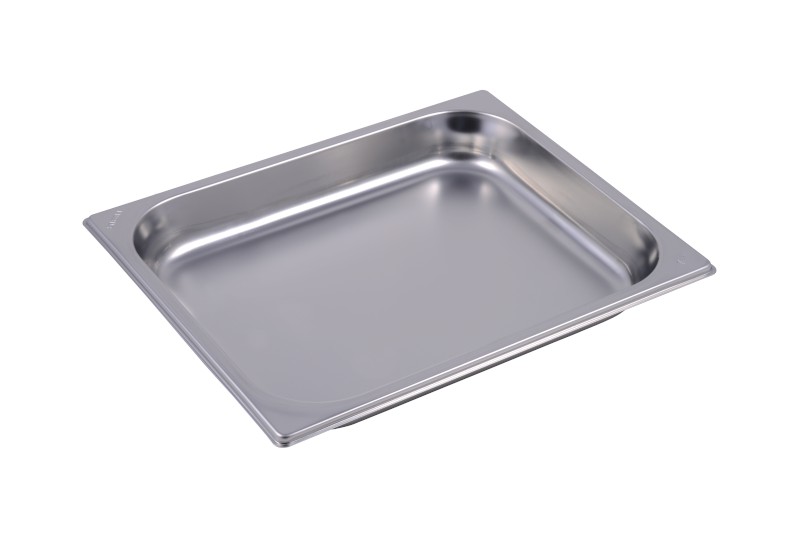

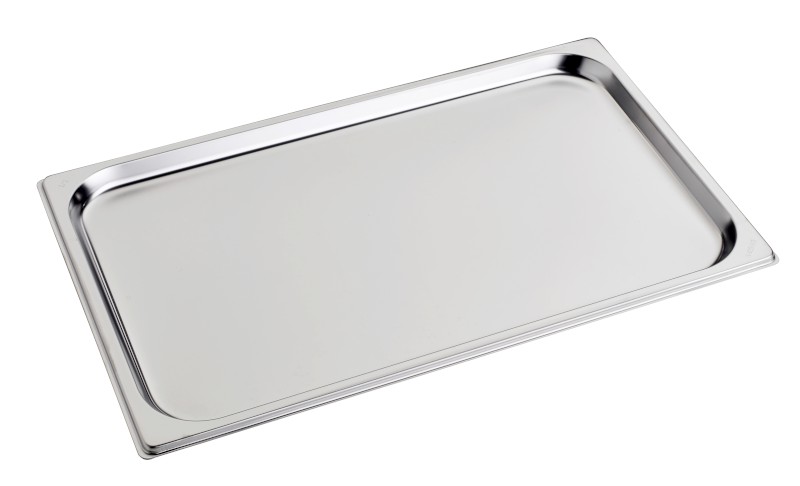

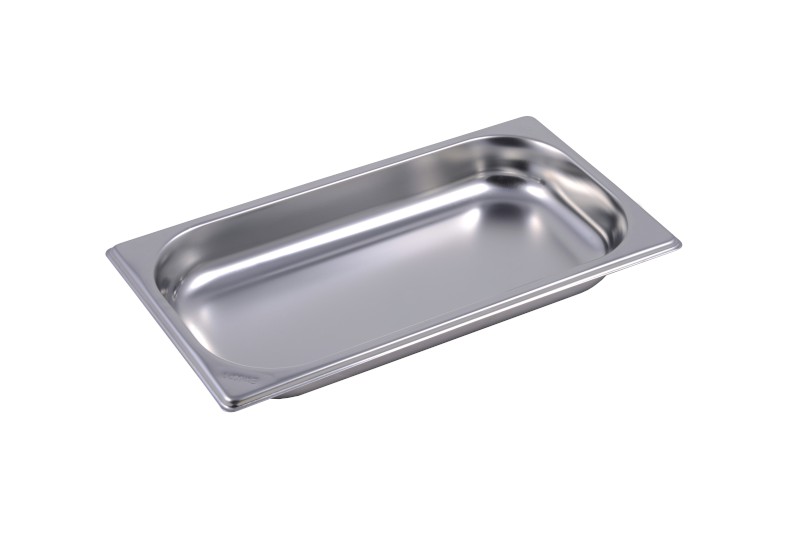

Baking containers with “edge rim” (rounded edge)

MOD. 2/1

Code H (mm) ext. dimens. (mm) cap. lt.
TG21020 20 650×530 6,2
TG21040 40 650×530 12,4

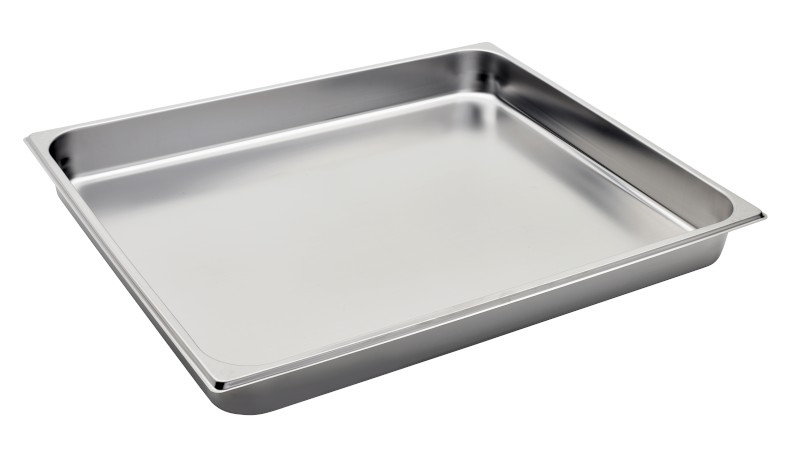

TG21065 65 650×530 20,2

MOD. 1/1

Code H (mm) ext. dimens. (mm) cap. lt.
TG11010 10 530×325 1,5

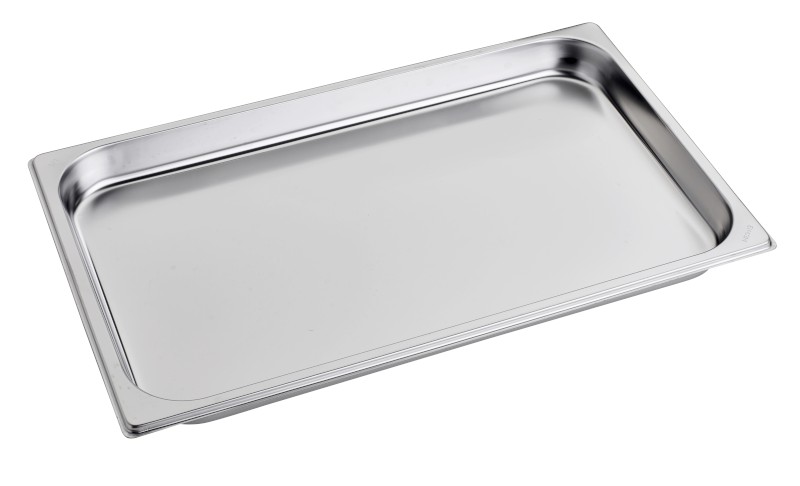

TG11020 20 530×325 3,0
TG11040 40 530×325 6,0
TG11065 65 530×325 9,8

MOD. 2/4

Code H (mm) ext. dimens. (mm) cap. lt.

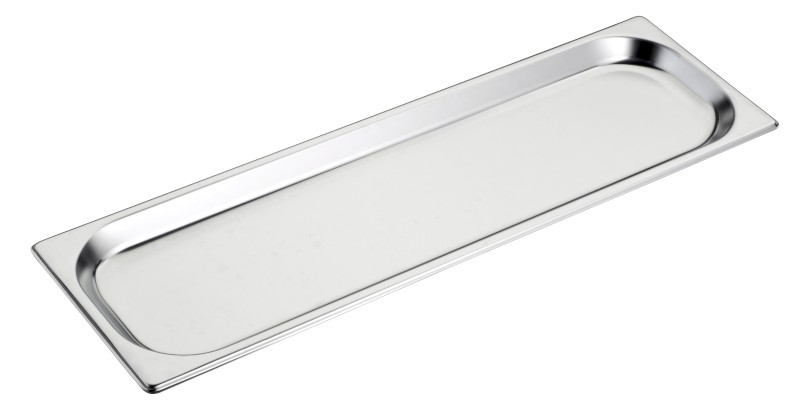

TG24020 20 530×162 1,4

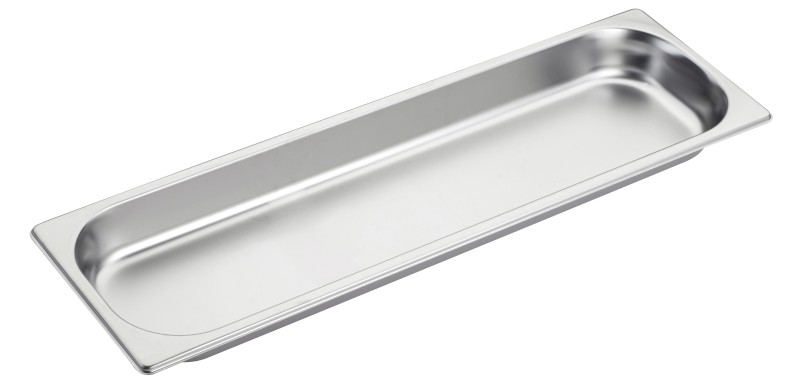

TG24040 40 530×162 2,8
TG24065 65 530×162 4,5

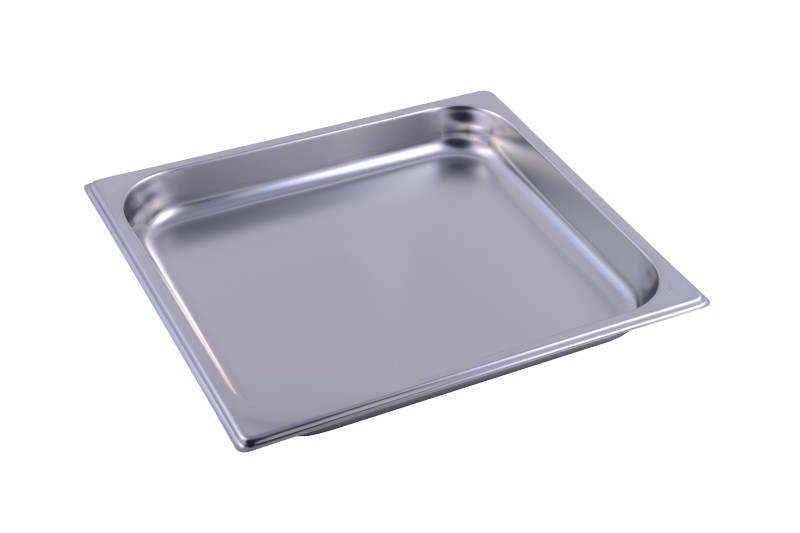

MOD. 2/3

Code H (mm) ext. dimens. (mm) cap. lt.
TG23020 20 354×325 2,0
TG23040 40 354×325 3,9
TG23065 65 354×325 6,4

MOD. 1/2

Code H (mm) ext. dimens. (mm) cap. lt.
TG12010 10 325×265 0,7

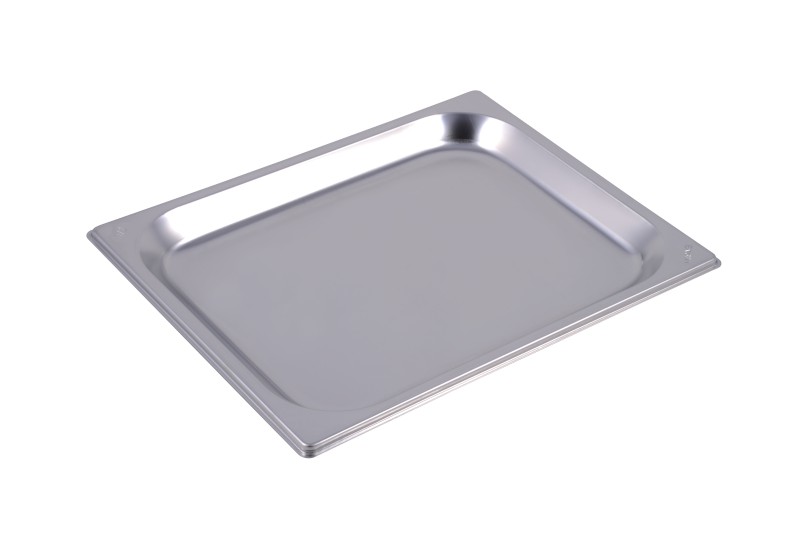

TG12020 20 325×265 1,4
TG12040 40 325×265 2,9
TG12065 65 325×265 4,7

MOD. 1/3

Code H (mm) ext. dimens. (mm) cap. lt.
TG13020 20 325×176 0,9
TG13040 40 325×176 1,8
TG13065 65 325×176 2,9

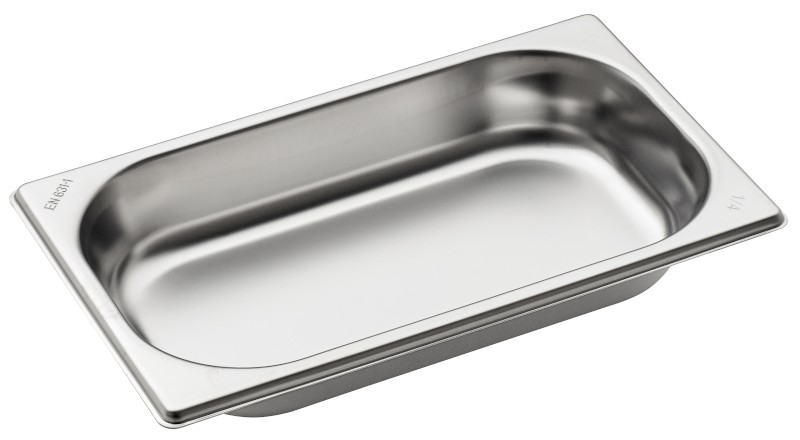

MOD. 1/4

Code H (mm) ext. dimens. (mm) cap. lt.

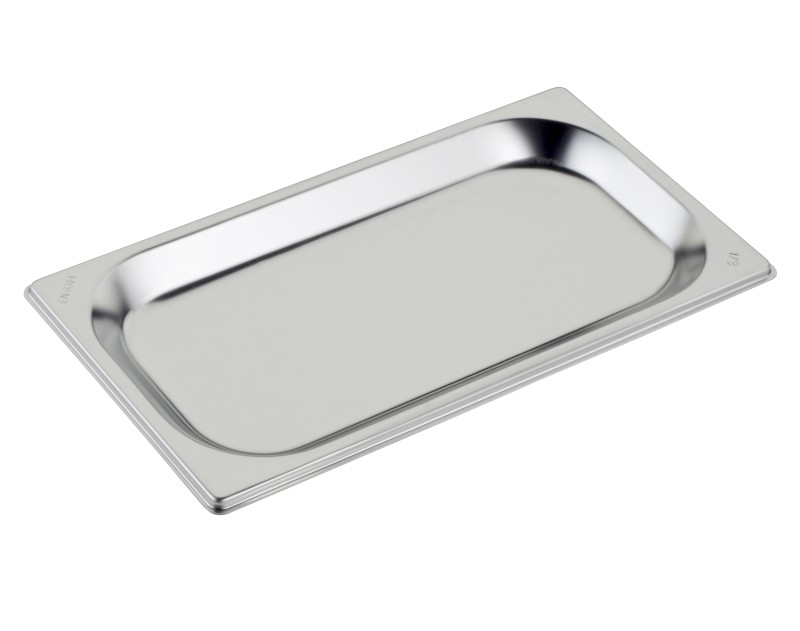

TG14020 20 265×162 0,6
TG14040 40 265×162 1,3
TG14065 65 265×162 2,1

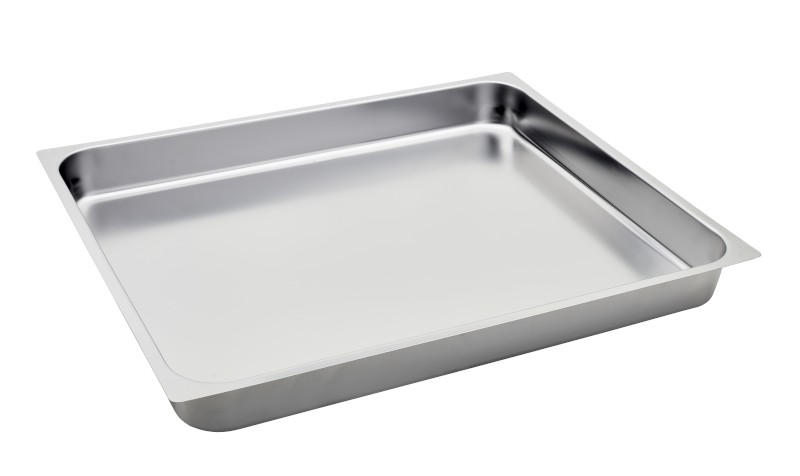

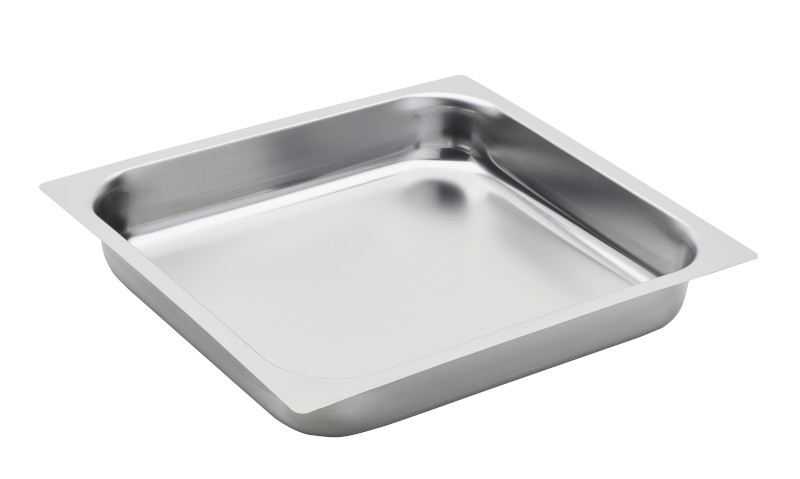

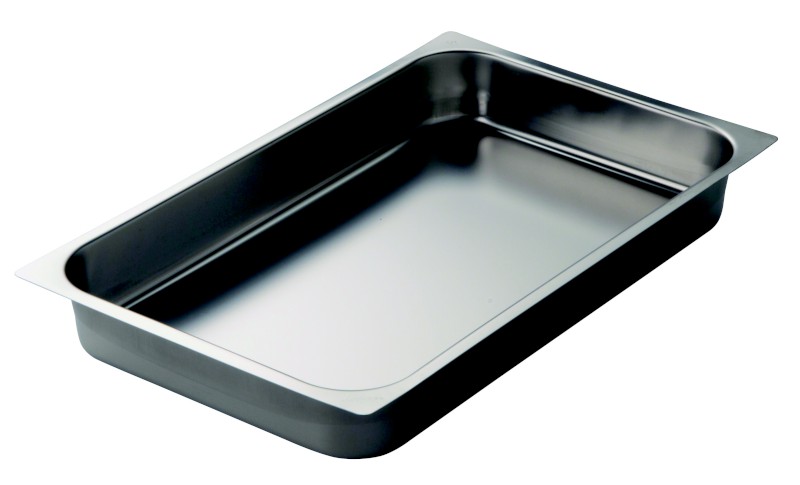

Baking containers with flat edge

MOD. 2/1

Code H (mm) ext. dimens. (mm) cap. lt.
TL21020 20 650×530 6,2
TL21040 40 650×530 12,4
TL21065 65 650×530 20,2

MOD. 1/1

Code H (mm) ext. dimens. (mm) cap. lt.
TL11010 10 530×325 1,5

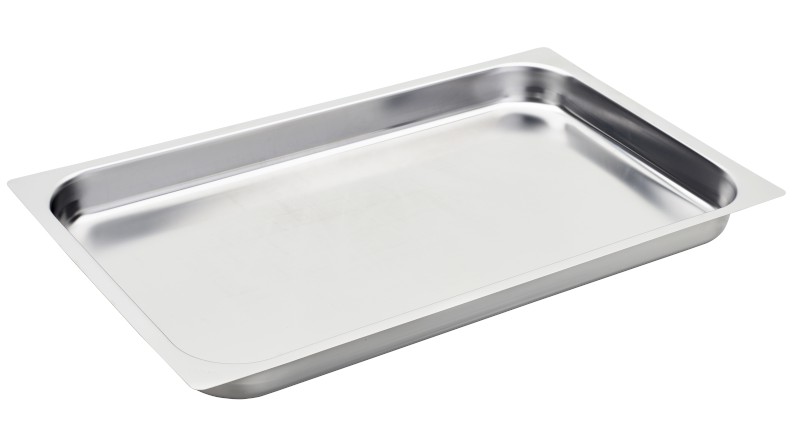

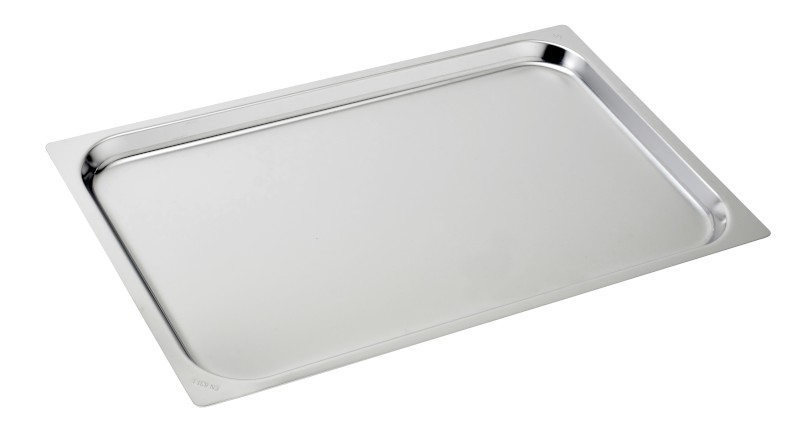

TL11020 20 530×325 3,0
TL11040 40 530×325 6,0
TL11065 65 530×325 9,8

MOD. 2/3

Code H (mm) ext. dimens. (mm) cap. lt.
TL23020 20 354×325 2,0
TL23040 40 354×325 3,9
TL23065 65 354×325 6,4

MOD. 1/2

Code H (mm) ext. dimens. (mm) cap. lt.
TL12020 20 325×265 1,4
TL12040 40 325×265 2,9
TL12065 65 325×265 4,7

MOD. 1/4

Code H (mm) ext. dimens. (mm) cap. lt.
TL14020 20 265×162 0,6
TL14040 40 265×162 1,3
TL14065 65 265×162 2,1

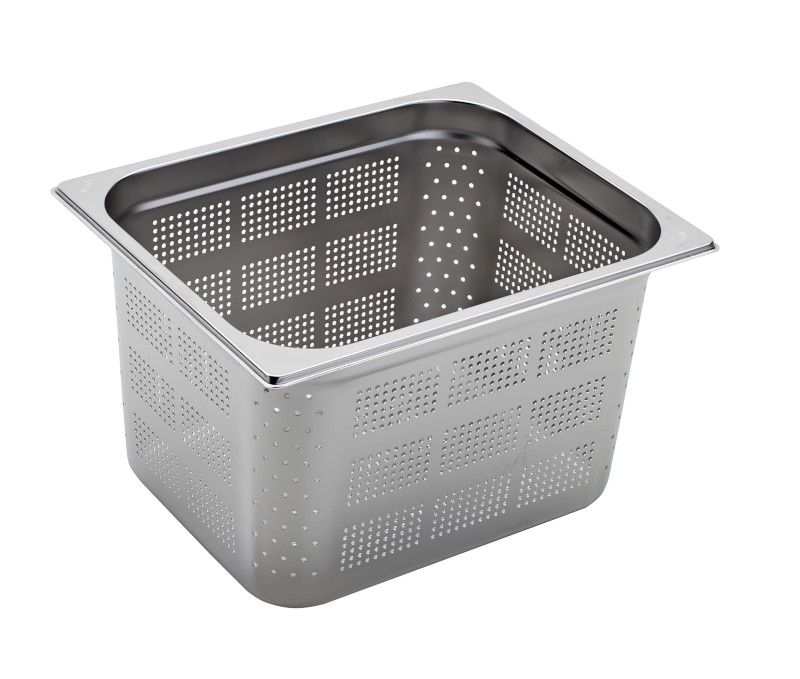

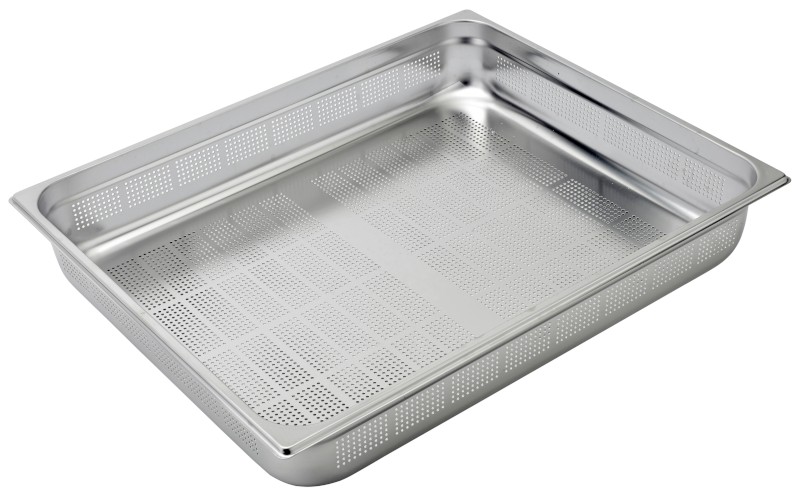

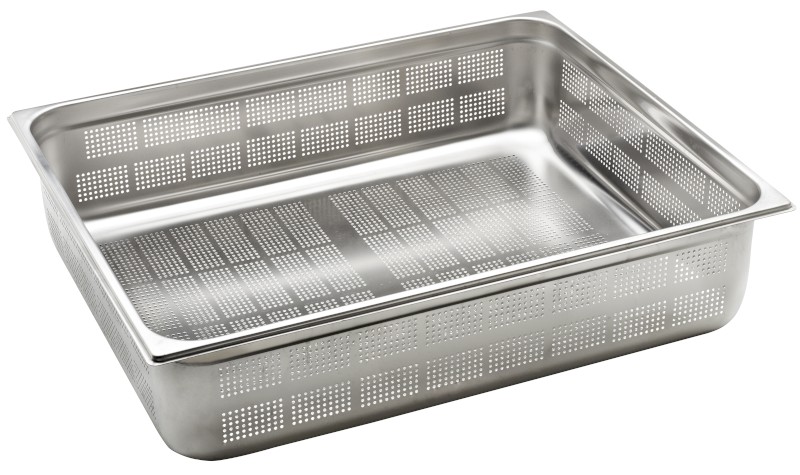

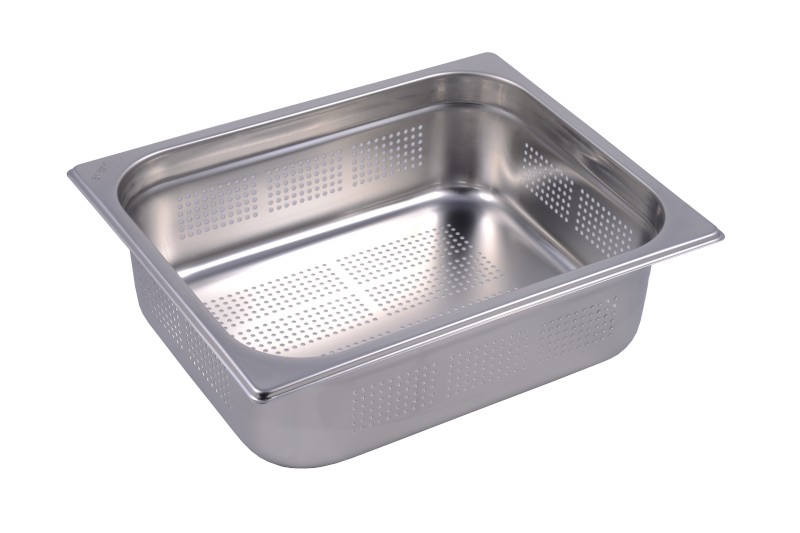

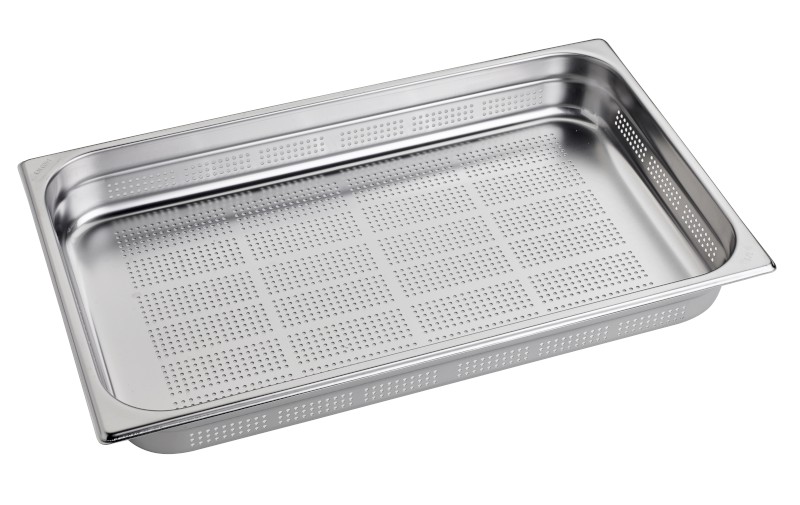

Aisi 304 perforated GN containers

MOD. 2/1

Code H (mm) ext. dimens. (mm) cap. lt.

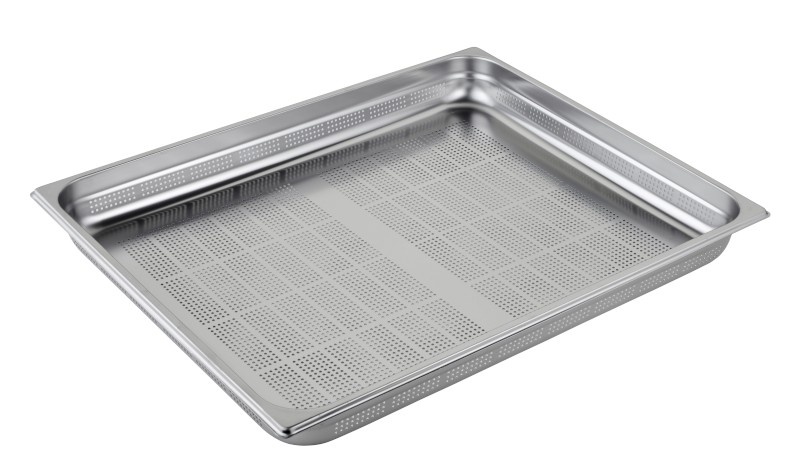

FT21065 65 650×530 20,2
FT21100 100 650×530 31,0
FT21150 150 650×530 46,5

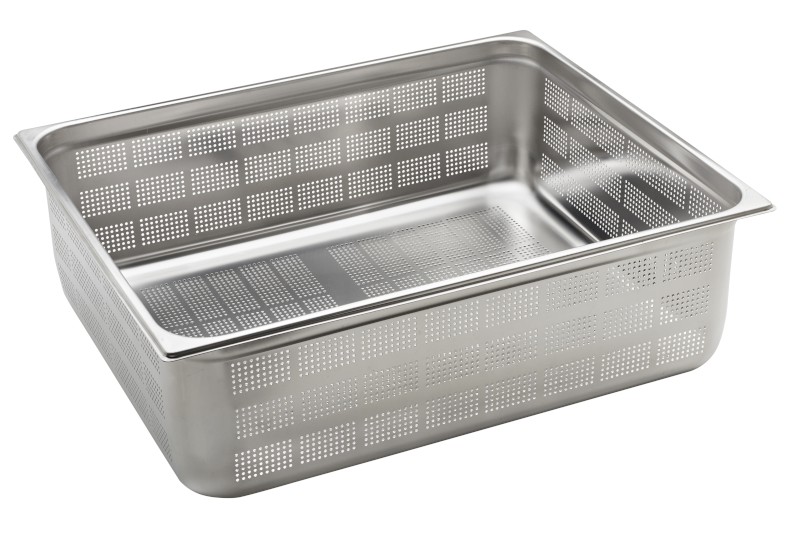

FT21200 200 650×530 62,0

MOD. 1/1

Code H (mm) ext. dimens. (mm) cap. lt.

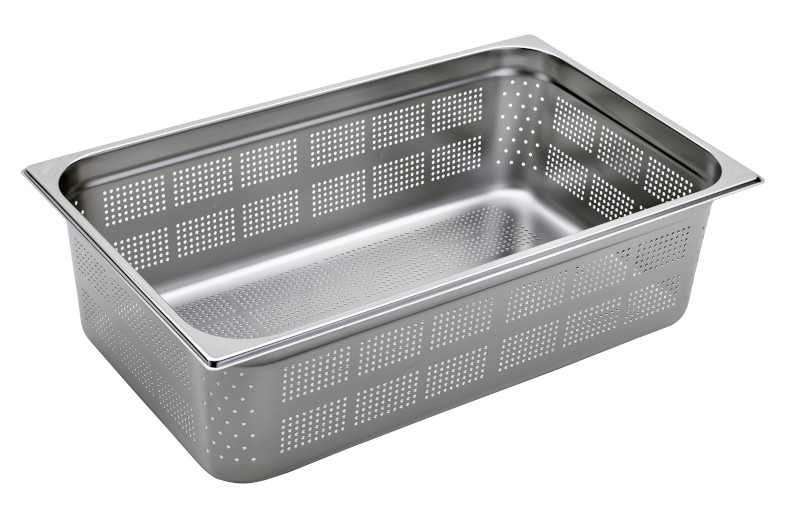

FT11065 65 530×325 20,2
FT11100 100 530×325 31,0
FT11150 150 530×325 46,5
FT11200 200 530×325 62,0
FT11055 55 530×325 62,0

MOD. 2/3

Code H (mm) ext. dimens. (mm) cap. lt.
FT23065 65 354×325 6,4
FT23100 100 354×325 9,9
FT23150 150 354×325 14,8
FT23200 200 354×325 19,7

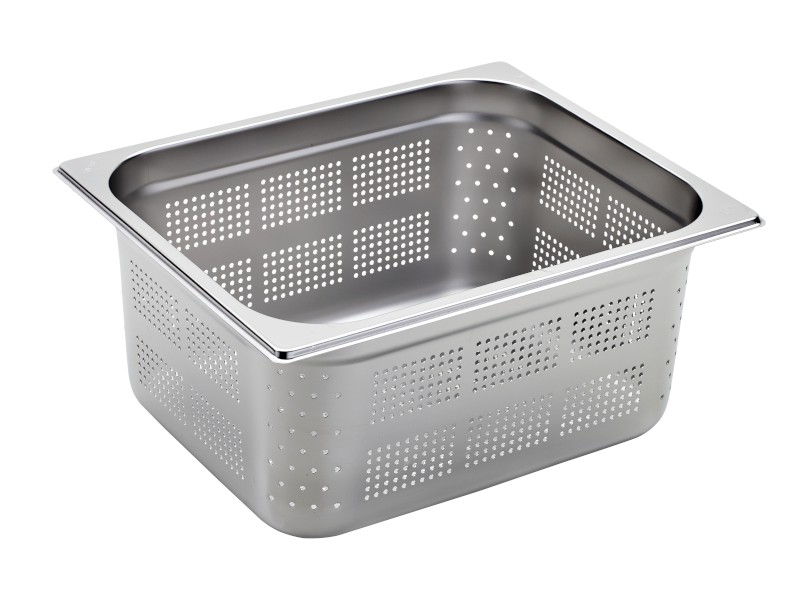

MOD. 1/2

Code H (mm) ext. dimens. (mm) cap. lt.

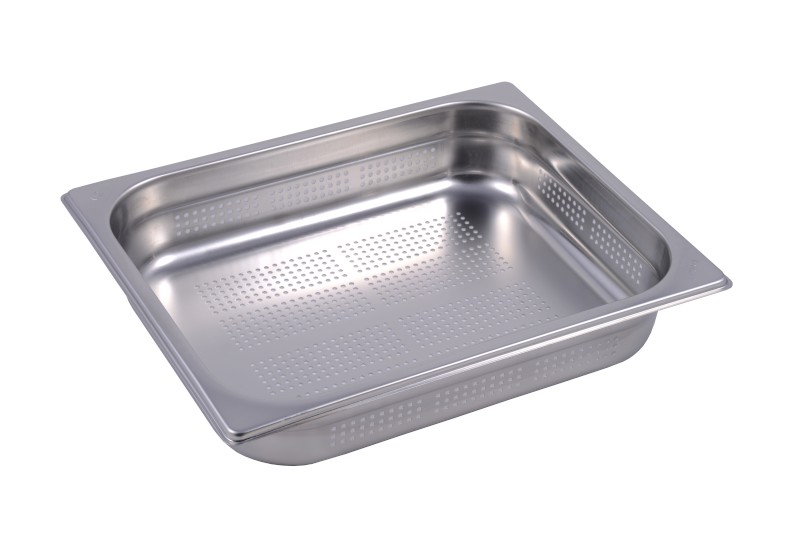

FT12065 65 325×265 4,7
FT12100 100 325×265 7,2
FT12150 150 325×265 10,8
FT12200 200 325×265 14,4

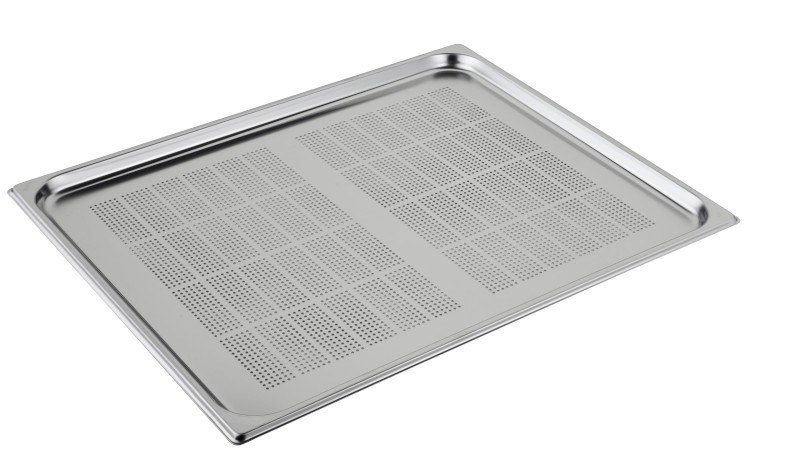

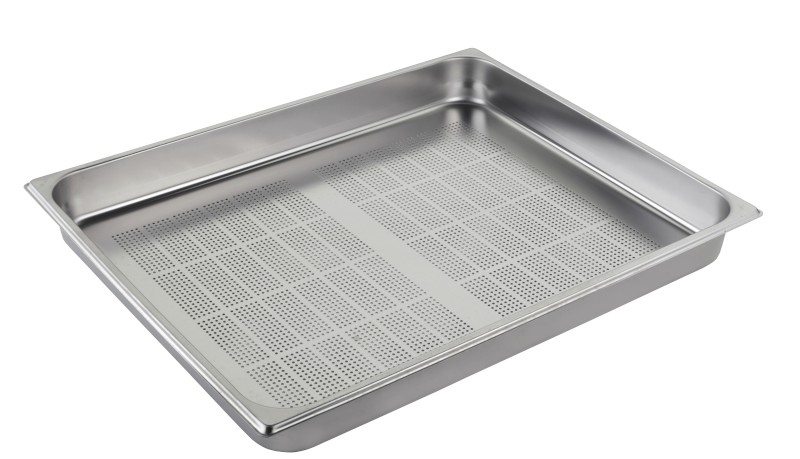

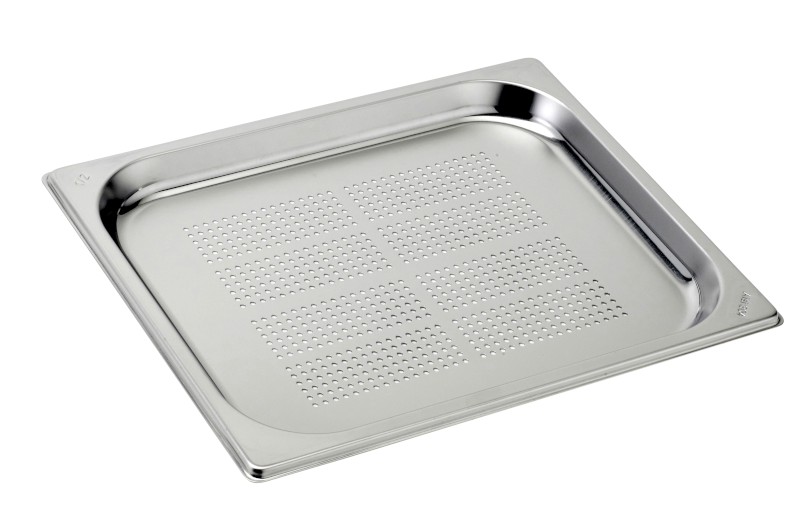

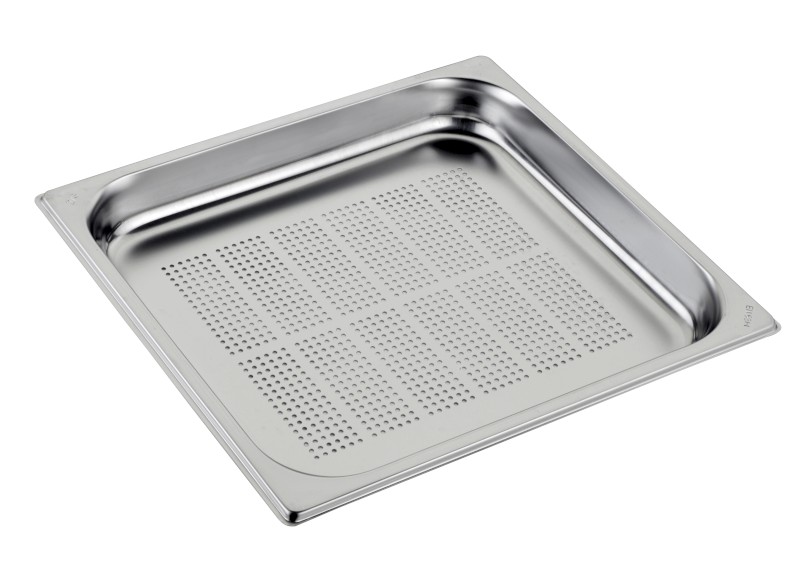

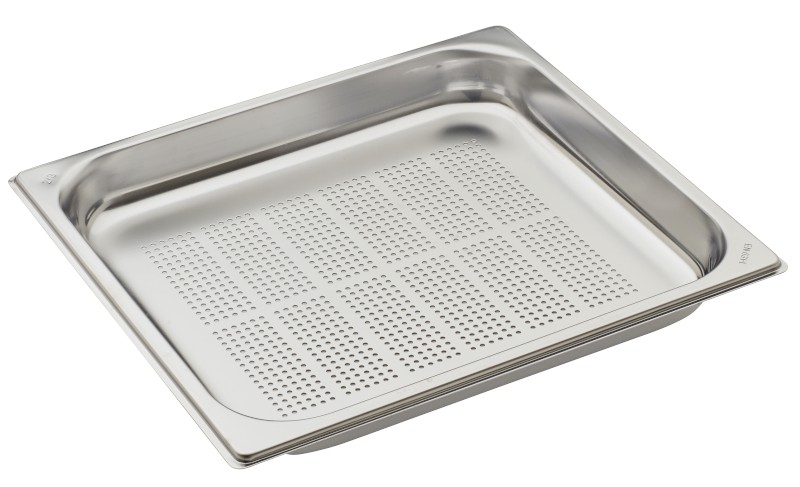

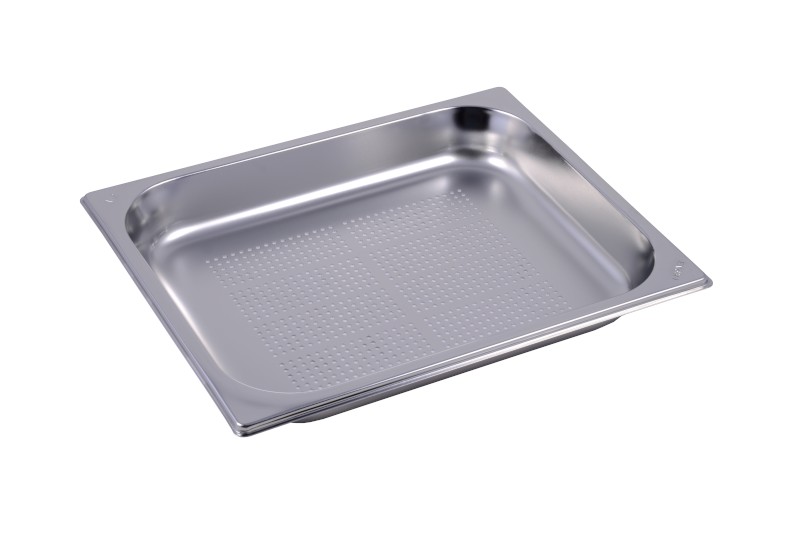

Base perforated GN containers

MOD. 2/1

Code H (mm) ext. dimens. (mm) cap. lt.
FF21020 20 650×530 6,2
FF21040 40 650×530 12,4
FF21065 65 650×530 20,2

MOD. 1/1

Code H (mm) ext. dimens. (mm) cap. lt.

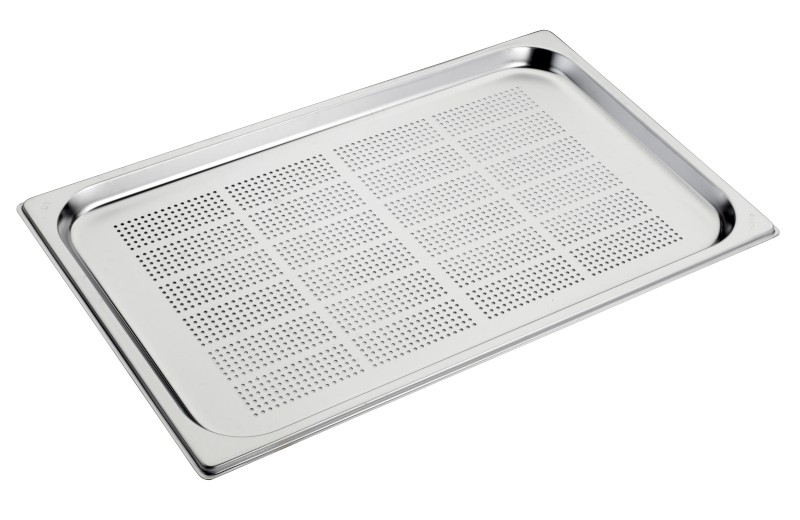

FF11020 20 530×325 3,0

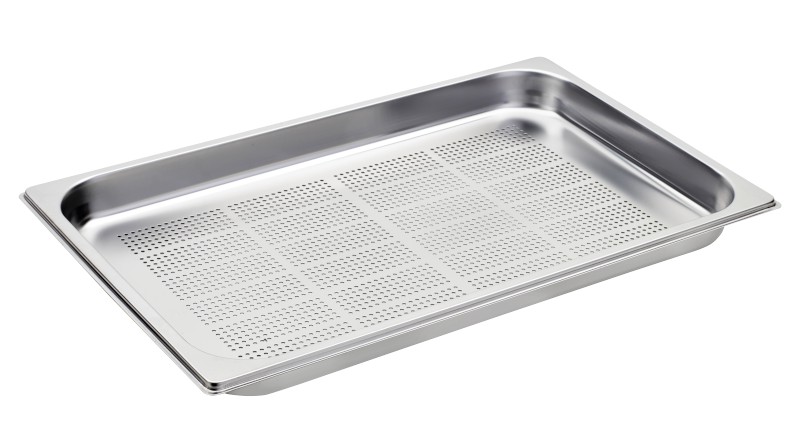

FF11040 40 530×325 6,0

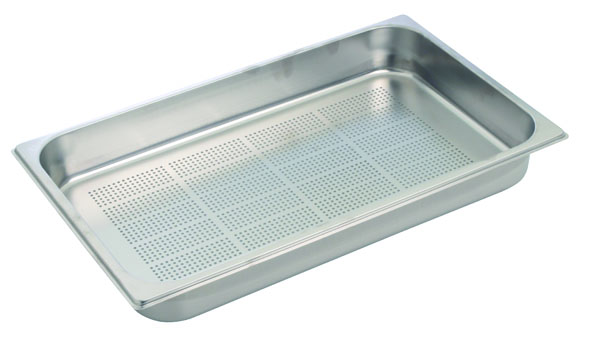

FF11065 65 530×325 9,8

MOD. 2/3

Code H (mm) ext. dimens. (mm) cap. lt.
FF23020 20 354×325 2,0
FF23040 40 354×325 3,9

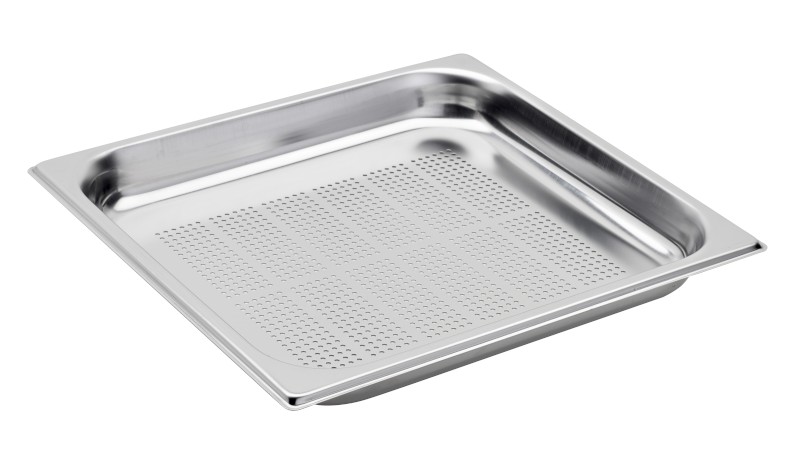

FF23065 65 354×325 6,4

MOD. 1/2

Code H (mm) ext. dimens. (mm) cap. lt.
FF12020 20 325×265 1,4
FF12040 40 325×265 2,9

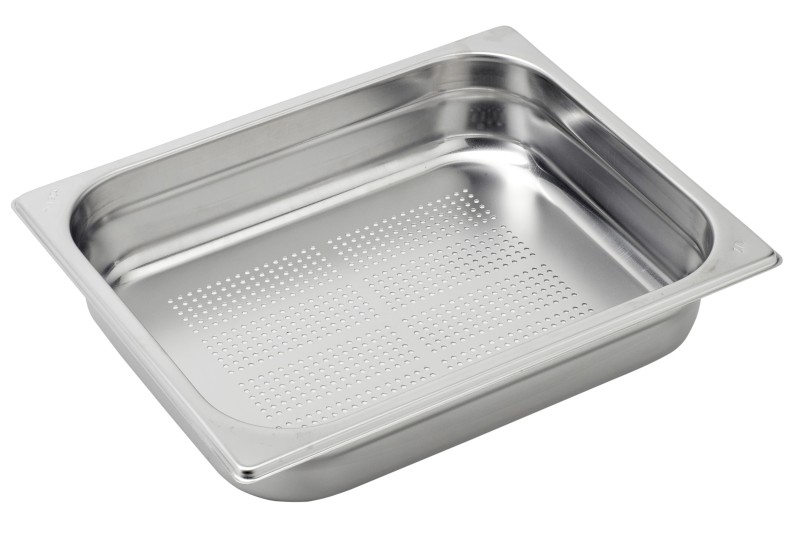

FF12065 65 325×265 4,7

MOD. 1/3

Code H (mm) ext. dimens. (mm) cap. lt.
FF13020 20 325×176 0,9
FF13040 40 325×176 1,8
FF13065 65 325×176 2,9

SST handles and separator bars

SST lids

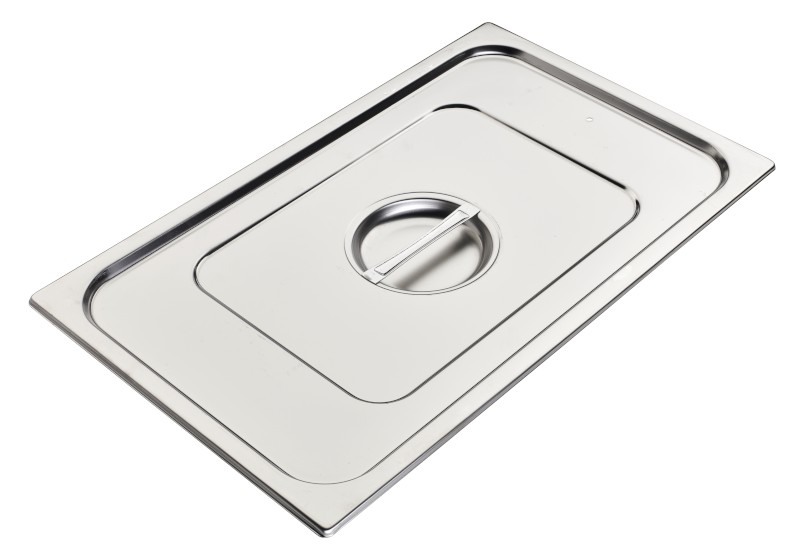

Aisi 304 SST lids

Code Model ext. dimens. (mm)
C11 1/1 530×325

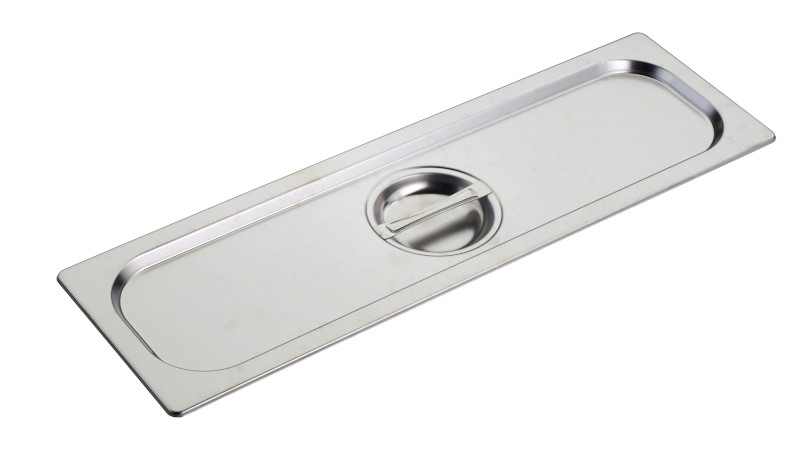

C24 2/4 530×162

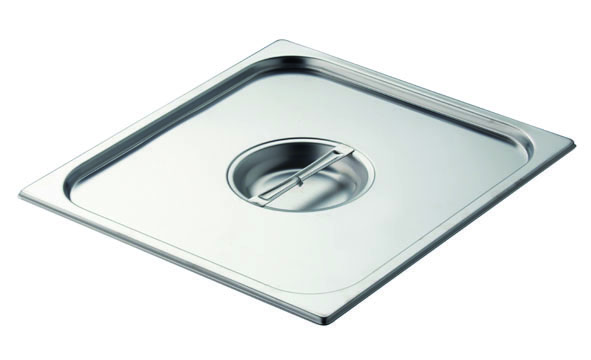

C23 2/3 354×325

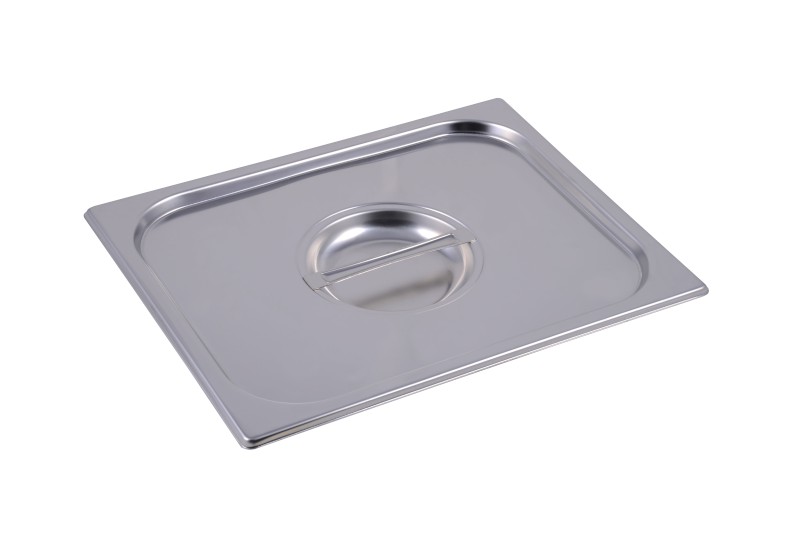

C12 1/2 325×265

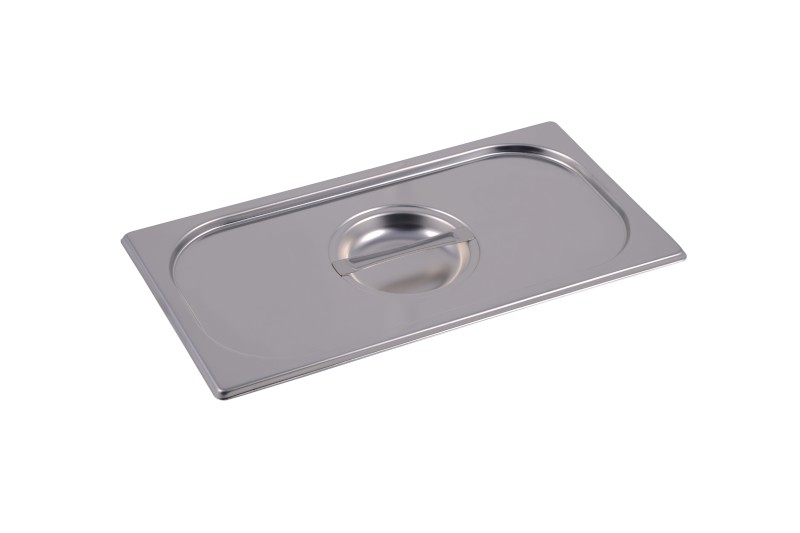

C13 1/3 325×176

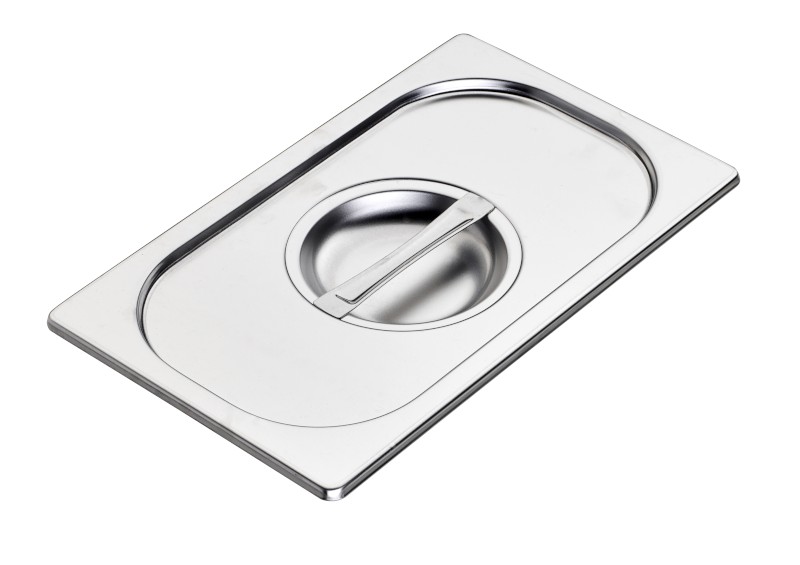

C14 1/4 265×162

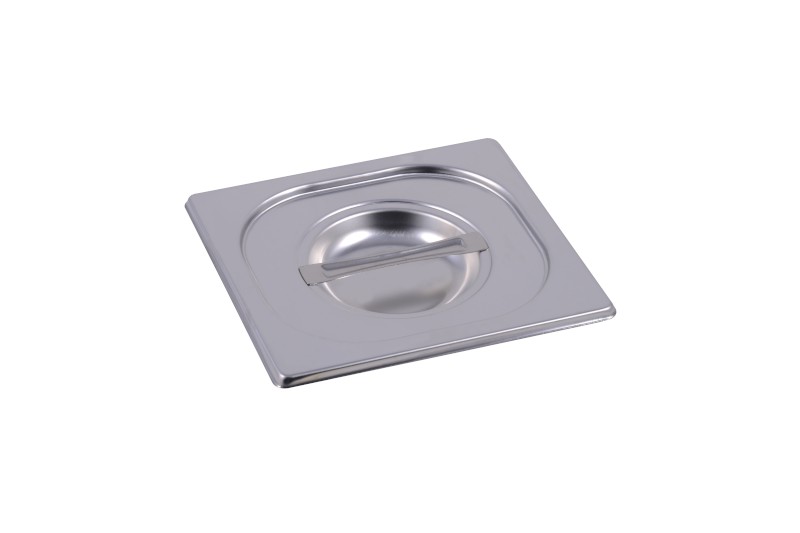

C16 1/6 176×162

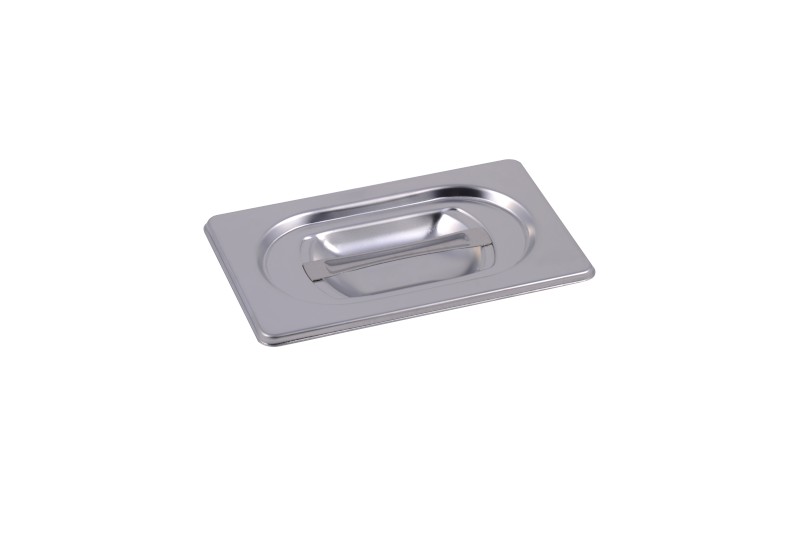

C19 1/9 176×108

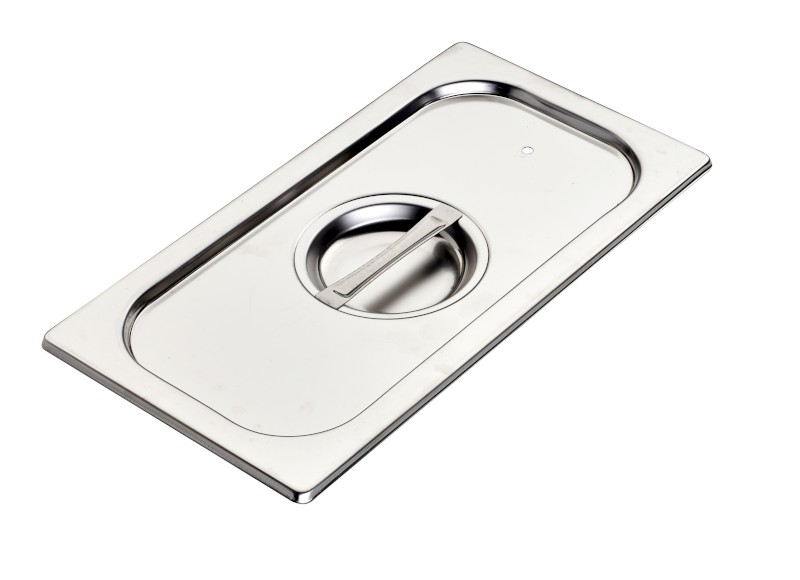

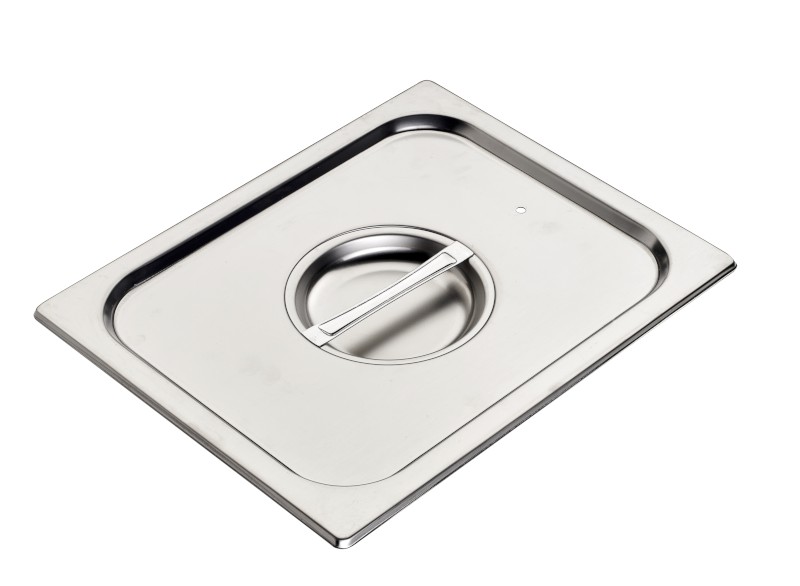

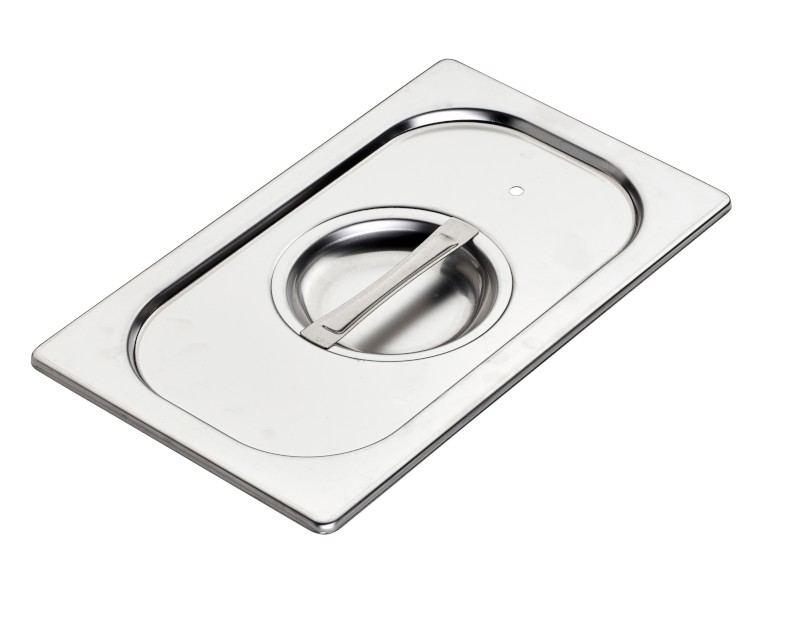

SST lids with silicone gasket

Code Model ext. dimens. (mm)

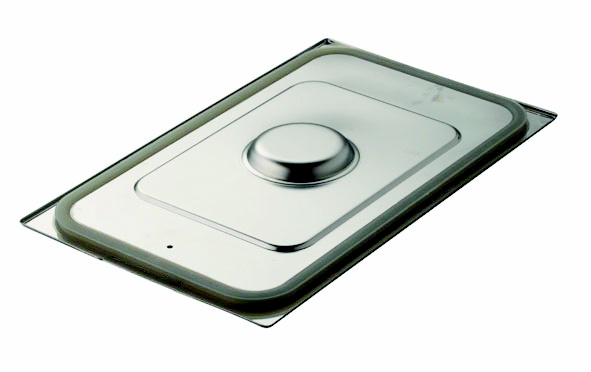

C11SI 1/1 530×325
C23SI 2/3 354×325
C12SI 1/2 325×265
C13SI 1/3 325×176
C14SI 1/4 265×162

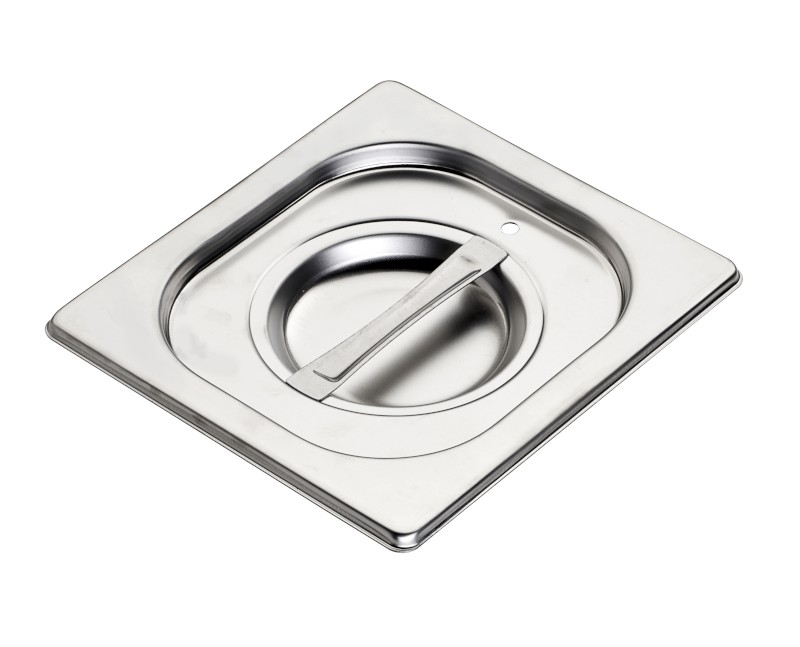

C16SI 1/6 176×162
C19SI 1/9 176×108

Chill system cook SST lids

Code Model ext. dimens. (mm)
C11C 1/1 530×325
C12C 1/2 325×265
C13C 1/3 325×176

Silicone lids with umbrella

Code Model ext. dimens. (mm)
C11SIS 1/1 530×325
C12SIS 1/2 325×265
C13SIS 1/3 325×176
C14SIS 1/4 265×162

Lids with gasket and notched handles

Code Model ext. dimens. (mm)

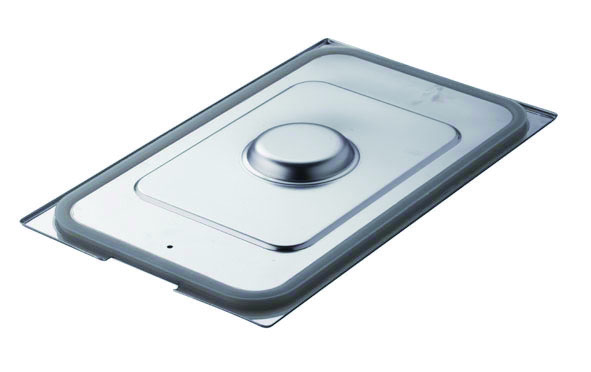

C11SM 1/1 530×325
C23SM 2/3 354×325
C12SM 1/2 325×265
C13SM 1/3 325×176
C14SM 1/4 265×162
C16SM 1/6 176×162

SILICON LIDS TECHNICAL FEATURES

Resistant gasket up to 170°C; it is recommended to use them at lower temperatures for a better endurance over time.

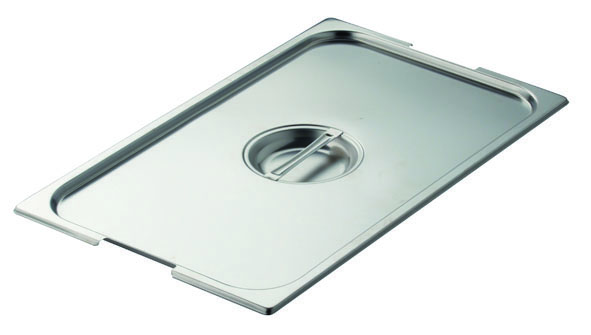

Lids with split for handles

Code Model ext. dimens. (mm)
C11MA 1/1 530×325
C12MA 1/2 530×162
C13MA 1/3 325×176
C14MA 1/4 265×162
C16MA 1/6 176×162
C23MA 2/3 354×325
C24MA 2/4 530×162

Lids notched for spoon

Code Model ext. dimens. (mm)
C11ME 1/1 530×325
C12ME 1/2 530×162

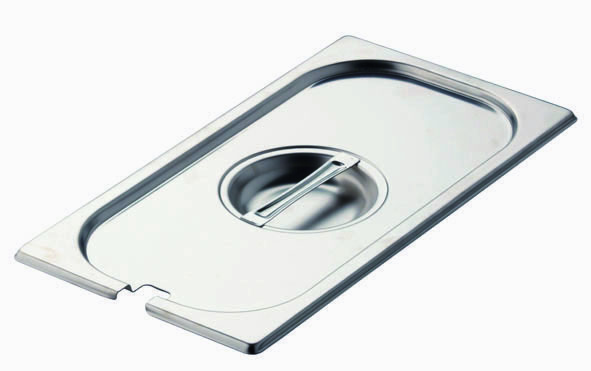

C13ME 1/3 325×176
C14ME 1/4 265×162
C16ME 1/6 176×162
C19ME 1/9 176×108
C23ME 2/3 354×325
C24ME 2/4 530×162

Inox lids

Lids notched for spoon and handles

Code Model ext. dimens. (mm)
C11MM 1/1 530×325

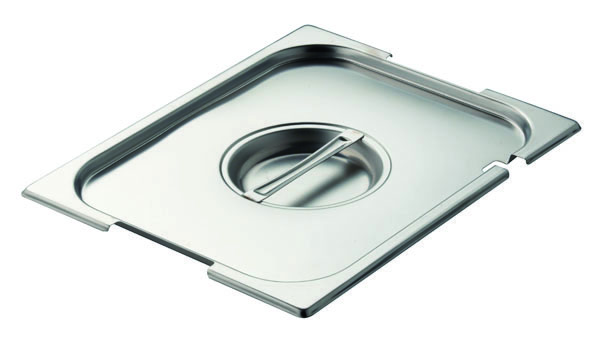

C12MM 1/2 530×162
C13MM 1/3 325×176
C14MM 1/4 265×162
C16MM 1/6 176×162
C23MM 2/3 354×325
C24MM 2/4 530×162

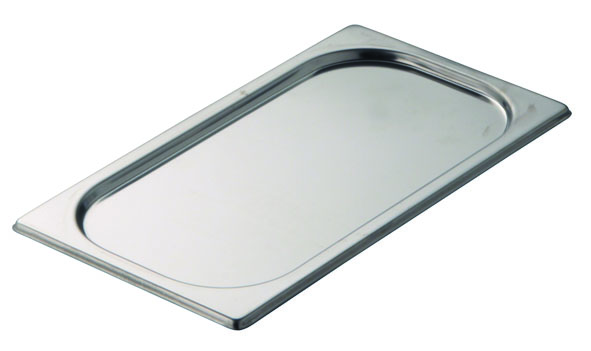

Flat lids

Code Model ext. dimens. (mm)

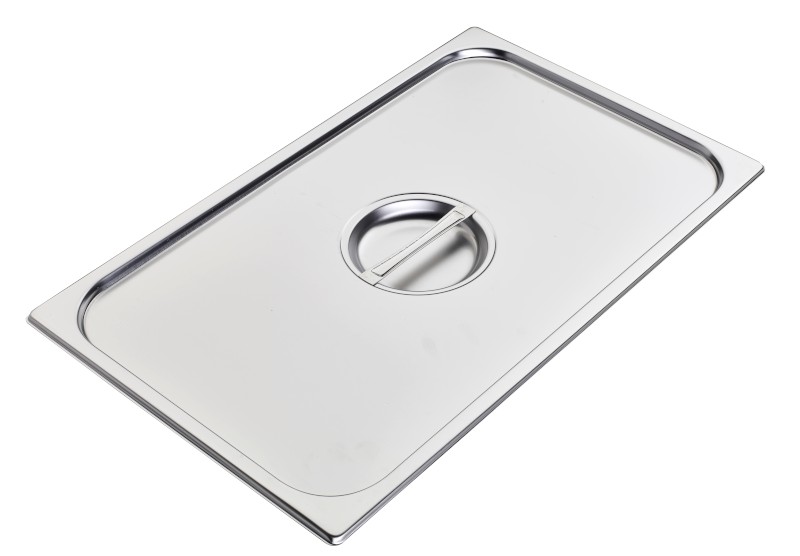

C11P 1/1 530×325
C12P 1/2 530×162
C13P 1/3 325×176

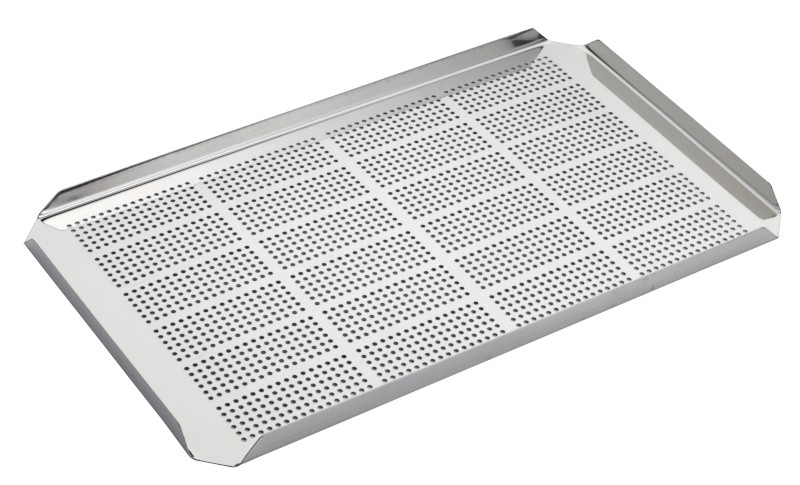

Insert grids

Code Model ext. dimens. (mm)
FFF11 1/1 520×315
FFF12 1/2 520×152
FFF13 1/3 315×166
FFF23 2/3 344×315

Wire grids

Code Description
GG234MM 2/3 int. 4mm, rinf. 5,8mm
GG112MM 1/1 int. 2mm, rinf. 5,8mm
GG113MM 1/1 int. 2,8mm, rinf. 5,8mm
GG212.4MM 2/1 int. 2,4mm, rinf.5,8mm

Containers for fryer without min/max level and hook

Code H in mm ext. dimens. (mm) cap. lt.
F23200 200 345×320 19,7
F12150 150 320×259 10,8
F12200 200 320×259 14,4
F13150 150 320×172 6,8
F13200 200 320×172 9,0

Bain-Marie container

Code H in mm ext. dimens. (mm)
11163 163 530×325

Gastronorm enamelled trays

These Gastronorm trays are not only ideal for cooking, with their high thermal conductivity, but also for serving food to the table, thanks to their elegant, glossy black appearance and their smooth and refined surface.
The enamel, applied at 800°C, sticks perfectly to the metal, bringing it to a solid thickness of 1.2mm. This makes the product robust and resistant, both against impacts and heat surges. The surface is resistant to scratches and things slide easily on it, which allows a user to work on it without fear e.g. dividing food into portions with fork and knife, and allows one to clean it with ease, both manually or in the dishwasher.
Rigorously tested, they’re harmless even after prolonged contact with aggressive food, thermal shocks and the many impacts that are common in the everyday kitchen life.
Regularly available in the most important gastronorm sizes (1/1 height 20, 40 and 65mm; 1/2 height 40 and 65mm; 1/3 height 40 and 65mm), they can be also produced in other sizes on request.

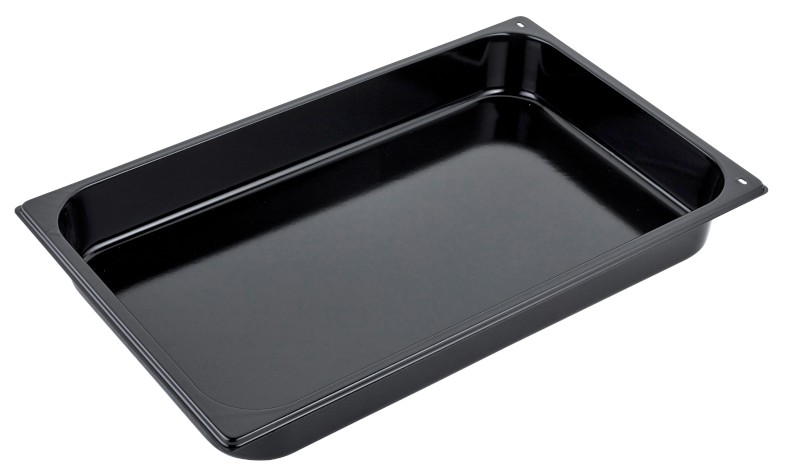

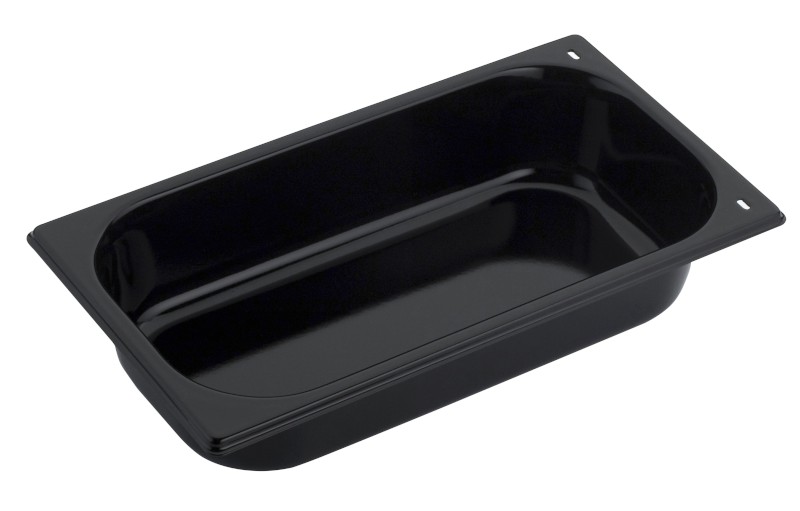

Gastronorm nonstick enamelled trays

Code H in mm ext. dimens. (mm) cap. lt.

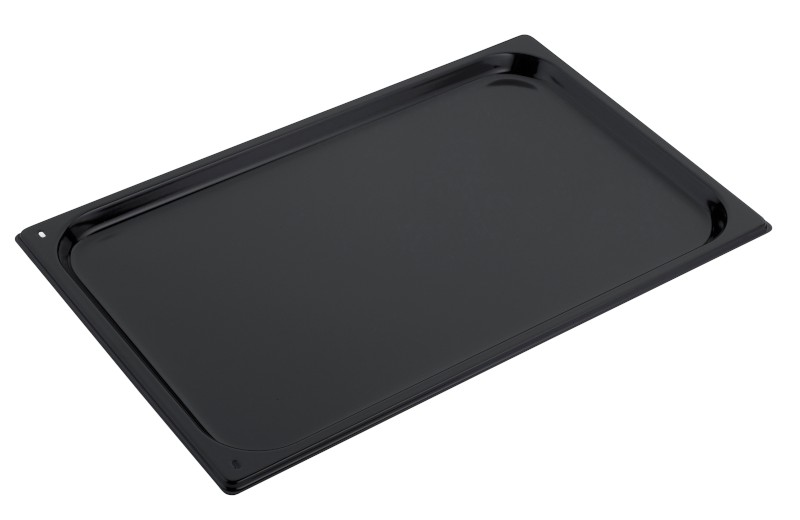

TS11020 20 530×325 3,0

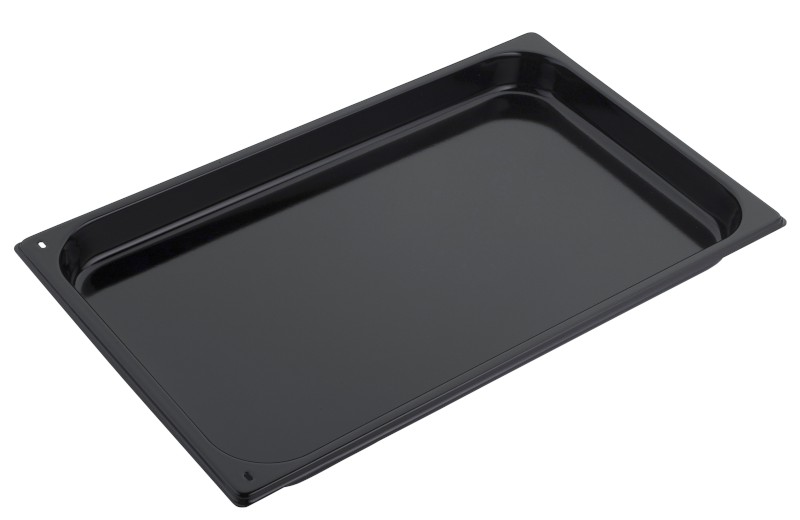

TS11040 40 530×325 6,0
TS11065 65 530×325 9,8
TS12040 (mod. 1/2) 40 325×265 2,9

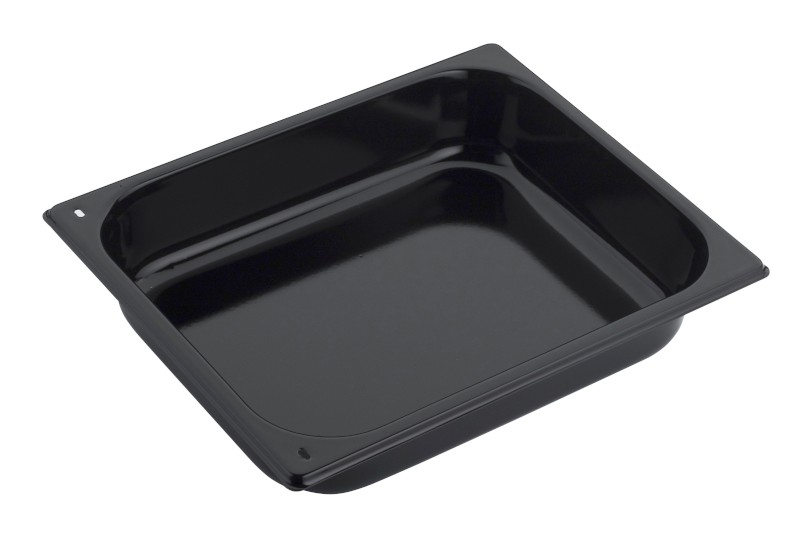

TS12065 (mod. 1/2) 65 325×265 4,7
TS13065 (mod. 1/3) 65 325×176 2,9

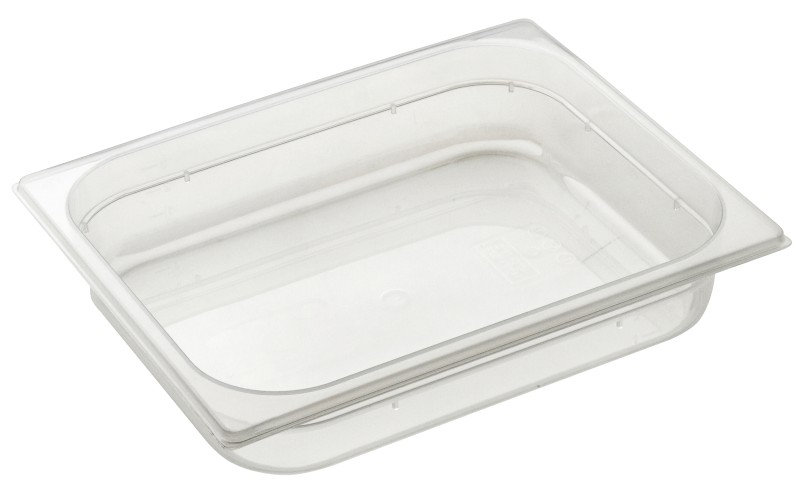

Polypropylene Gastronorm containers

Of high quality, the Gastronorm polypropylene containers are especially apt for preserving food at excellent value for money.
The large thickness (2mm and more) make them robust and resistant to impacts. Ideal to stock and “catalogue” food: semitransparent, it’s possible to recognize the content, while the air-tight lids keep everything well sealed. On top of that, lids are available in various colours (blue, red, yellow, green…) in order to catalogue food accordingly with HACCP norms. The product comes with levels on the sides to measure the liter content and is rounded off with a highly competitive price.
Our polypropylene GN containers have a good resistance to high temperatures (we recommend to use them from -40°C to +70°C to preserve them over time); they’re also certified to be used in the microwave, which means they can be used to store and present the food in one go. Completely free of Bisphenol A , thanks to their raw material purity and high quality the Gastronorm polypropylene containers are odourless, flavourless and pass food contact tests with flying colours, including latest indications from EFSA (European Food Safety Authority). Dishwasher safe, the tight but smooth radius improves capacity and makes them easy to clean.

Stackable polypropylene gastronorm containers

Mod. 1/1

Code H in mm ext. dimens. (mm) cap. lt.
PR11065 65 530X325 9,8
PR11100 100 530X325 15,0
PR11150 150 530X325 22,5
PR11200 200 530X325 30,0

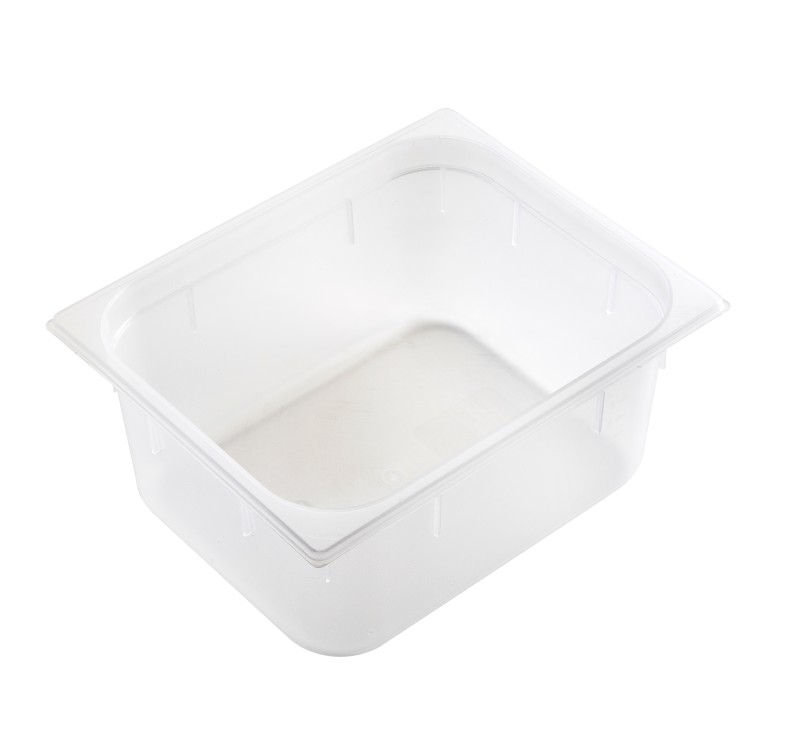

Mod. 1/2

Code H in mm ext. dimens. (mm) cap. lt.
PR12065 65 325X265 4,7
PR12100 100 325X265 7,2

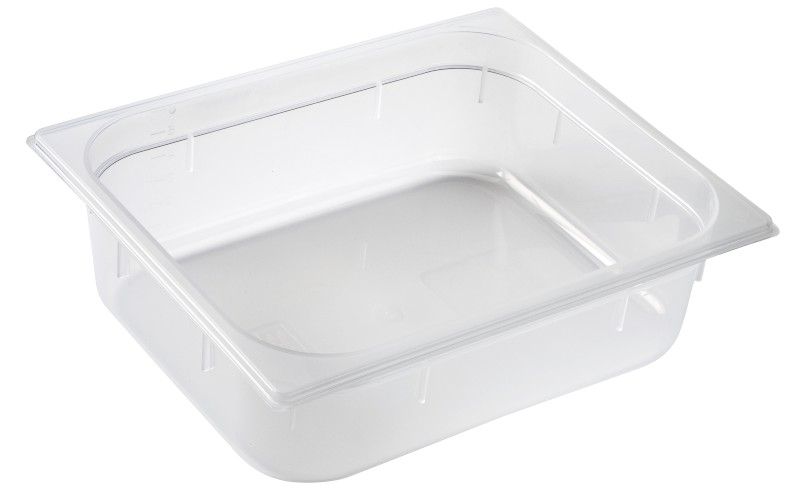

PR12150 150 325X265 10,8
PR12200 200 325X265 14,4

Mod. 2/1

Code H in mm ext. dimens. (mm) cap. lt.
PR21150 150 650×530 46,5
PR21200 200 650×530 62,0

Stackable polypropylene gastronorm containers

Mod. 1/3

Code H in mm ext. dimens. (mm) cap. lt.

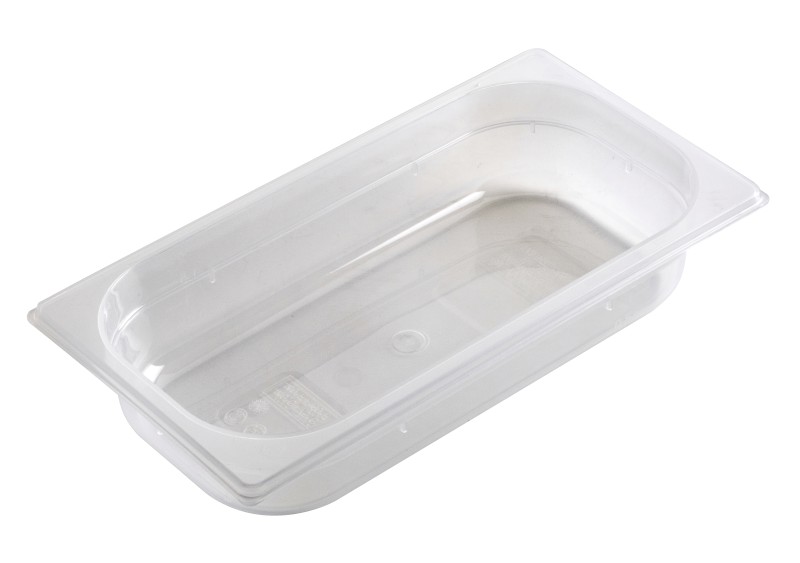

PR13065 65 325X176 2,9
PR13100 100 325X176 4,5

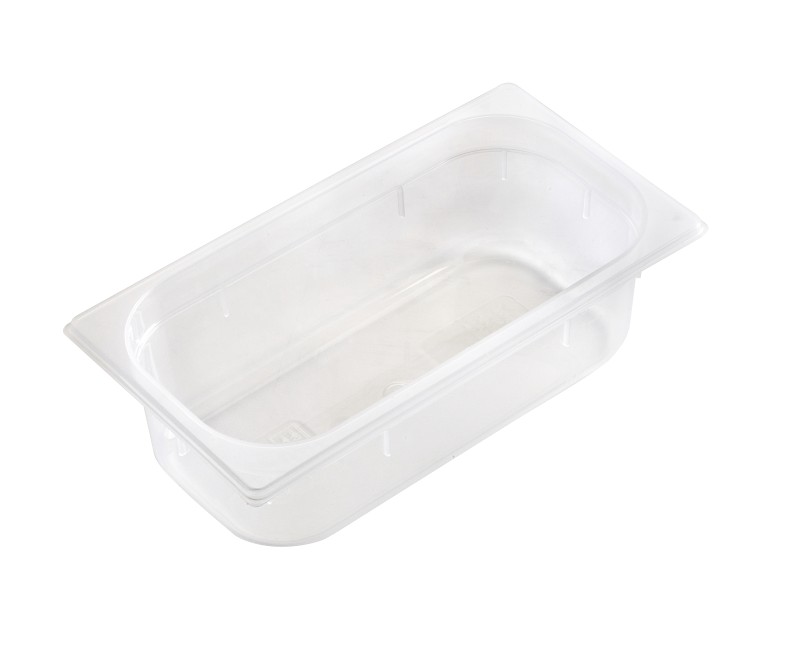

PR13150 150 325X176 6,8
PR13200 200 325X176 9,0

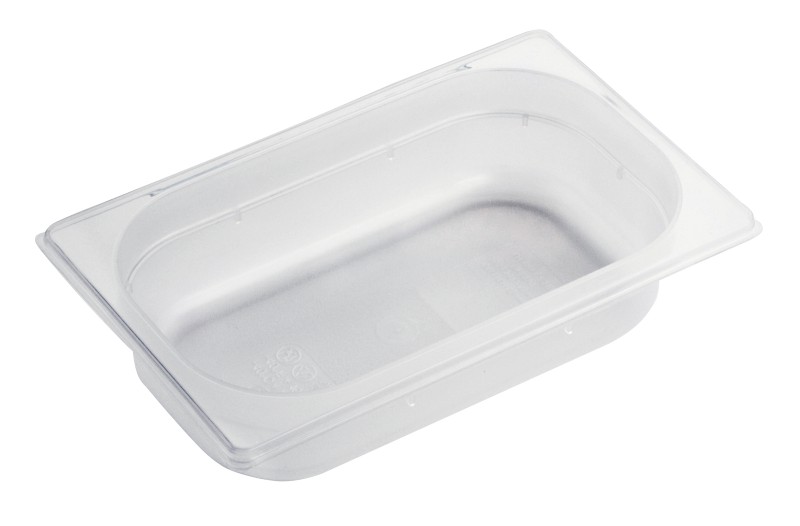

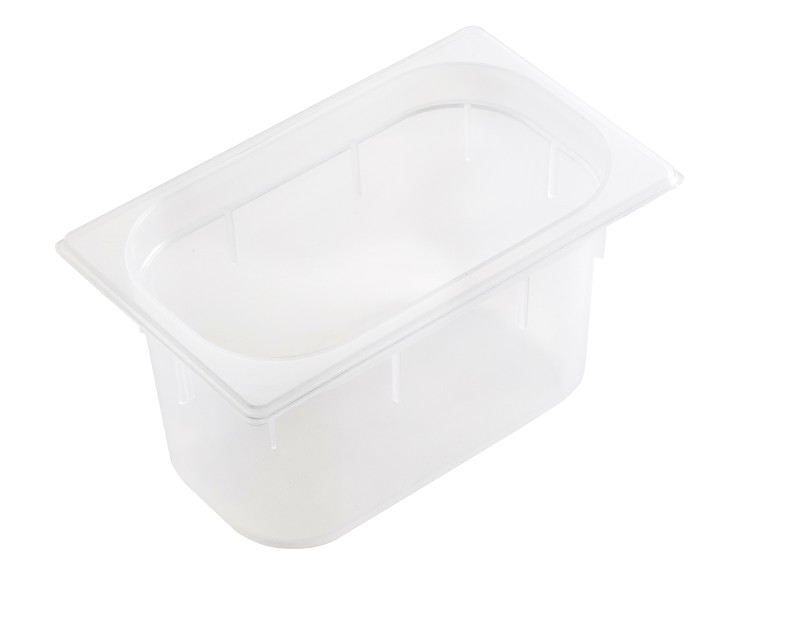

Mod. 1/4

Code H in mm ext. dimens. (mm) cap. lt.
PR14065 65 265X162 2,1

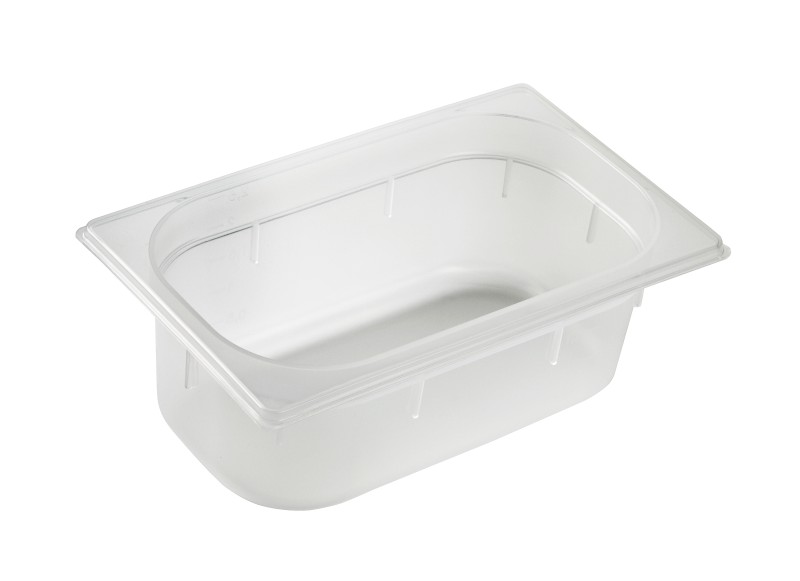

PR14100 100 265X162 3,2

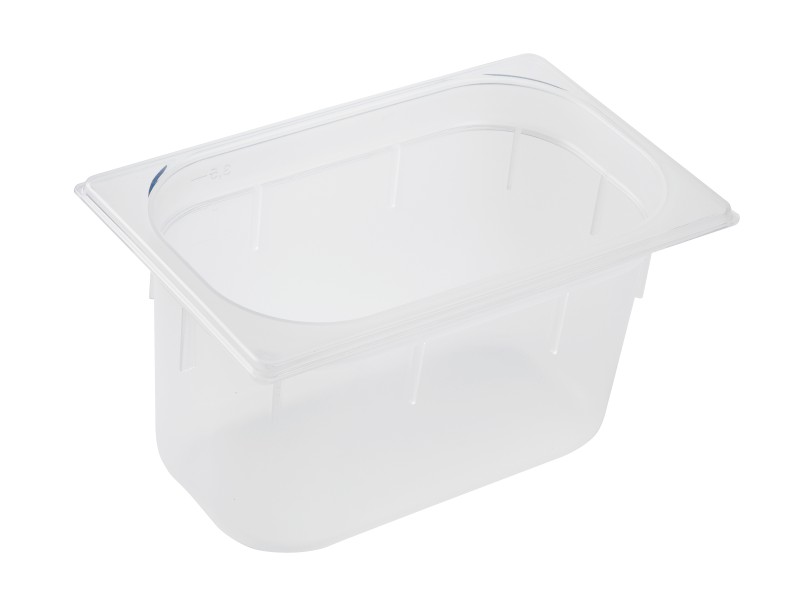

PR14150 150 265X162 4,9
PR14200 200 265X162 6,5

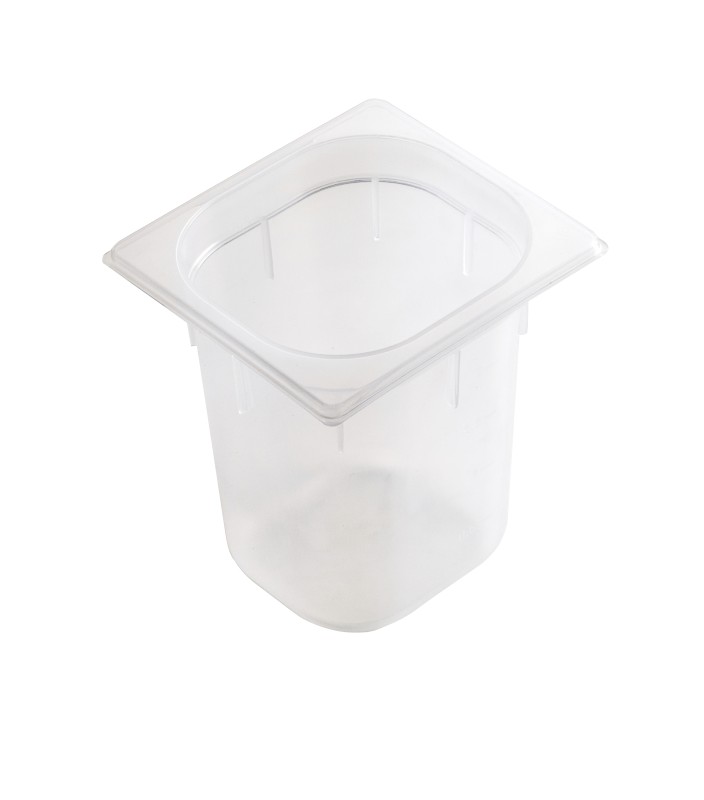

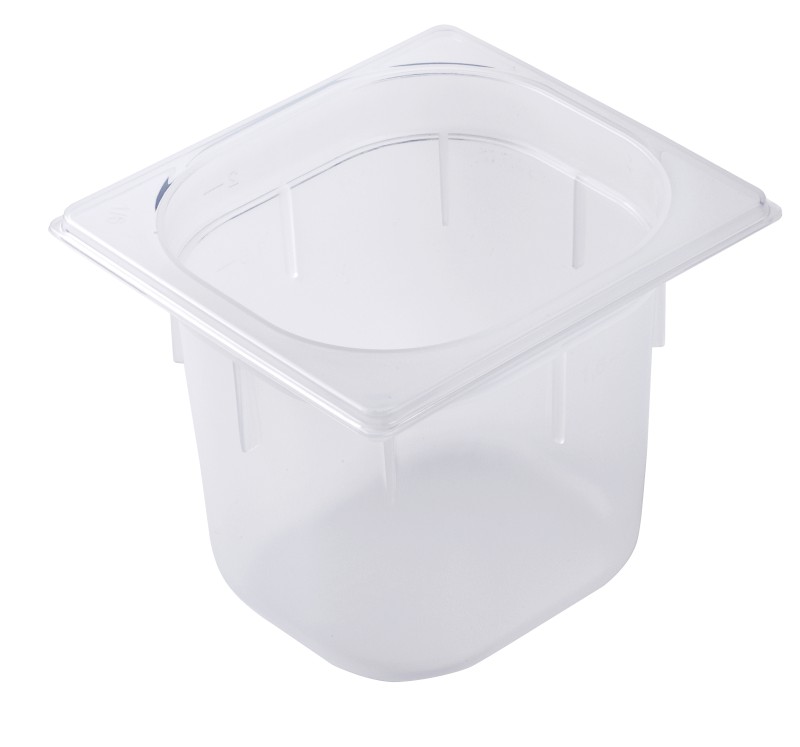

Mod. 1/6

Code H in mm ext. dimens. (mm) cap. lt.

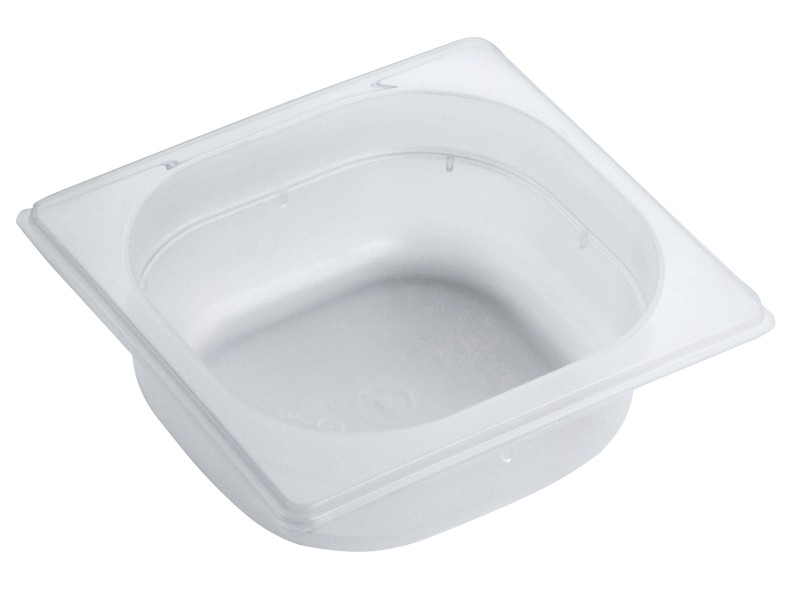

PR16065 65 176X162 1,4
PR16100 100 176X162 2,1
PR16150 150 176X162 3,2
PR16200 200 176X162 4,3

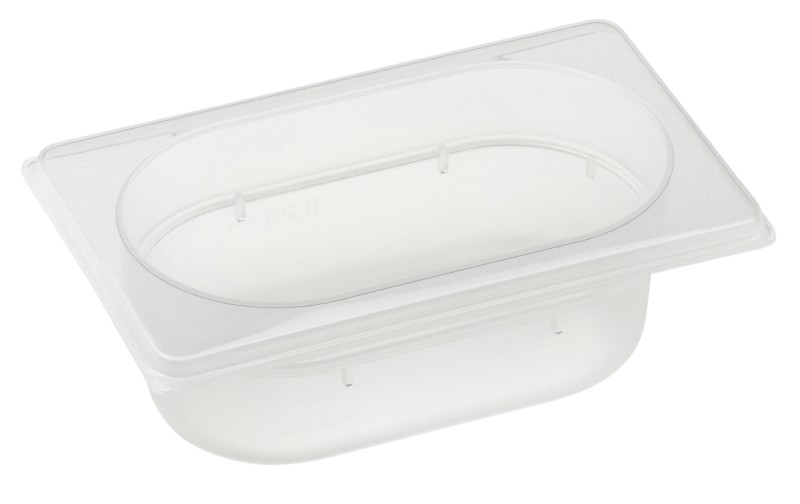

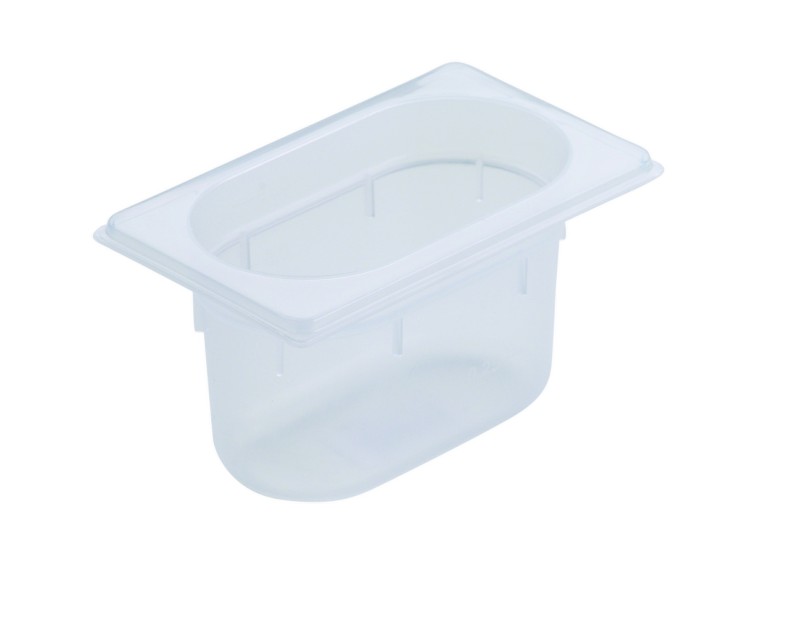

Mod. 1/9

Code H in mm ext. dimens. (mm) cap. lt.
PR19065 65 176X108 1,3
PR19100 100 176X108 0,8

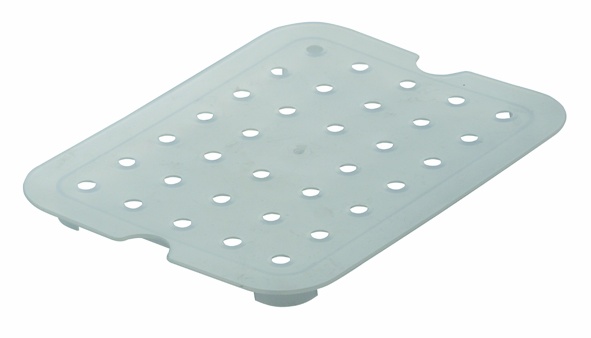

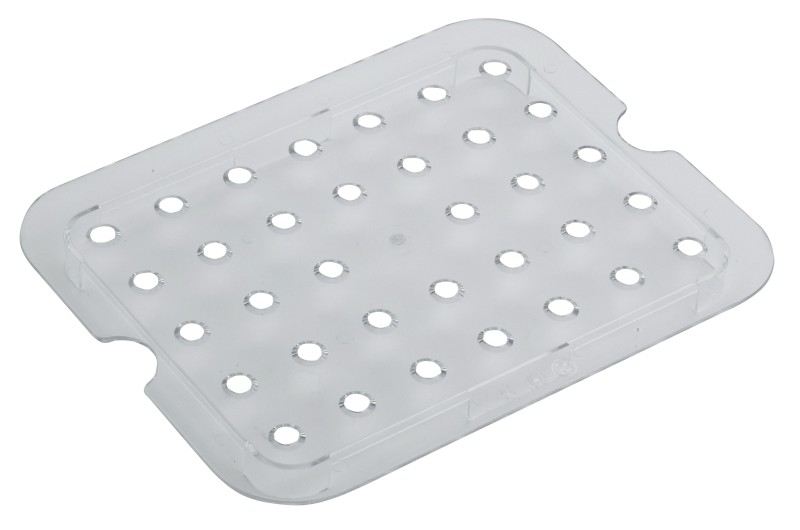

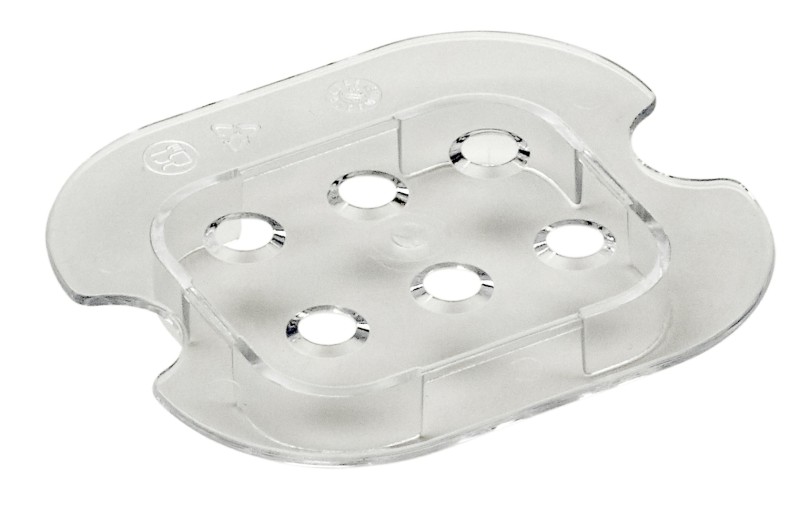

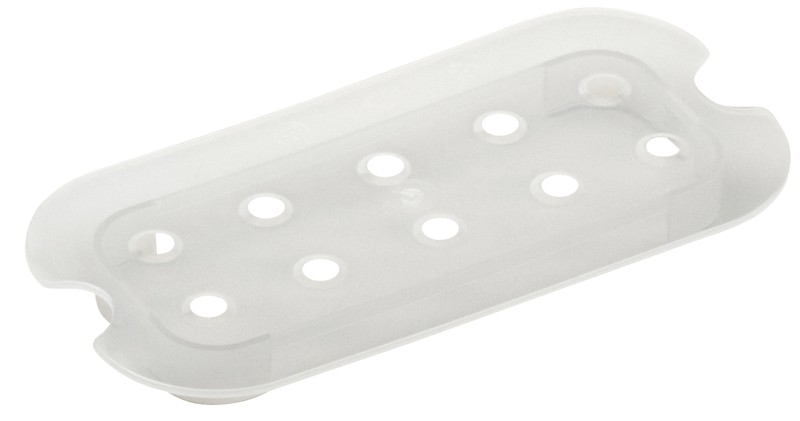

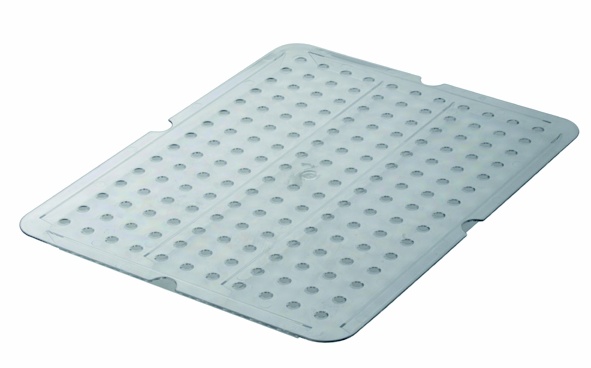

Polypropylene insert grids

Code H in mm ext. dimens. (mm)
PRFFF11 1/1 530X325

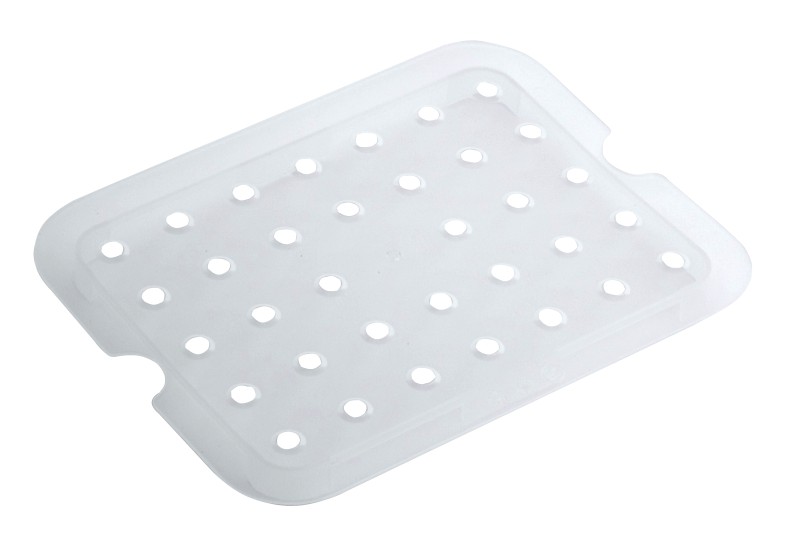

PRFFF12 1/2 325X265

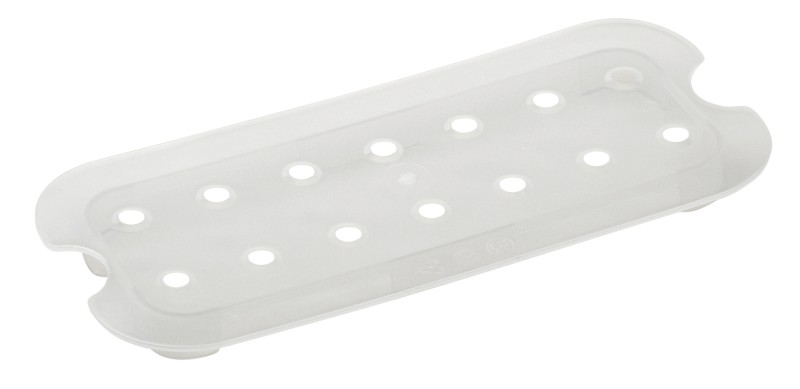

PRFFF13 1/3 325X176

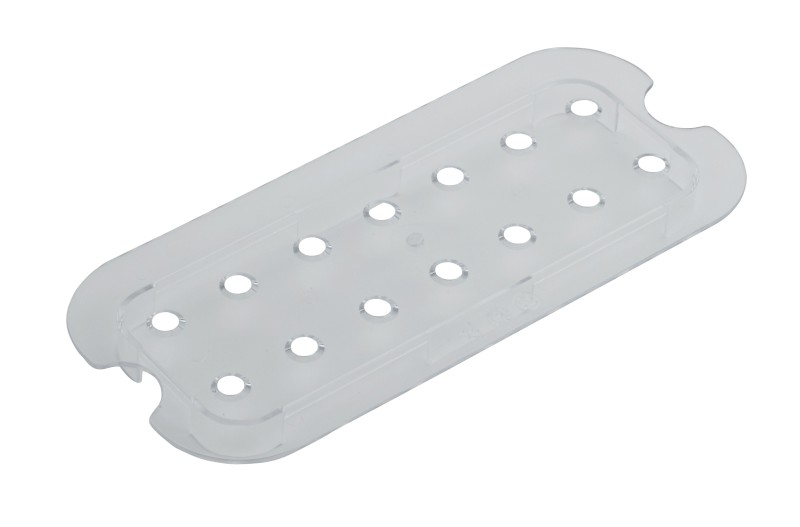

PRFFF14 1/4 265X162
PRFFF16 1/6 176X162

Polypropylene hermetic lids

Model Code H in mm Color
2/1 PRC21 2/1 Clear
1/1 PRC11 1/1 Blue
1/1 PRCRO11 1/1 Red
1/1 PRCGI11 1/1 Yellow
1/1 PRCVE11 1/1 Green
1/1 PRCBI11 1/1 White

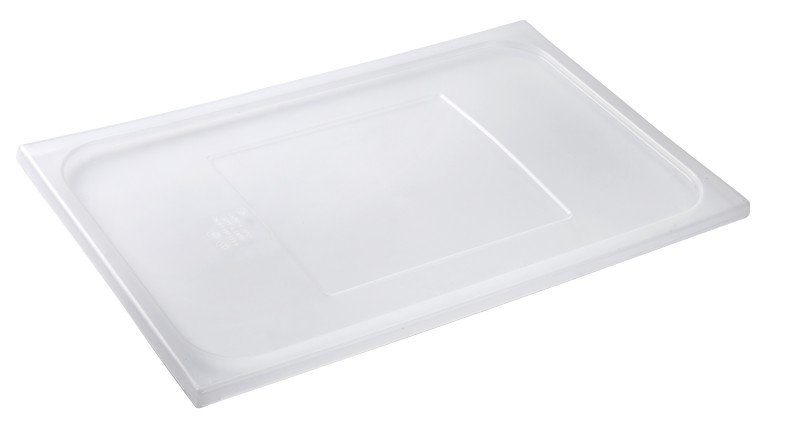

1/1 PRCTR11 1/1 Clear

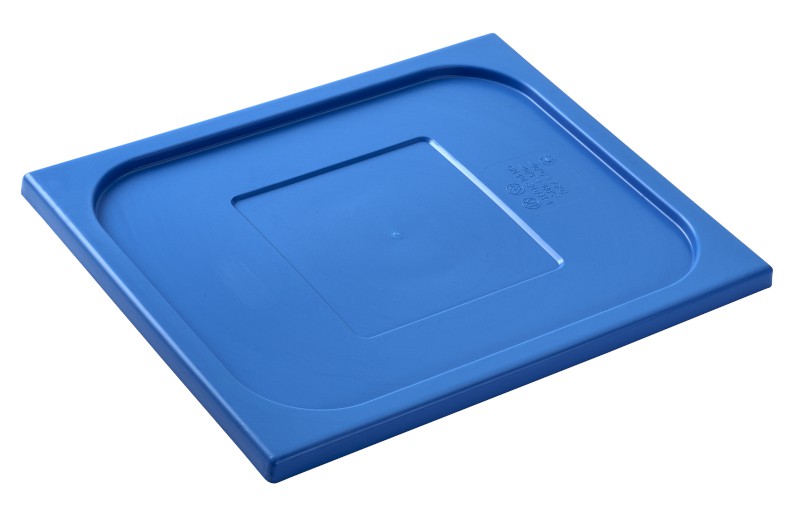

1/2 PRC12 1/2 Blue

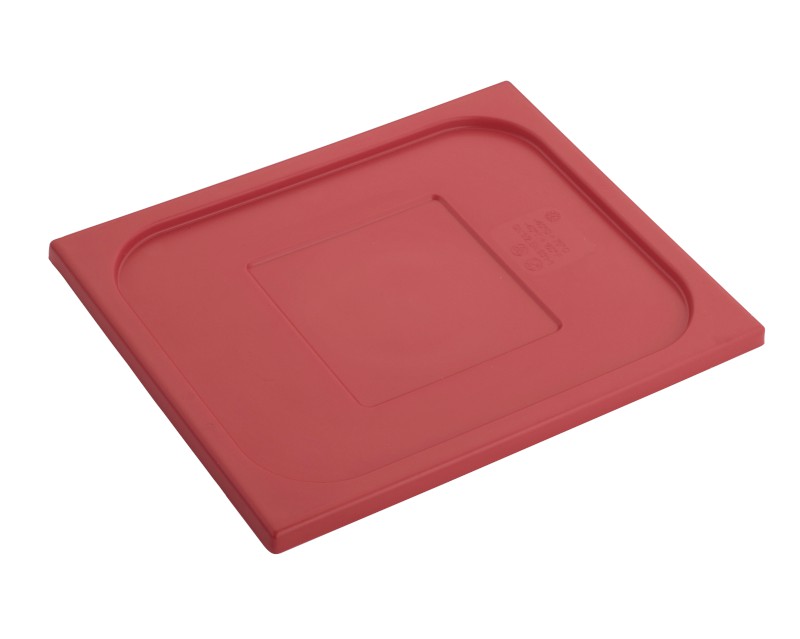

1/2 PRCRO12 1/2 Red
1/2 PRCGI12 1/2 Yellow

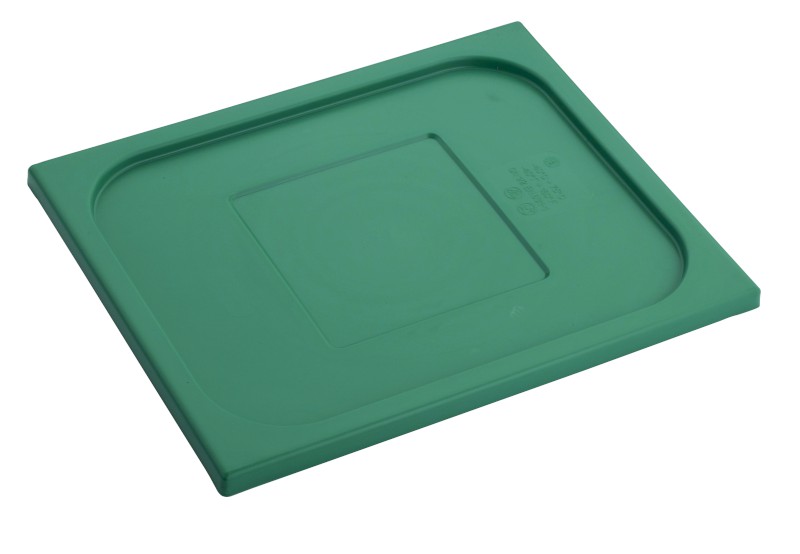

1/2 PRCVE12 1/2 Green
1/2 PRCBI12 1/2 White

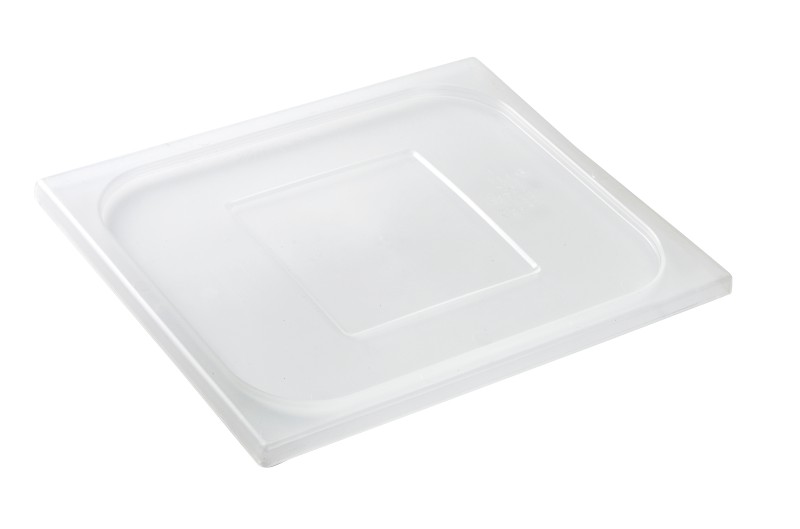

1/2 PRCTR12 1/2 Clear
1/3 PRC13 1/3 Blue
1/3 PRCRO13 1/3 Red
1/3 PRCGI13 1/3 Yellow
1/3 PRCVE13 1/3 Green
1/3 PRCBI13 1/3 White

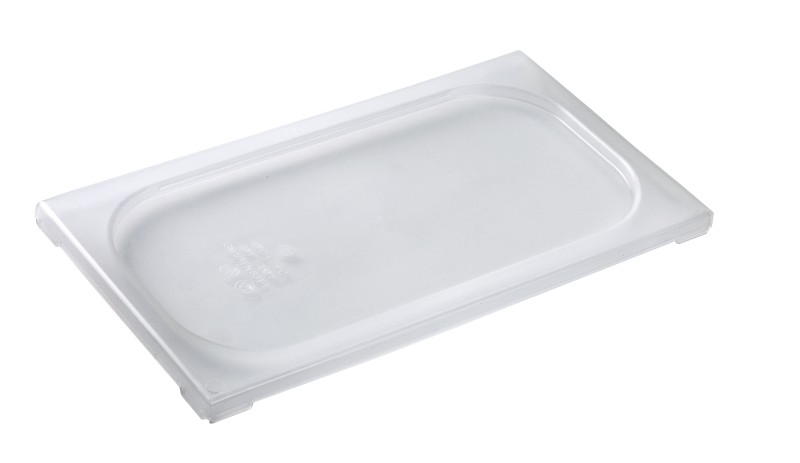

1/3 PRCTR13 1/3 Clear
1/4 PRC14 1/4 Blue
1/4 PRCRO14 1/4 Red
1/4 PRCGI14 1/4 Yellow
1/4 PRCVE14 1/4 Green
1/4 PRCBI14 1/4 White

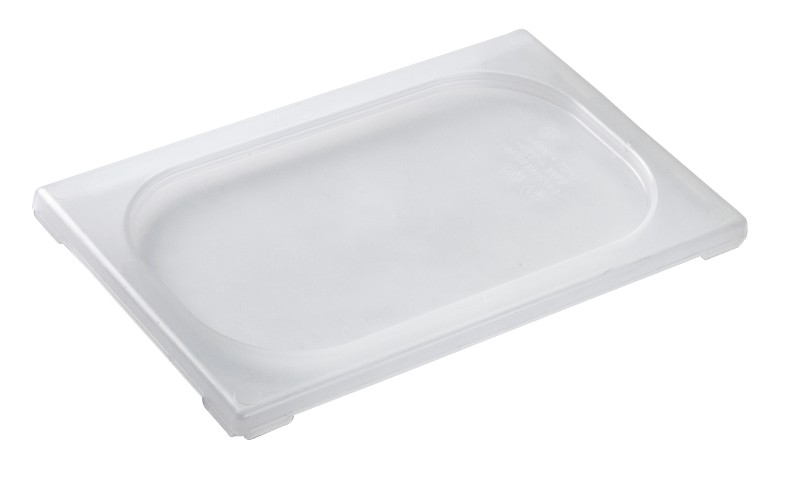

1/4 PRCTR14 1/4 Clear

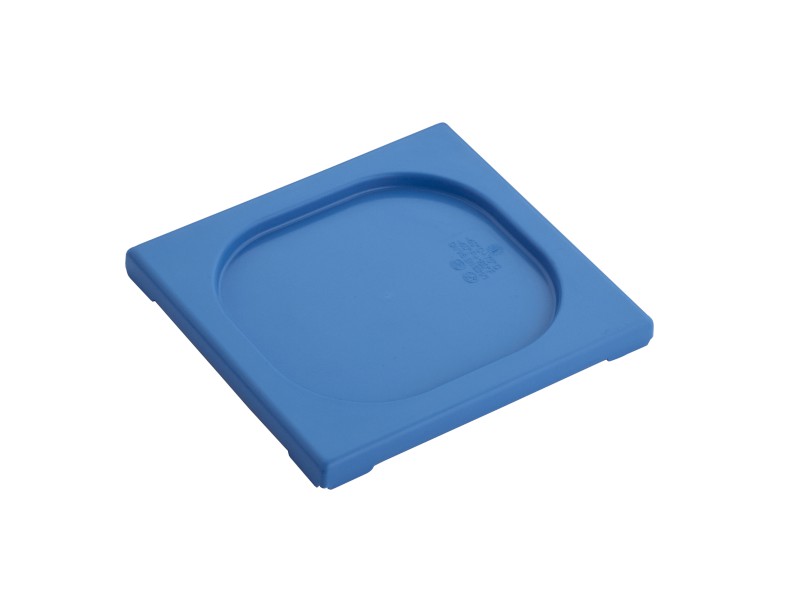

1/6 PRC16 1/6 Blue
1/6 PRCRO16 1/6 Red
1/6 PRCGI16 1/6 Yellow
1/6 PRCVE16 1/6 Green
1/6 PRCBI16 1/6 White

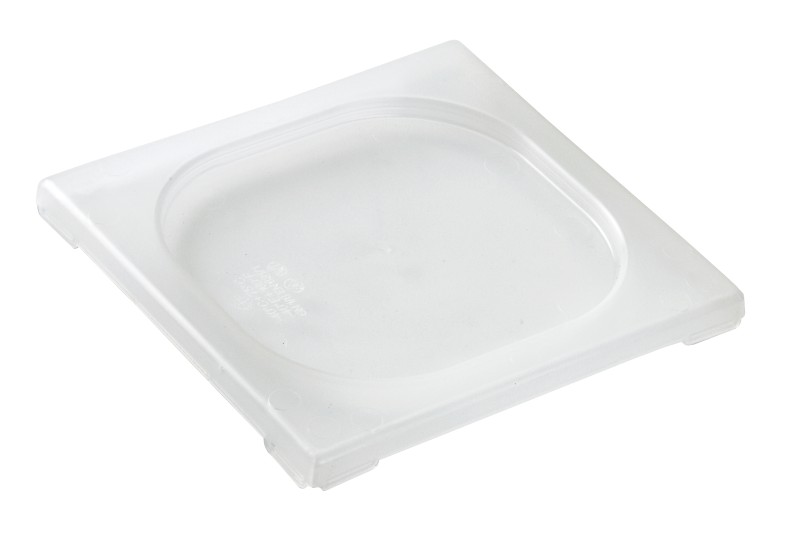

1/6 PRCTR16 1/6 Clear
1/9 PRC19 1/9 Blue
1/9 PRCRO19 1/9 Red
1/9 PRCGI19 1/9 Yellow
1/9 PRCVE19 1/9 Green
1/9 PRCBI19 1/9 White
1/9 PRCTR19 1/9 Clear

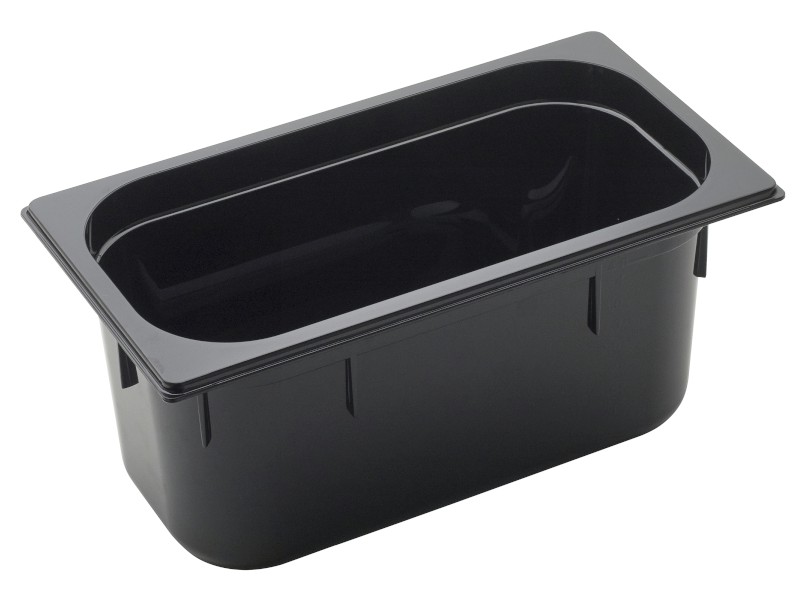

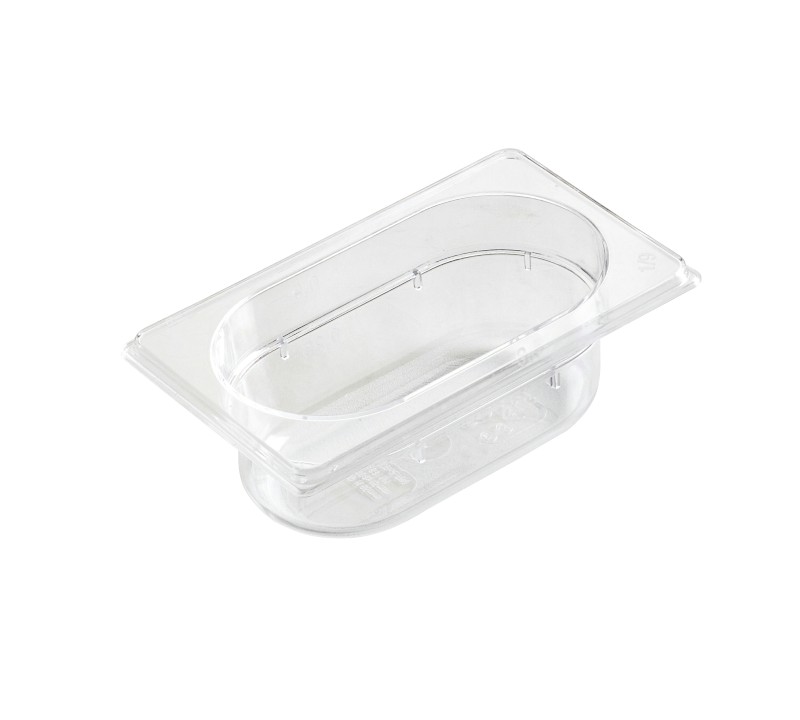

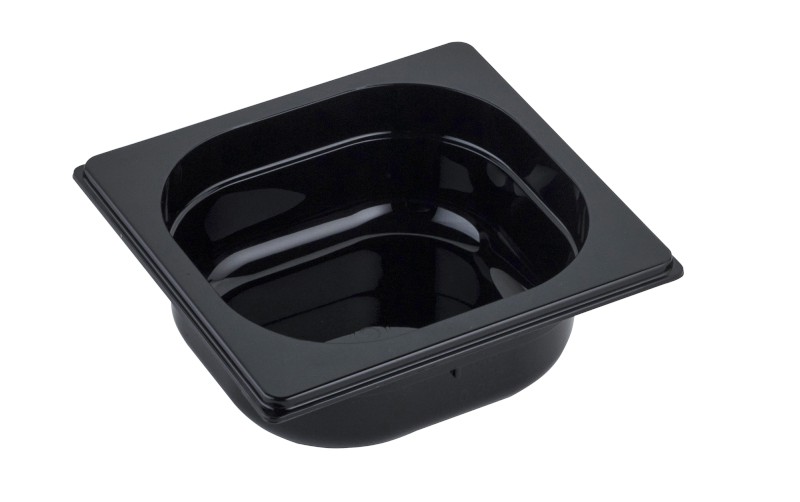

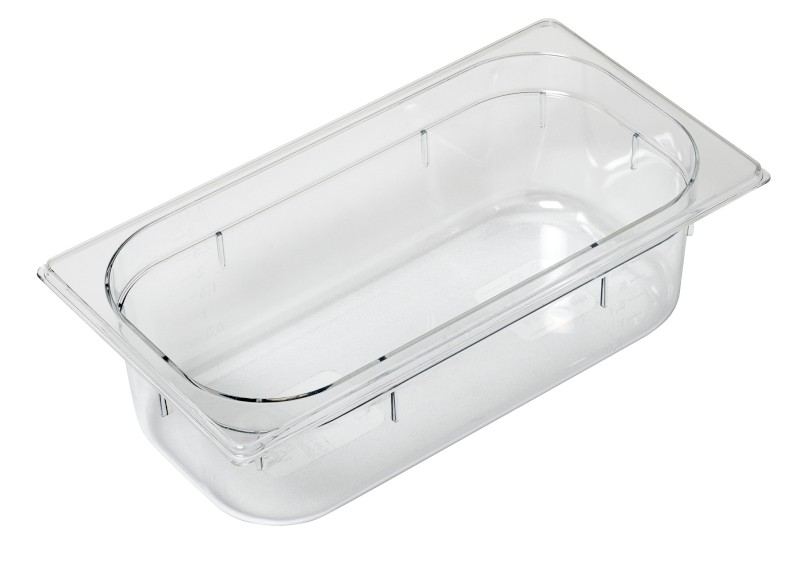

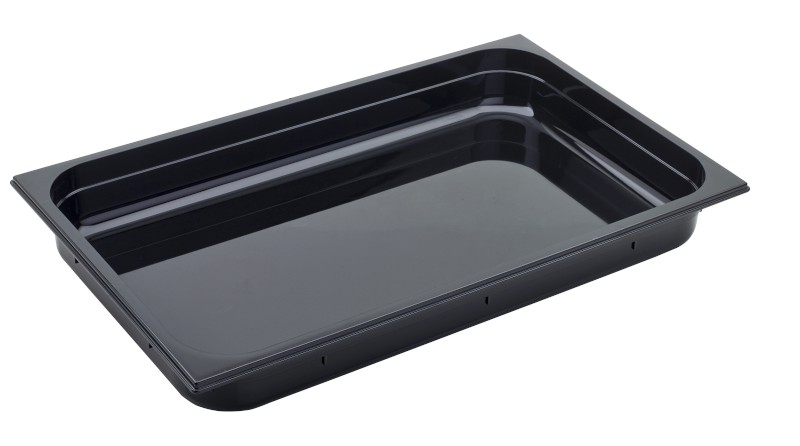

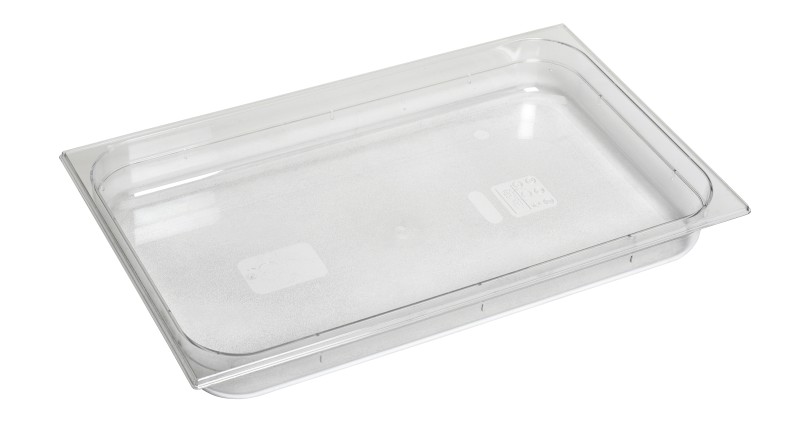

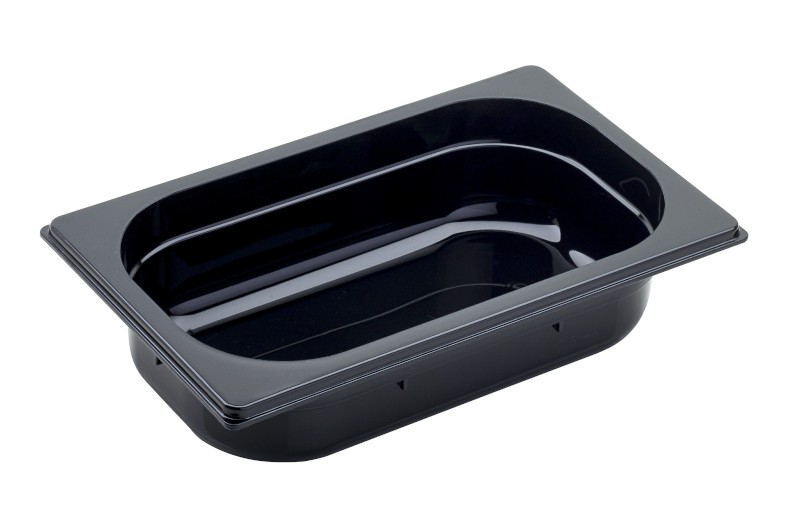

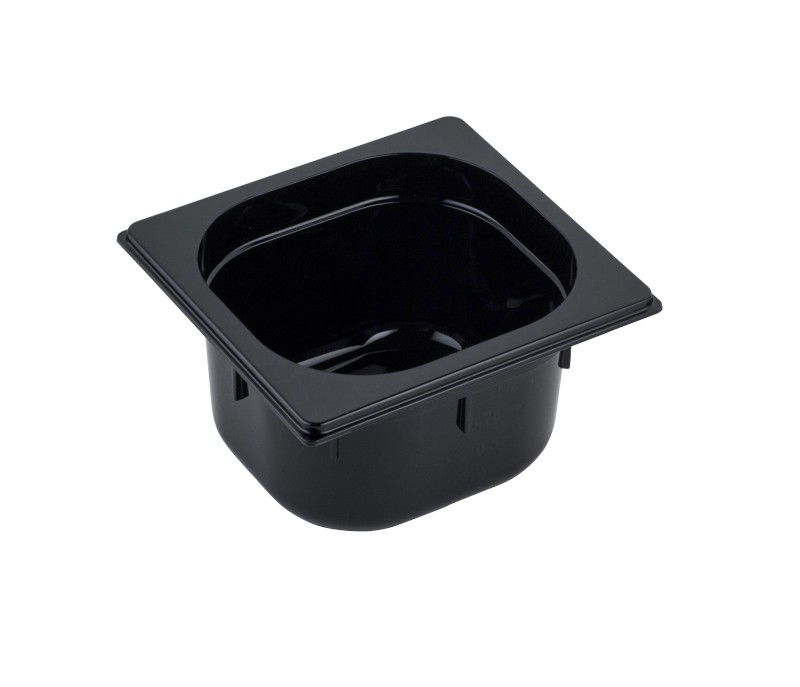

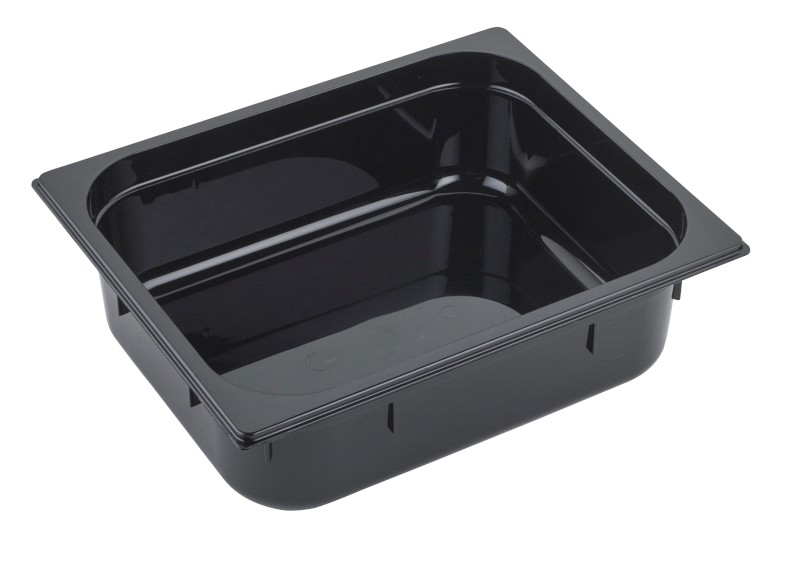

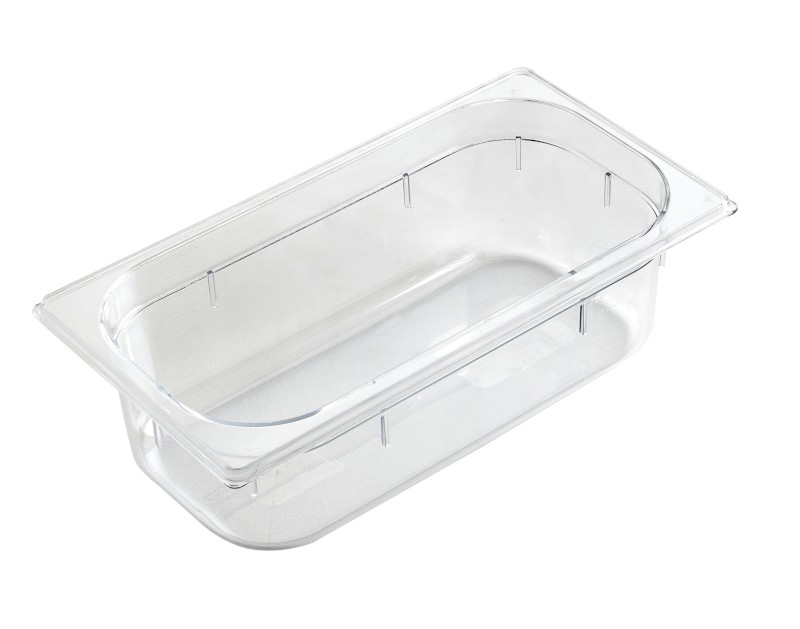

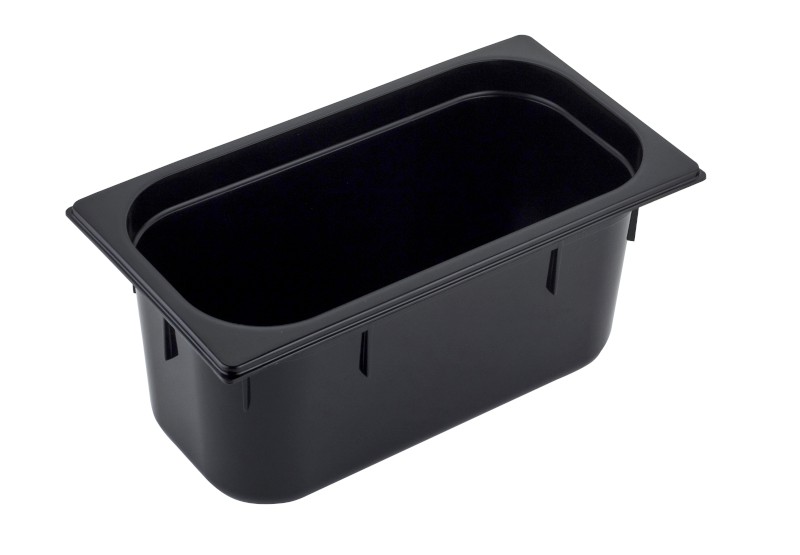

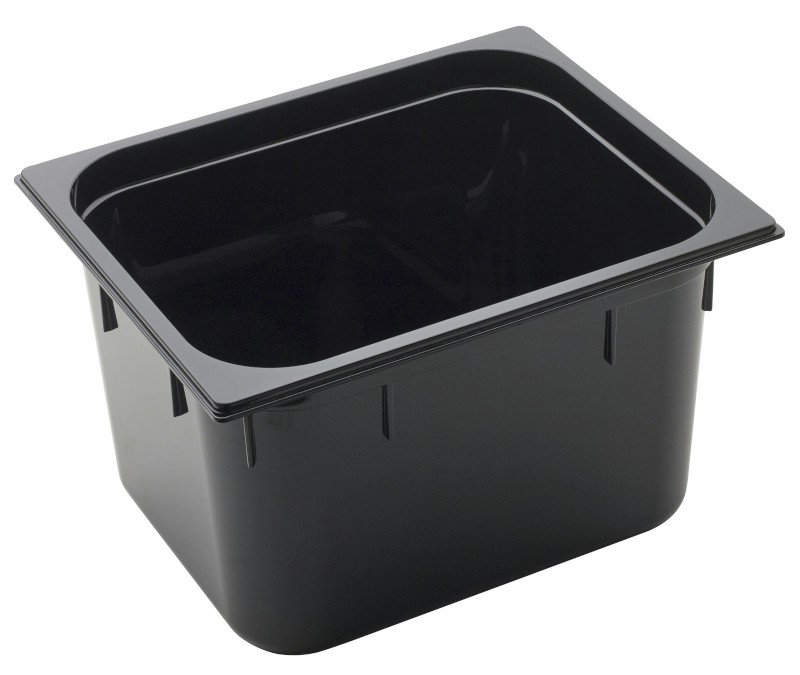

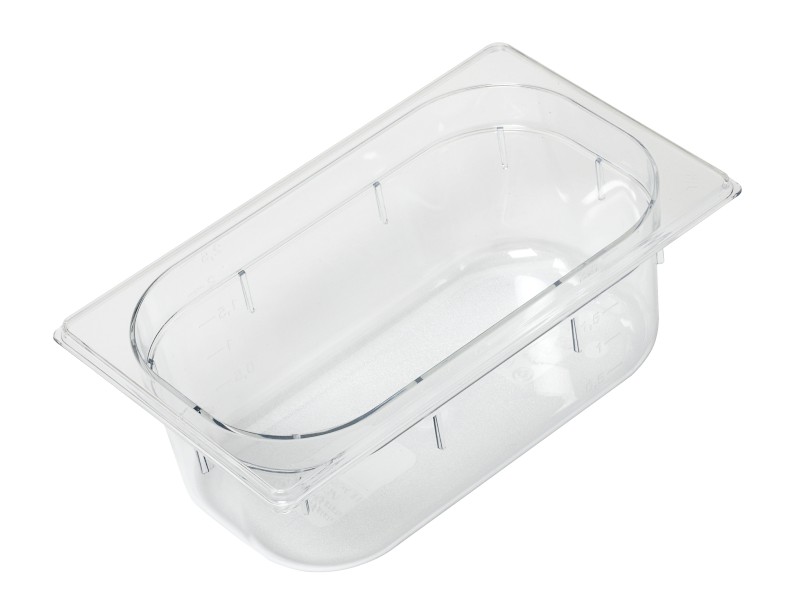

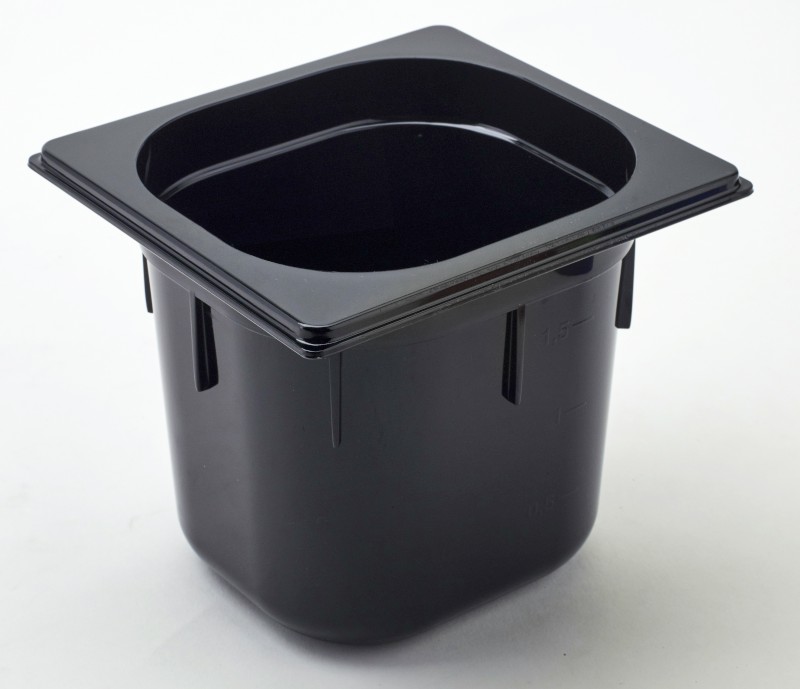

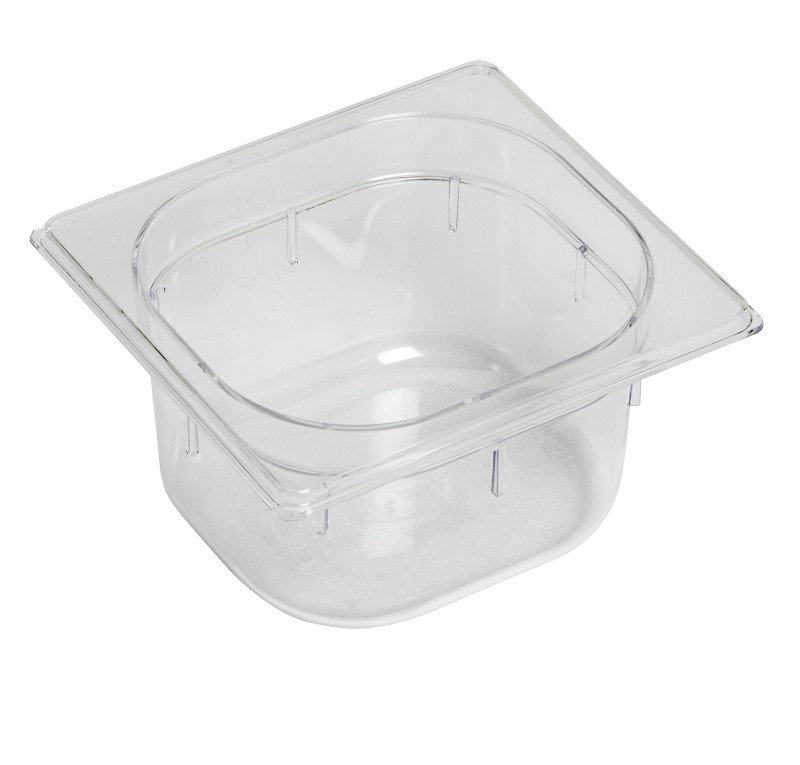

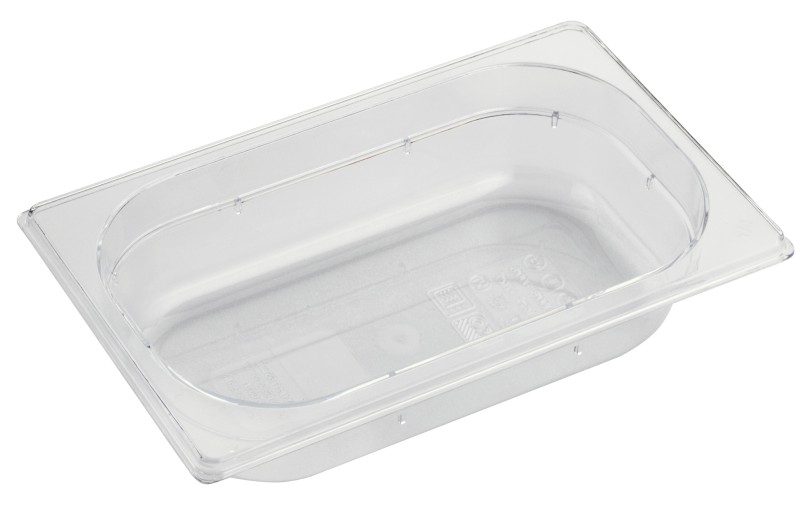

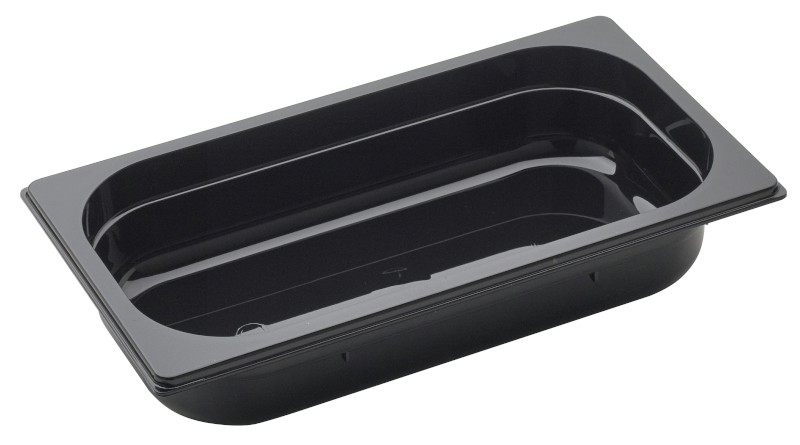

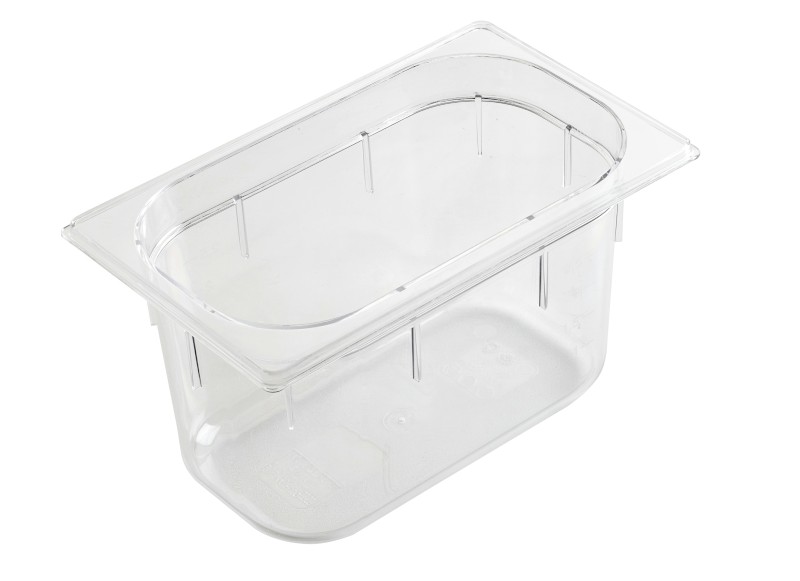

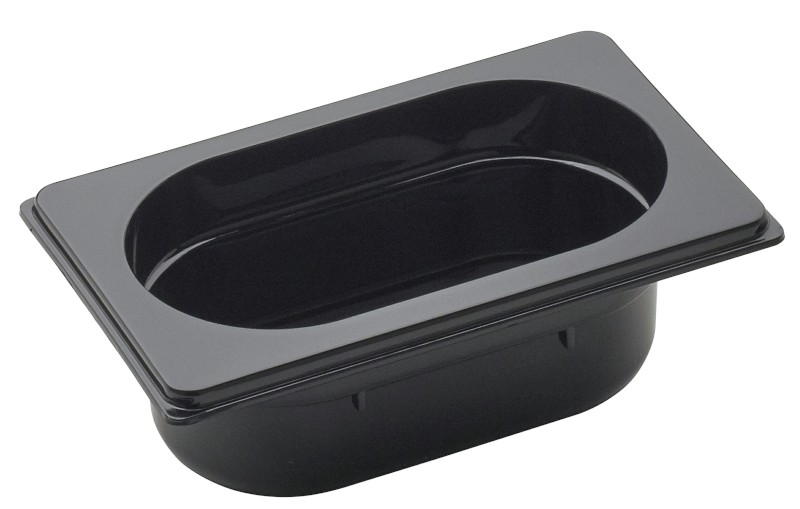

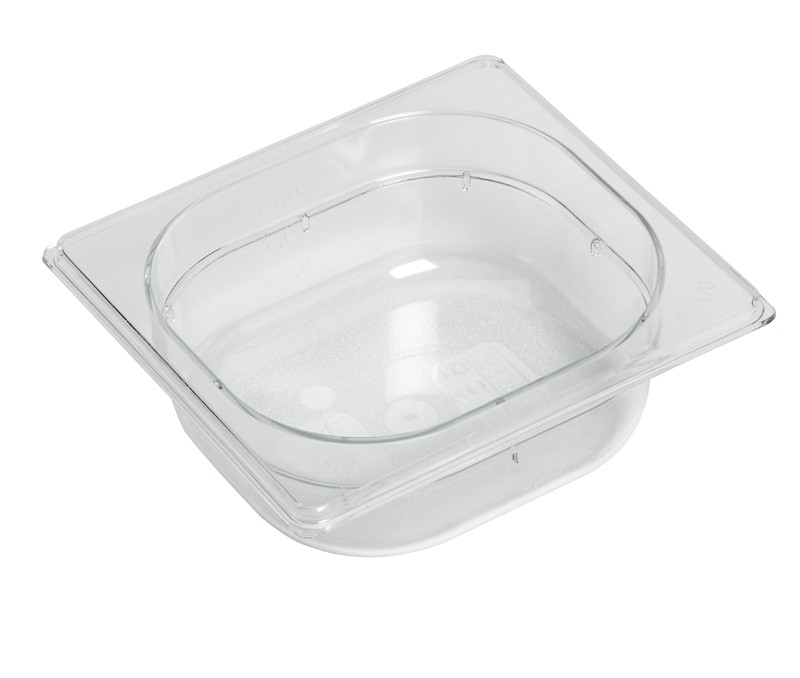

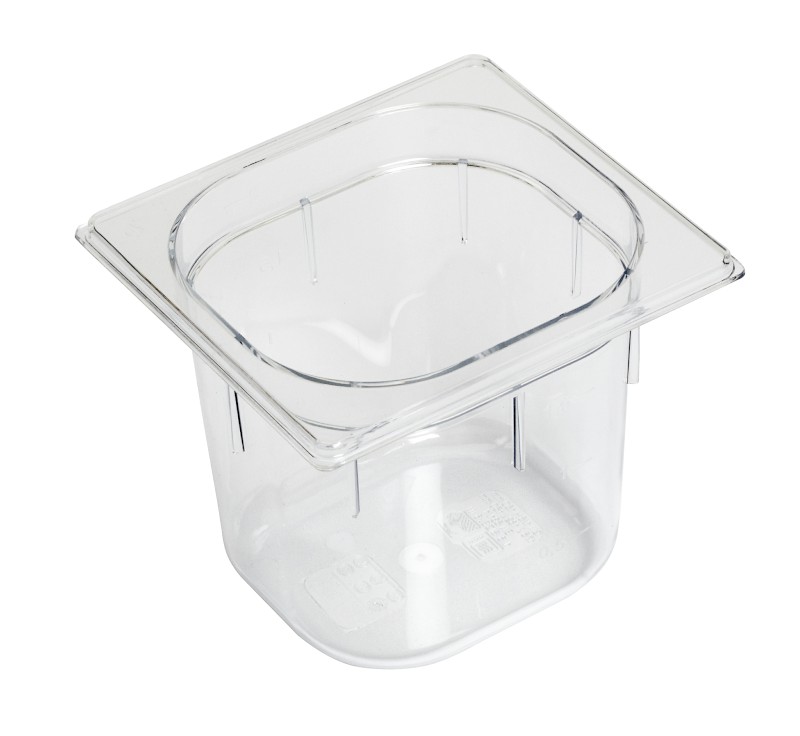

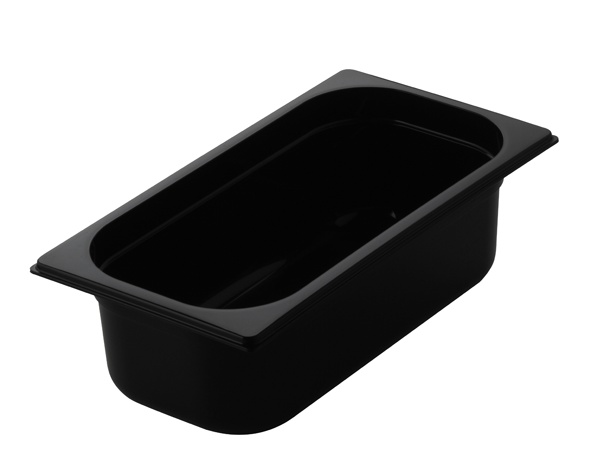

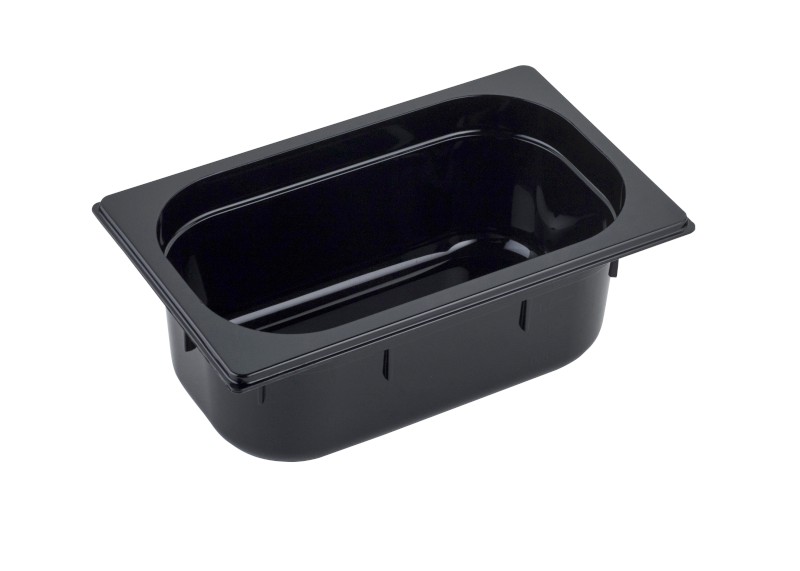

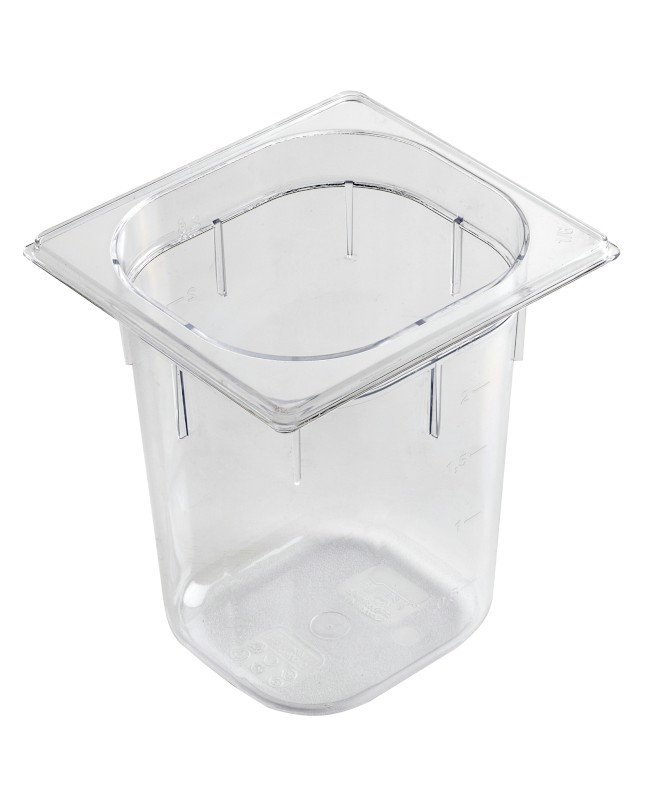

Polycarbonate Gastronorm containers

Incredibly transparent or shiny black, the polycarbonate Gastronorm containers can be used not only for stocking but also for food presentation.
Polycarbonate is a naturally transparent plastic, with the ability to transmit light almost as well as glass. It’s also of an exemplary strength and hardness, to the point that it’s used to build bulletproof glass! Thanks to their high thickness (2mm and more), our gastronorm polycarbonate containers resist impact easily: you can literally jump on them without fear of breaking them. Polycarbonate is the plastic with the greatest resistance to high temperatures: we recommend not using our containers at over 100°C to preserve them over time, but their melting point is at 160°C. For this reason they can be used to transport hot food and liquids, or for bain-marie. They’re also certified to be used in the microwave. Thanks to the raw material purity, they’re odourless and flavourless and pass food contact tests with flying colours, including latest indications from EFSA (European Food Safety Authority). Volume is easy to measure thanks to the level marks on the sides. Dishwasher safe, the tight but smooth radius improves capacity and makes them easy to clean. The lids are compatible with our stainless steel GN containers and their transparency allows visibility inside the container.

Mod. 2/1

Code H in mm ext. dimens. (mm) cap. lt.
P21150 150 650×530 46,5
P21200 200 650×530 62,0

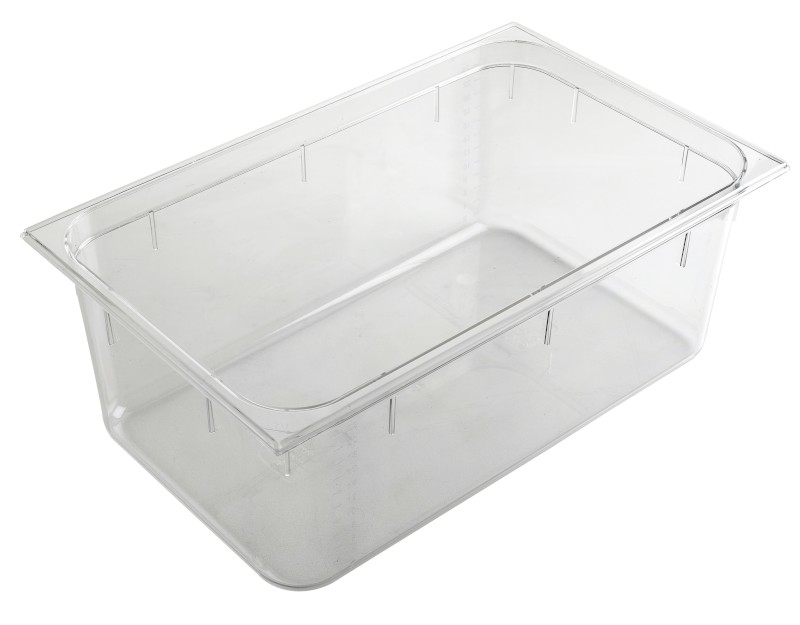

Mod. 1/1

Code H in mm ext. dimens. (mm) cap. lt.
P11065 65 530×325 9,8

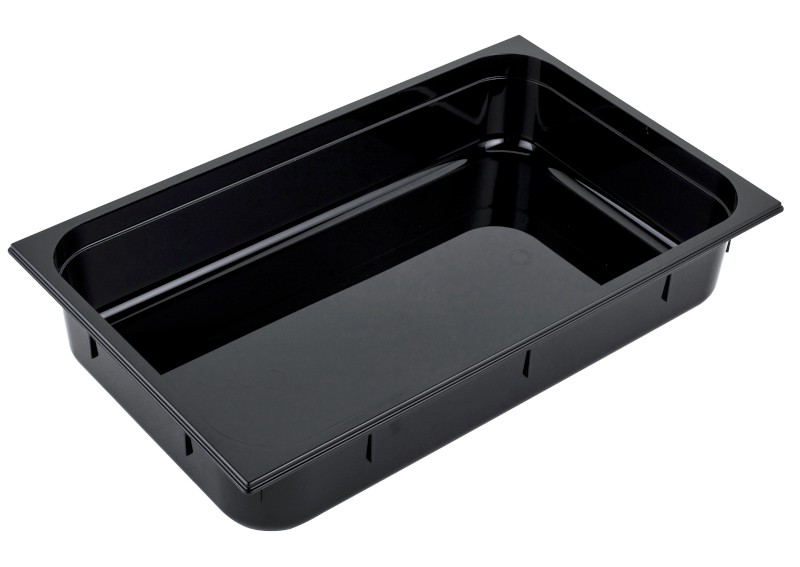

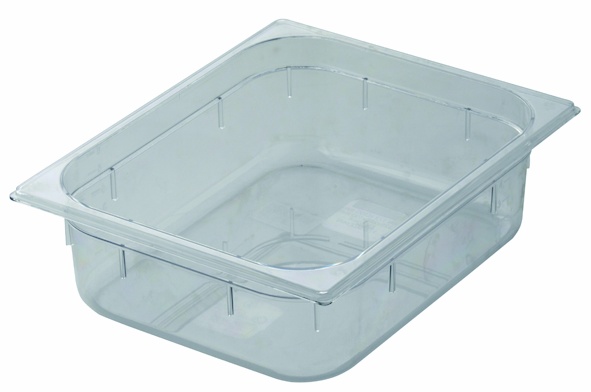

P11100 100 530×325 15,0
P11150 150 530×325 22,5
P11200 200 530×325 30,0

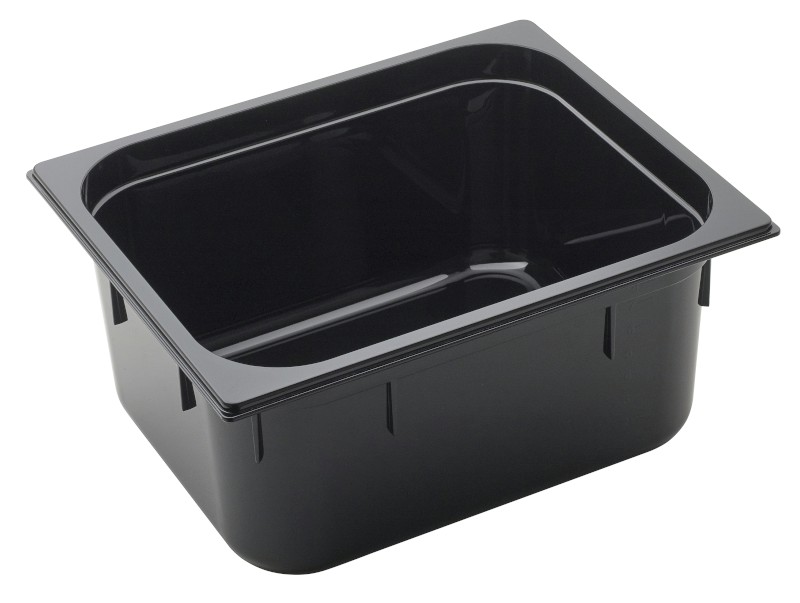

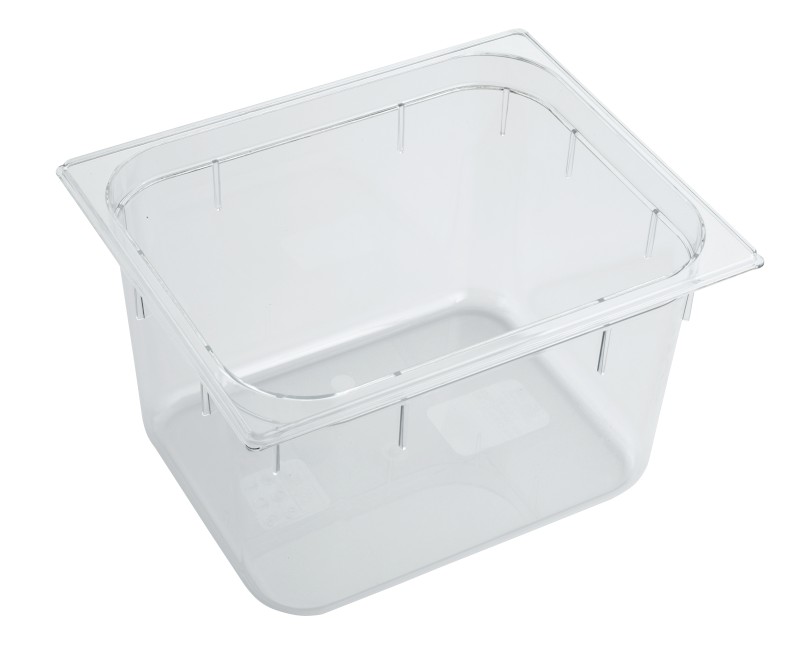

Mod. 1/2

Code H in mm ext. dimens. (mm) cap. lt.

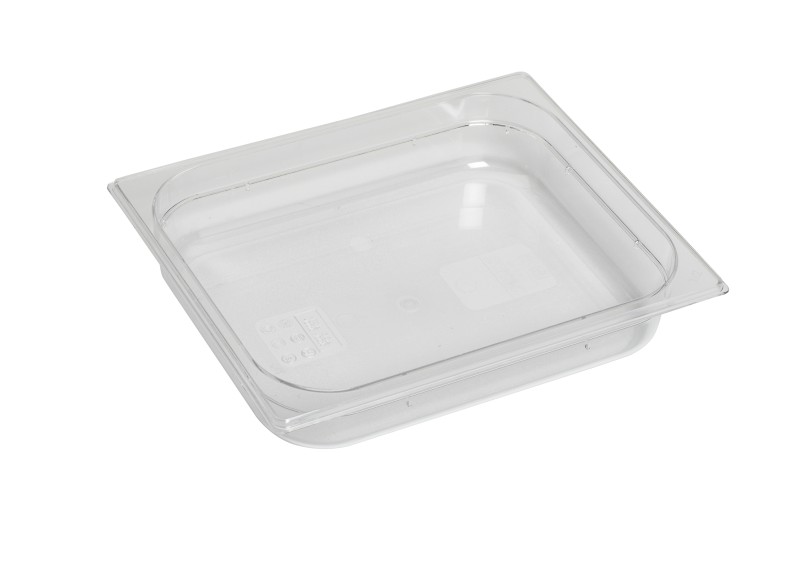

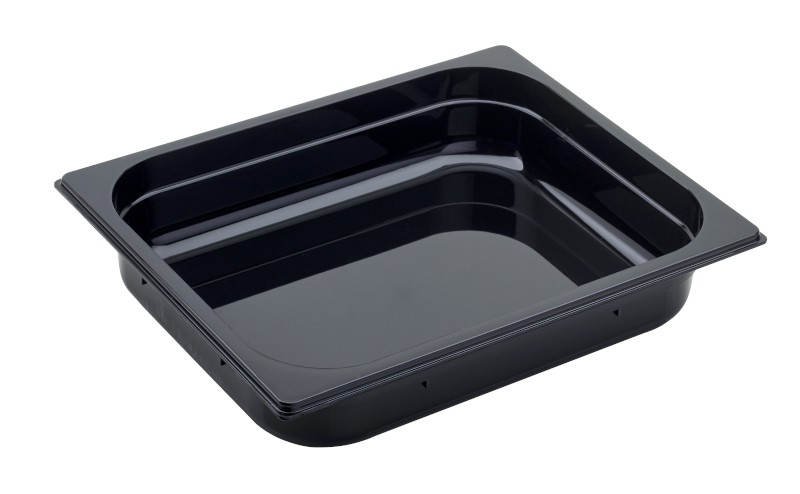

P12065 65 325×265 4,7
P12100 100 325×265 7,2

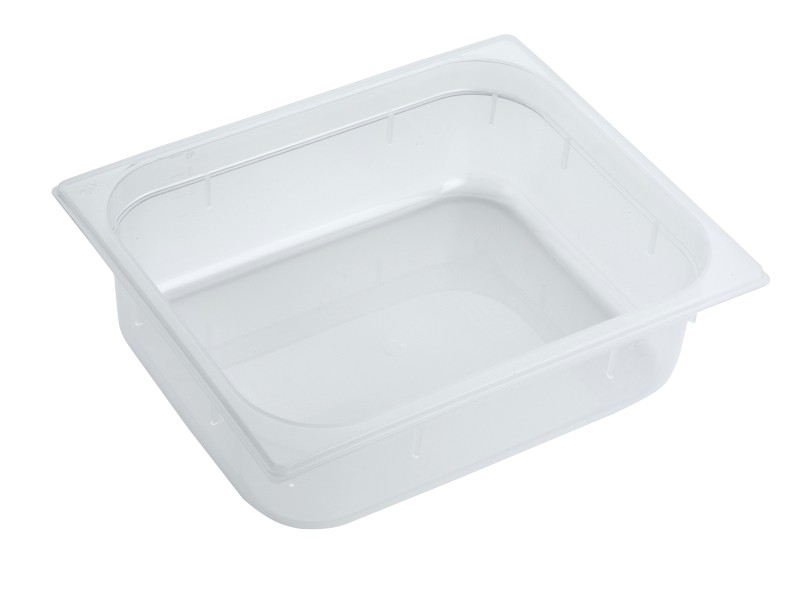

P12150 150 325×265 10,8
P12200 200 325×265 14,4

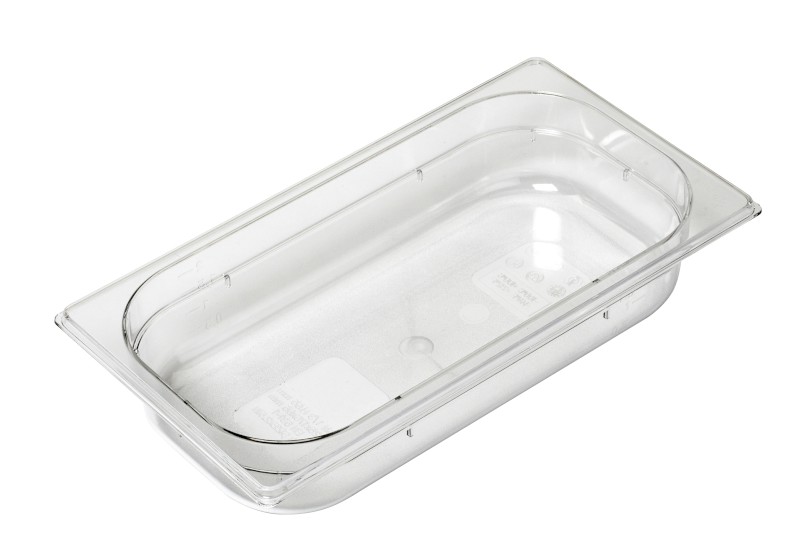

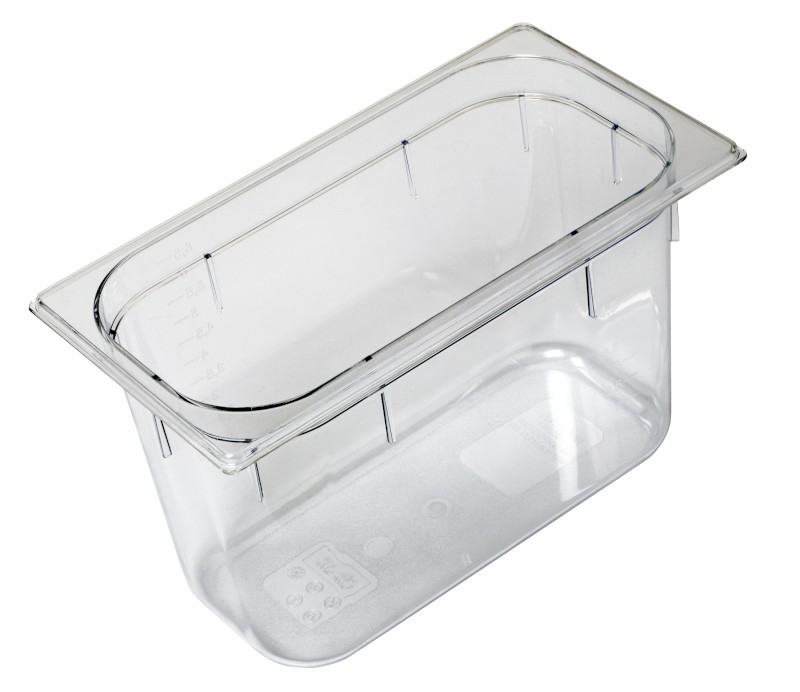

Mod. 1/3

Code H in mm ext. dimens. (mm) cap. lt.
P13065 65 325×176 2,9
P13100 100 325×176 4,5
P13150 150 325×176 6,8
P13200 200 325×176 9,0

Mod. 1/4

Code H in mm ext. dimens. (mm) cap. lt.
P14065 65 265×162 2,1
P14100 100 265×162 3,2
P14150 150 265×162 4,9
P14200 200 265×162 6,5

Mod. 1/6

Code H in mm ext. dimens. (mm) cap. lt.
P16065 65 176×162 1,4
P16100 100 176×162 2,1
P16150 150 176×162 3,2
P16200 200 176×162 4,3

Mod. 1/9

Code H in mm ext. dimens. (mm) cap. lt.
P19065 65 176×108 1,3
P19100 100 176×108 0,8

Lids

Polycarbonate lids

Code Dim ext. dimens. (mm)

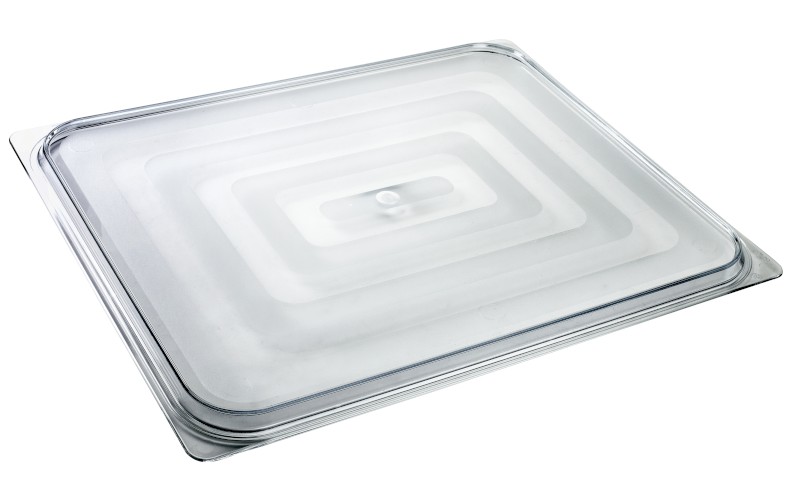

PC21 2/1 650×530

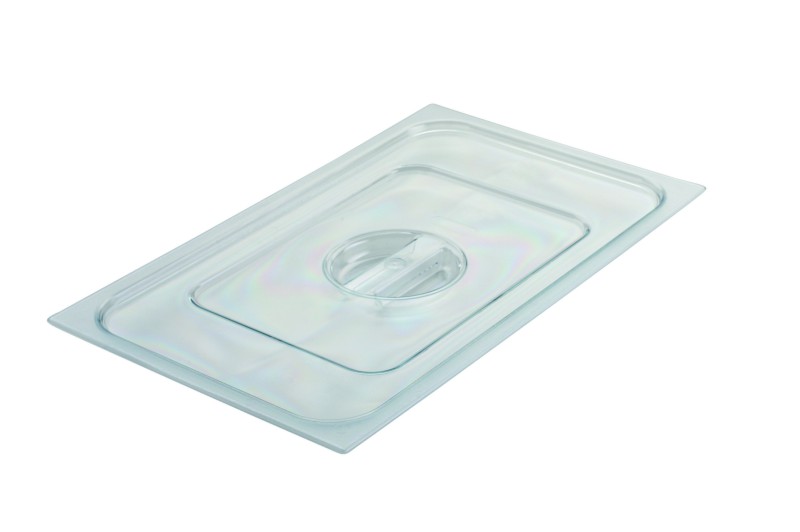

PC11 1/1 530×325

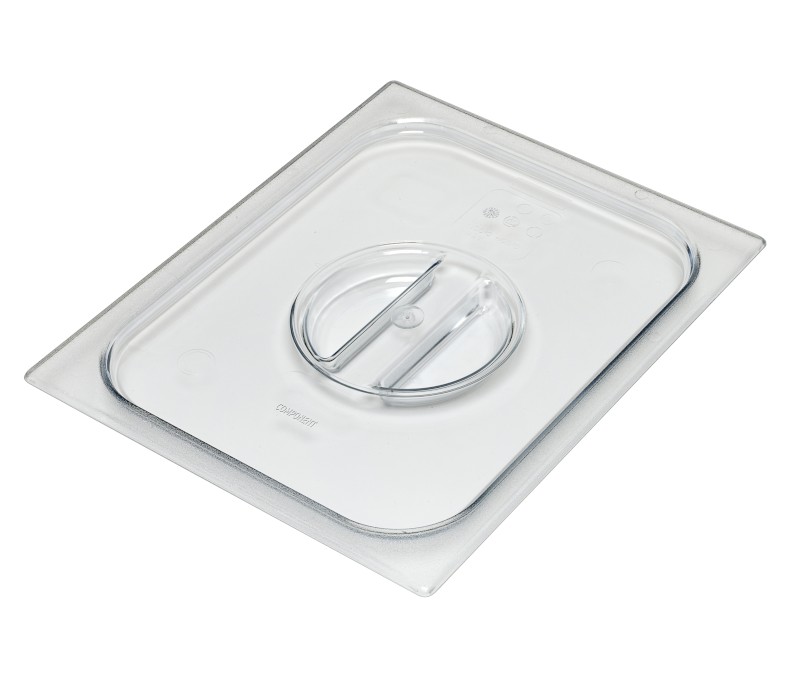

PC12 1/2 325×265

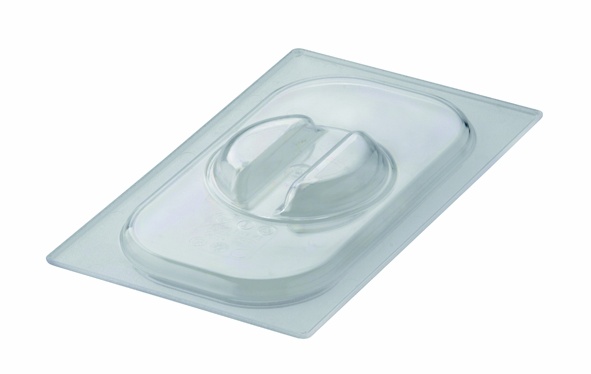

PC13 1/3 325×176

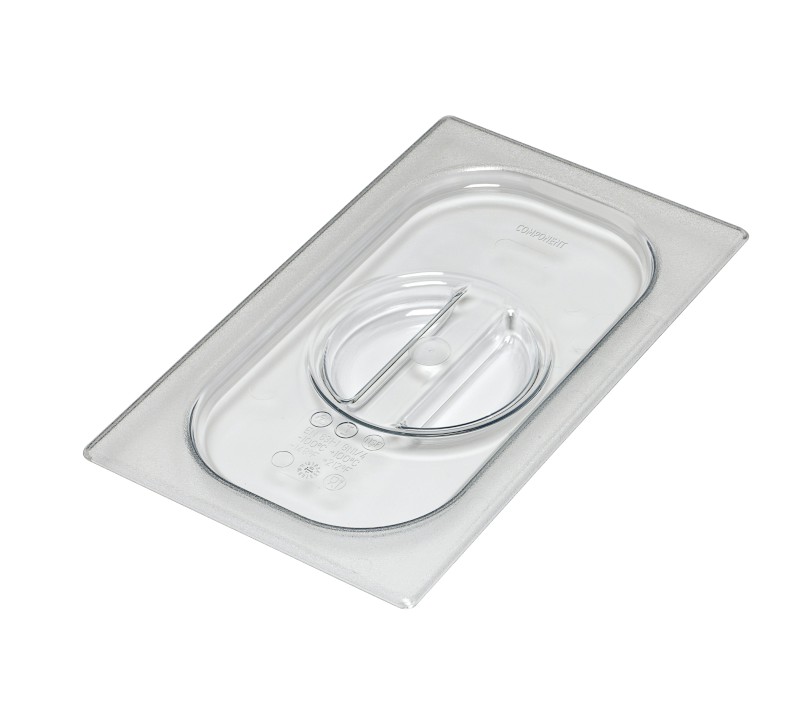

PC14 1/4 265×162

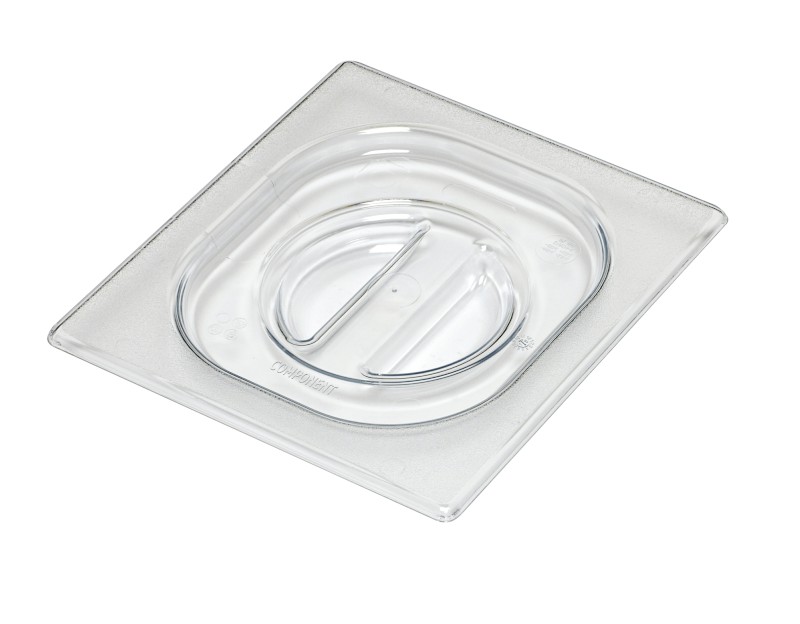

PC16 1/6 176×162

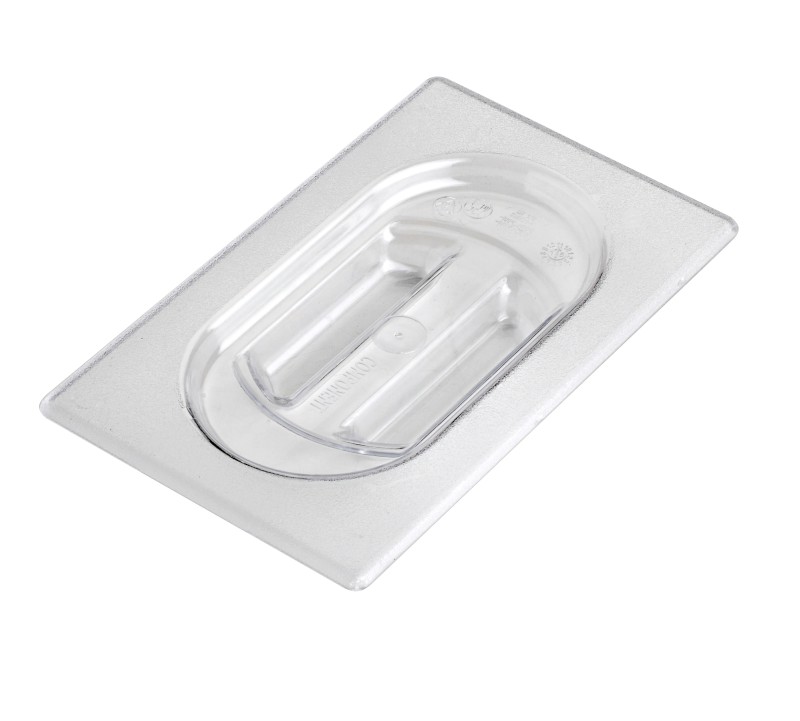

PC19 1/9 176×108

Polycarbonate flat lids

Code Dim ext. dimens. (mm)
PC11P 1/1 530×325
PC12P 1/2 325×265
PC13P 1/3 325×176

Flat pc lids with lateral handles

Code Dim ext. dimens. (mm)
PC13C 1/3

Polycarbonate flat lids

Code Dim ext. dimens. (mm)
PC11SI 1/1
PC12SI 1/2
PC16SI 1/6

Polycarbonate lids notched for spoon

Code Dim ext. dimens. (mm)
PC11ME 1/1
PC12ME 1/2
PC13ME 1/3
PC14ME 1/4
PC16ME 1/6

Polycarbonate insert grids

Code Dim ext. dimens. (mm)

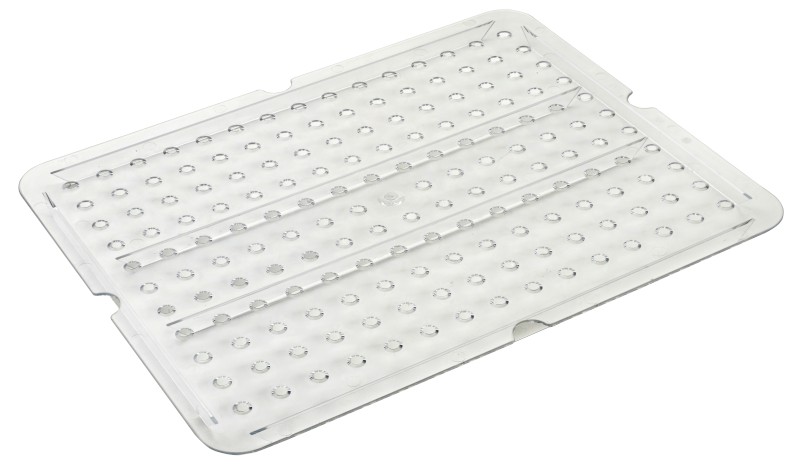

PFFF21 2/1
PFFF11 1/1
PFFF12 1/2
PFFF13 1/3
PFFF14 1/4
PFFF16 1/6

Black polycarbonate Gastronorm containers

Mod. 1/1

Code H in mm Colour cap. lt.
P11065N 65 Black 9,8
P11100N 100 Black 15,0
P11150N 150 Black 22,5
P11200N 200 Black 30,0

Mod. 1/2

Code H in mm Colour cap. lt.
P12065N 65 Black 4,7
P12100N 100 Black 7,2
P12150N 150 Black 10,8
P12200N 200 Black 14,4

Mod. 1/3

Code H in mm Colour cap. lt.
P13065N 65 Black 2,9
P13100N 100 Black 4,5
P13150N 150 Black 6,8
P13200N 200 Black 9,0

Mod. 1/4

Code H in mm Colour cap. lt.
P14065N 65 Black 2,1
P14100N 100 Black 3,2
P14150N 150 Black 4,9

Mod. 1/6

Code H in mm Colour cap. lt.
P16065N 65 Black 1,4
P16100N 100 Black 2,1
P16150N 150 Black 3,2

Mod. 1/9

Code H in mm Colour cap. lt.
P19065N 65 Black 1,3
P19100N 100 Black 0,8
