Sinks
The water seems to play in these beautiful, perfectly hygienic steel sinks.
Strength, durability and style.
Stainless steel sinks
Apt for any kitchen or production, the stainless steel sinks are made in Aisi304 (18/10), the best material to insure a total resistance to rust, stains and the most aggressive cleaning product, and to high temperatures and related surges. Elegant and shiny, with a classic and smooth design that makes them easy to clean and tight radius for a better capacity. The strength and purity of the raw material used guarantees hygiene and resistance to wear over time. On request, all possible combinations of bottom holes and overflows and related accessories are available.
Sinks to be welded
| Code N. | Code | Description | Color | Lenght (mm) | Width (mm) | Height (mm) | Capacity (l) | Weight (g) | Material | Extra | Max Load | Q.tà vendita | Qty Master Carton | H. box | W. box | L. box | CN Codes (Intrastat) | Barcode | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| | 8730 | 50.10.11.6050.3002 | Sink to be welded 600x500x300 | STEEL | 600 | 500 | 300 | 0.00 | 6000 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8731 | 50.10.11.6050.3001 | Sink to be welded 600x500x300 | STEEL | 600 | 500 | 300 | 0.00 | 6000 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8732 | 50.10.10.6050.3002 | Sink to be welded 600x500x300 | STEEL | 600 | 500 | 300 | 0.00 | 6000 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8733 | 50.10.10.6050.3001 | Sink to be welded 600x500x300 | STEEL | 600 | 500 | 300 | 0.00 | 6000 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8734 | 50.10.11.6045.2502 | Sink to be welded 600x450x250 | STEEL | 600 | 450 | 250 | 0.00 | 6000 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||

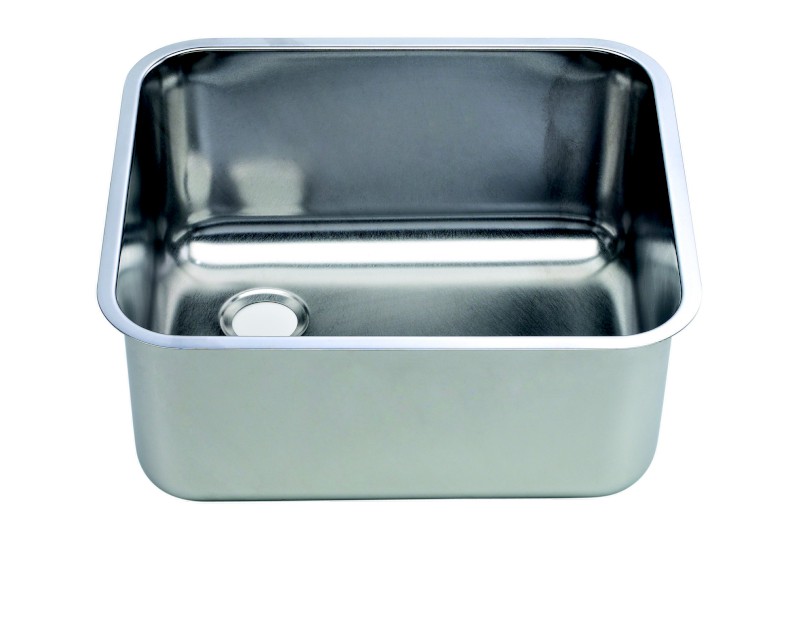

| | 8735 | 50.10.11.6045.2501 | Sink to be welded 600x450x250 | STEEL | 600 | 450 | 250 | 0.00 | 5700 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8736 | 50.10.10.6045.2502 | Sink to be welded 600x450x250 | STEEL | 600 | 450 | 250 | 0.00 | 5700 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8737 | 50.10.10.6045.2501 | Sink to be welded 600x450x250 | STEEL | 600 | 450 | 250 | 0.00 | 5700 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8738 | 50.10.11.6045.3002 | Sink to be welded 600x450x300 | STEEL | 600 | 450 | 300 | 0.00 | 5700 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
 | 8739 | 50.10.11.6045.3001 | Sink to be welded 600x450x300 | STEEL | 600 | 450 | 300 | 0.00 | 5800 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8740 | 50.10.10.6045.3002 | Sink to be welded 600x450x300 | STEEL | 600 | 450 | 300 | 0.00 | 5800 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8741 | 50.10.10.6045.3001 | Sink to be welded 600x450x300 | STEEL | 600 | 450 | 300 | 0.00 | 5800 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8742 | 50.10.11.5040.2002 | Sink to be welded 500x400x200 | STEEL | 500 | 400 | 200 | 0.00 | 5800 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8743 | 50.10.11.5040.2001 | Sink to be welded 500x400x200 | STEEL | 500 | 400 | 200 | 0.00 | 3800 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8744 | 50.10.10.5040.2002 | Sink to be welded 500x400x200 | STEEL | 500 | 400 | 200 | 0.00 | 3800 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8745 | 50.10.10.5040.2001 | Sink to be welded 500x400x200 | STEEL | 500 | 400 | 200 | 0.00 | 3800 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8746 | 50.10.11.5040.2502 | Sink to be welded 500x400x250 | STEEL | 500 | 400 | 250 | 0.00 | 3800 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8747 | 50.10.11.5040.2501 | Sink to be welded 500x400x250 | STEEL | 500 | 400 | 250 | 0.00 | 4000 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||

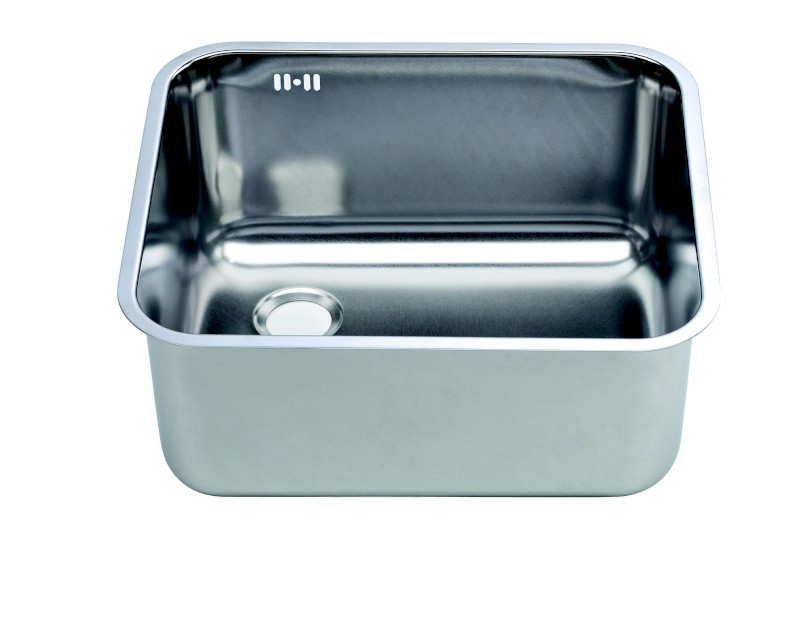

| | 8748 | 50.10.10.5040.2502 | Sink to be welded 500x400x250 | STEEL | 500 | 400 | 250 | 0.00 | 4000 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
 | 8749 | 50.10.10.5040.2501 | Sink to be welded 500x400x250 | STEEL | 500 | 400 | 250 | 0.00 | 4000 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8750 | 50.10.11.5040.3002 | Sink to be welded 500x400x300 | STEEL | 500 | 400 | 300 | 0.00 | 4000 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8751 | 50.10.11.5040.3001 | Sink to be welded 500x400x300 | STEEL | 500 | 400 | 300 | 0.00 | 4400 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8752 | 50.10.10.5040.3002 | Sink to be welded 500x400x300 | STEEL | 500 | 400 | 300 | 0.00 | 4400 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8753 | 50.10.10.5040.3001 | Sink to be welded 500x400x300 | STEEL | 500 | 400 | 300 | 0.00 | 4400 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8754 | 50.10.11.5050.2500 | Sink to be welded 500x500x250 | STEEL | 500 | 500 | 250 | 0.00 | 4400 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8755 | 50.10.10.5050.2502 | Sink to be welded 500x500x250 | STEEL | 500 | 500 | 250 | 0.00 | 4700 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8756 | 50.10.10.5050.2501 | Sink to be welded 500x500x250 | STEEL | 500 | 500 | 250 | 0.00 | 4700 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8757 | 50.10.11.5050.3000 | Sink to be welded 500x500x300 | STEEL | 500 | 500 | 300 | 0.00 | 4700 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8758 | 50.10.10.5050.3002 | Sink to be welded 500x500x300 | STEEL | 500 | 500 | 300 | 0.00 | 4700 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8759 | 50.10.10.5050.3001 | Sink to be welded 500x500x300 | STEEL | 500 | 500 | 300 | 0.00 | 5400 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8760 | 50.10.11.4545.2000 | Sink to be welded 450x450x200 | STEEL | 450 | 450 | 200 | 0.00 | 5400 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8761 | 50.10.10.4545.2002 | Sink to be welded 450x450x200 | STEEL | 450 | 450 | 200 | 0.00 | 3500 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8762 | 50.10.10.4545.2001 | Sink to be welded 450x450x200 | STEEL | 450 | 450 | 200 | 0.00 | 3500 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8763 | 50.10.11.4545.2500 | Sink to be welded 450x450x250 | STEEL | 450 | 450 | 250 | 0.00 | 3500 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8764 | 50.10.10.4545.2502 | Sink to be welded 450x450x250 | STEEL | 450 | 450 | 250 | 0.00 | 4300 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8765 | 50.10.10.4545.2501 | Sink to be welded 450x450x250 | STEEL | 450 | 450 | 250 | 0.00 | 4300 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8766 | 50.10.11.4545.3000 | Sink to be welded 450x450x300 | STEEL | 450 | 450 | 300 | 0.00 | 4300 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8767 | 50.10.10.4545.3002 | Sink to be welded 450x450x300 | STEEL | 450 | 450 | 300 | 0.00 | 4400 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8768 | 50.10.10.4545.3001 | Sink to be welded 450x450x300 | STEEL | 450 | 450 | 300 | 0.00 | 4400 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8769 | 50.10.11.4040.2000 | Sink to be welded 400x400x200 | STEEL | 400 | 400 | 200 | 0.00 | 4400 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8770 | 50.10.10.4040.2002 | Sink to be welded 400x400x200 | STEEL | 400 | 400 | 200 | 0.00 | 3000 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8771 | 50.10.10.4040.2001 | Sink to be welded 400x400x200 | STEEL | 400 | 400 | 200 | 0.00 | 3000 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8772 | 50.10.11.4040.2500 | Sink to be welded 400x400x250 | STEEL | 400 | 400 | 250 | 0.00 | 3000 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8773 | 50.10.10.4040.2502 | Sink to be welded 400x400x250 | STEEL | 400 | 400 | 250 | 0.00 | 3300 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8774 | 50.10.10.4040.2501 | Sink to be welded 400x400x250 | STEEL | 400 | 400 | 250 | 0.00 | 3300 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8775 | 50.10.11.4040.3000 | Sink to be welded 400x400x300 | STEEL | 400 | 400 | 300 | 0.00 | 3300 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8776 | 50.10.10.4040.3002 | Sink to be welded 400x400x300 | STEEL | 400 | 400 | 300 | 0.00 | 4000 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8777 | 50.10.10.4040.3001 | Sink to be welded 400x400x300 | STEEL | 400 | 400 | 300 | 0.00 | 4000 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8778 | 50.10.11.3440.2002 | Sink to be welded 340x400x200 | STEEL | 340 | 400 | 200 | 0.00 | 4000 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8779 | 50.10.11.3440.2001 | Sink to be welded 340x400x200 | STEEL | 340 | 400 | 200 | 0.00 | 3000 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8780 | 50.10.10.3440.2002 | Sink to be welded 340x400x200 | STEEL | 340 | 400 | 200 | 0.00 | 3000 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8781 | 50.10.10.3440.2001 | Sink to be welded 340x400x200 | STEEL | 340 | 400 | 200 | 0.00 | 3000 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8782 | 50.10.11.3440.2502 | Sink to be welded 340x400x250 | STEEL | 340 | 400 | 250 | 0.00 | 3000 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8783 | 50.10.11.3440.2501 | Sink to be welded 340x400x250 | STEEL | 340 | 400 | 250 | 0.00 | 3300 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8784 | 50.10.10.3440.2502 | Sink to be welded 340x400x250 | STEEL | 340 | 400 | 250 | 0.00 | 3300 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8785 | 50.10.10.3440.2501 | Sink to be welded 340x400x250 | STEEL | 340 | 400 | 250 | 0.00 | 3300 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8786 | 50.10.11.3440.3002 | Sink to be welded 340x400x300 | STEEL | 340 | 400 | 300 | 0.00 | 3300 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8787 | 50.10.11.3440.3001 | Sink to be welded 340x400x300 | STEEL | 340 | 400 | 300 | 0.00 | 3500 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8788 | 50.10.10.3440.3002 | Sink to be welded 340x400x300 | STEEL | 340 | 400 | 300 | 0.00 | 3500 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8789 | 50.10.10.3440.3001 | Sink to be welded 340x400x300 | STEEL | 340 | 400 | 300 | 0.00 | 3500 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8790 | 50.10.11.3333.2000 | Sink to be welded 330x330x200 | STEEL | 330 | 330 | 200 | 0.00 | 3500 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||

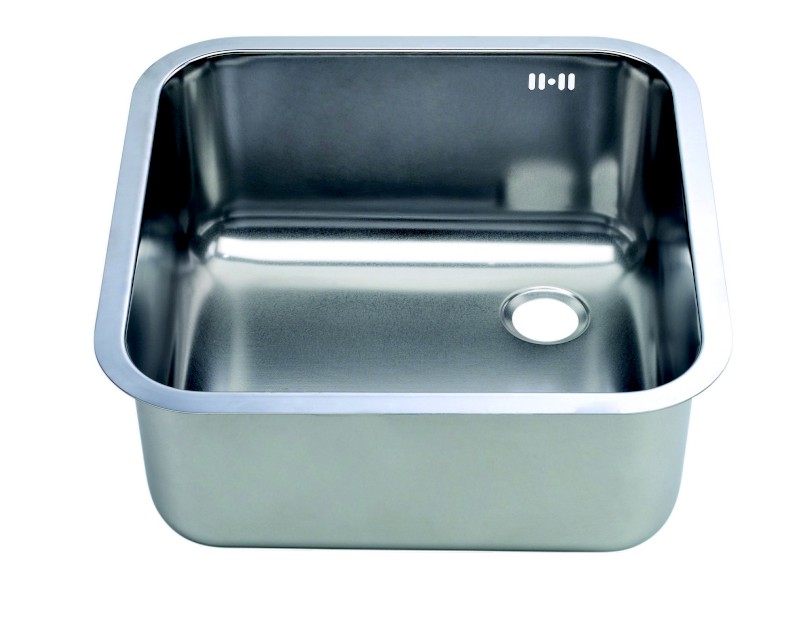

 | 8791 | 50.10.10.3333.2002 | Sink to be welded 330x330x200 | STEEL | 330 | 330 | 200 | 0.00 | 2400 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8792 | 50.10.10.3333.2001 | Sink to be welded 330x330x200 | STEEL | 330 | 330 | 200 | 0.00 | 2400 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8793 | 50.10.10.3323.1802 | Sink to be welded 335x235x180 | STEEL | 335 | 235 | 180 | 0.00 | 2400 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8794 | 50.10.10.3323.1801 | Sink to be welded 335x235x180 | STEEL | 335 | 235 | 180 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8795 | 50.10.11.2940.2002 | Sink to be welded 290x400x200 | STEEL | 290 | 400 | 200 | 0.00 | 1100 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8796 | 50.10.11.2940.2001 | Sink to be welded 290x400x200 | STEEL | 290 | 400 | 200 | 0.00 | 2400 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8797 | 50.10.10.2940.2002 | Sink to be welded 290x400x200 | STEEL | 290 | 400 | 200 | 0.00 | 2400 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8798 | 50.10.10.2940.2001 | Sink to be welded 290x400x200 | STEEL | 290 | 400 | 200 | 0.00 | 2400 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8799 | 50.10.11.2935.2002 | Sink to be welded 290x350x200 | STEEL | 290 | 350 | 200 | 0.00 | 2400 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8800 | 50.10.11.2935.2001 | Sink to be welded 290x350x200 | STEEL | 290 | 350 | 200 | 0.00 | 2300 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8801 | 50.10.10.2935.2002 | Sink to be welded 290x350x200 | STEEL | 290 | 350 | 200 | 0.00 | 2300 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8802 | 50.10.10.2935.2001 | Sink to be welded 290x350x200 | STEEL | 290 | 350 | 200 | 0.00 | 2300 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8803 | 50.10.11.2525.2000 | Sink to be welded 250x250x200 | STEEL | 250 | 250 | 200 | 0.00 | 2300 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8804 | 50.10.10.2525.2002 | Sink to be welded 250x250x200 | STEEL | 250 | 250 | 200 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8805 | 50.10.10.2525.2001 | Sink to be welded 250x250x200 | STEEL | 250 | 250 | 200 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8806 | 50.10.10.2525.1602 | Sink to be welded 250x250x160 | STEEL | 250 | 250 | 160 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8807 | 50.10.10.2525.1601 | Sink to be welded 250x250x160 | STEEL | 250 | 250 | 160 | 0.00 | 1050 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||

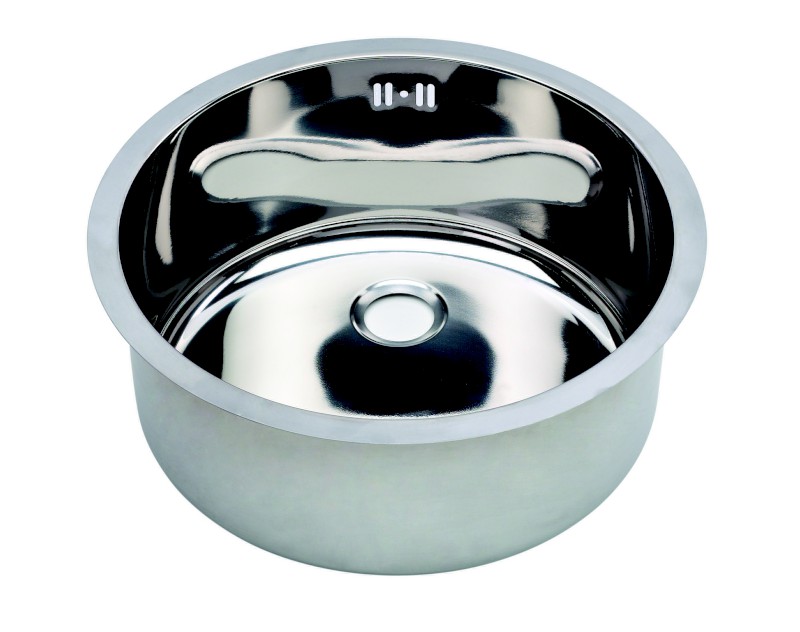

 | 8829 | 50.10.10.4200.1800 | Sink to be welded 420x180 | STEEL | 420 | 420 | 180 | 0.00 | 700 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8830 | 50.10.10.3800.1800 | Sink to be welded 380x180 | STEEL | 380 | 380 | 180 | 0.00 | 2100 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8831 | 50.10.10.3600.1800 | Round sink to be welded 360x180 | STEEL | 360 | 360 | 180 | 0.00 | 1700 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8832 | 50.10.10.3000.1800 | Round sink to be welded 300x180 | STEEL | 300 | 300 | 180 | 0.00 | 1500 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 |
Sinks to be set
| Code N. | Code | Description | Color | Lenght (mm) | Width (mm) | Height (mm) | Capacity (l) | Weight (g) | Material | Extra | Max Load | Q.tà vendita | Qty Master Carton | H. box | W. box | L. box | CN Codes (Intrastat) | Barcode | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| | 8808 | 50.10.31.4040.3000 | Sink to be set 400x400x300 | STEEL | 400 | 400 | 300 | 0.00 | 1050 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8809 | 50.10.30.4040.3002 | Sink to be set 400x400x300 | STEEL | 400 | 400 | 300 | 0.00 | 4000 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8810 | 50.10.30.4040.3001 | Sink to be set 400x400x300 | STEEL | 400 | 400 | 300 | 0.00 | 4000 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8811 | 50.10.31.4040.2500 | Sink to be set 400x400x250 | STEEL | 400 | 400 | 250 | 0.00 | 4000 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8812 | 50.10.30.4040.2502 | Sink to be set 400x400x250 | STEEL | 400 | 400 | 250 | 0.00 | 3300 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8813 | 50.10.30.4040.2501 | Sink to be set 400x400x250 | STEEL | 400 | 400 | 250 | 0.00 | 3300 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8814 | 50.10.31.4040.2000 | Sink to be set 400x400x200 | STEEL | 400 | 400 | 200 | 0.00 | 3300 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8815 | 50.10.30.4040.2002 | Sink to be set 400x400x200 | STEEL | 400 | 400 | 200 | 0.00 | 3000 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8816 | 50.10.30.4040.2001 | Sink to be set 400x400x200 | STEEL | 400 | 400 | 200 | 0.00 | 3000 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8817 | 50.10.31.3333.2000 | Sink to be set 330x330x200 | STEEL | 330 | 330 | 200 | 0.00 | 3000 | Aisi304 | bottom hole only | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8818 | 50.10.30.3333.2002 | Sink to be set 330x330x200 | STEEL | 330 | 330 | 200 | 0.00 | 2400 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8819 | 50.10.30.3333.2001 | Sink to be set 330x330x200 | STEEL | 330 | 330 | 200 | 0.00 | 2400 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||

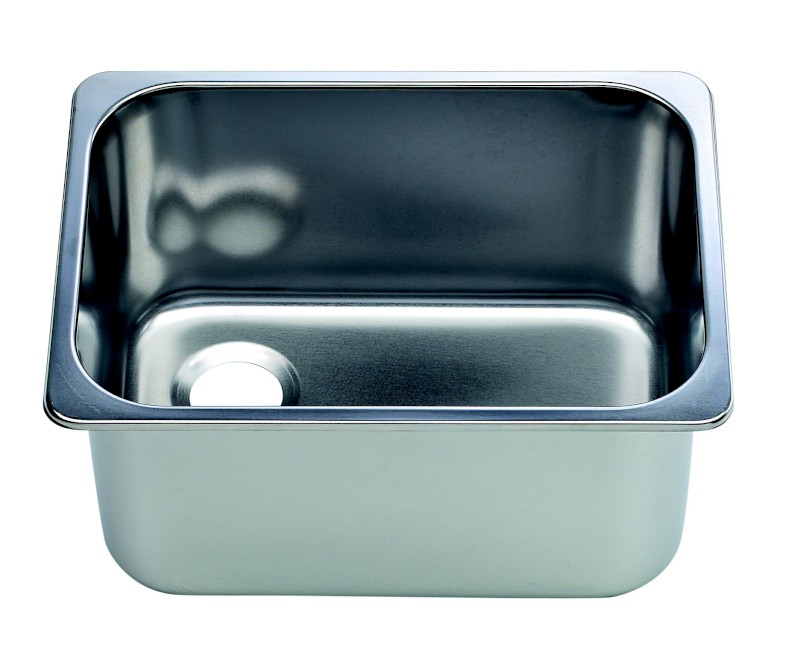

 | 8820 | 50.10.31.3323.1801 | Sink to be set 330x235x180 | STEEL | 330 | 235 | 180 | 0.00 | 2400 | Aisi304 | bottom hole only, LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8821 | 50.10.31.3323.1802 | Sink to be set 330x235x180 | STEEL | 330 | 235 | 180 | 0.00 | 1100 | Aisi304 | bottom hole only, RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8822 | 50.10.30.3323.1802 | Sink to be set 330x235x180 | STEEL | 330 | 235 | 180 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes LEFT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8823 | 50.10.30.3323.1801 | Sink to be set 330x235x180 | STEEL | 330 | 235 | 180 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes RIGHT side | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||

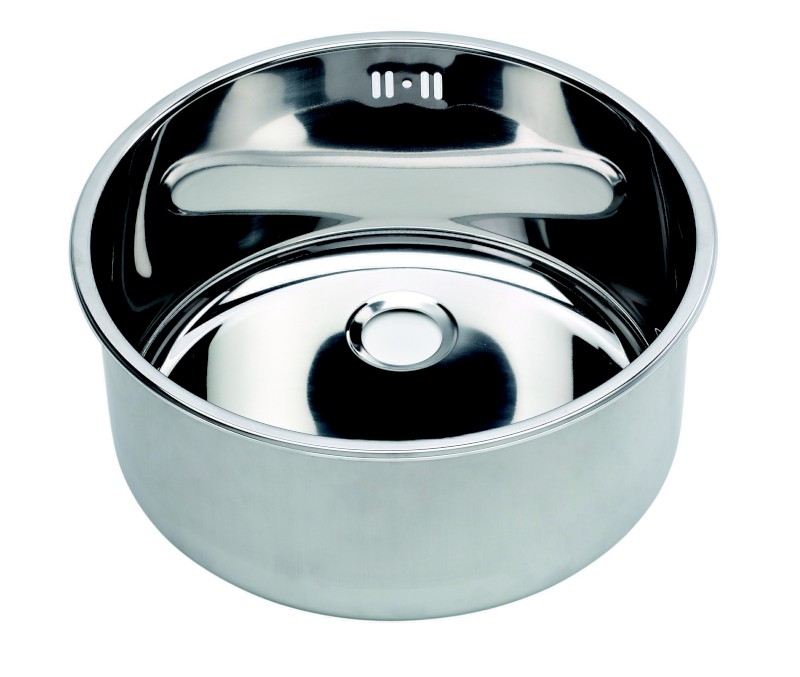

 | 8824 | 50.10.30.4200.1800 | Round sink to be set 420x180 | STEEL | 420 | 420 | 180 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||

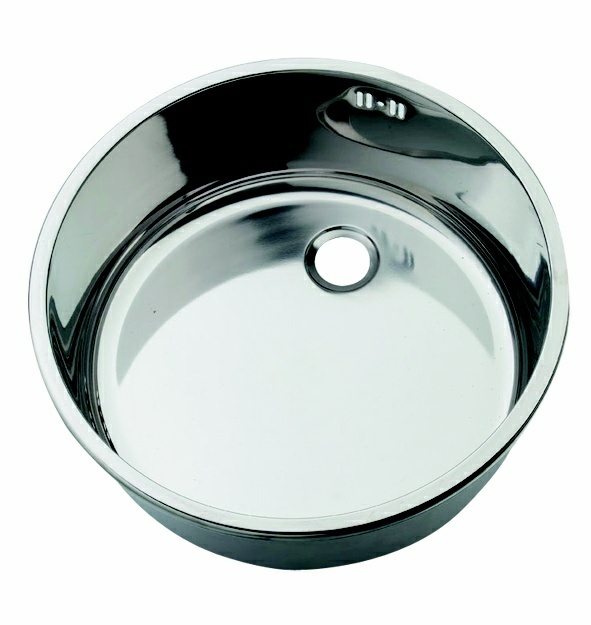

 | 8825 | 50.10.30.3800.1800 | Round sink to be set 380x180 | STEEL | 380 | 380 | 180 | 0.00 | 2100 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8826 | 50.10.30.3600.1800 | Round sink to be set 360x180 | STEEL | 360 | 360 | 180 | 0.00 | 1700 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8827 | 50.10.30.3000.1800 | Round sink to be set 300x180 | STEEL | 300 | 300 | 180 | 0.00 | 1500 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8828 | 50.10.30.2600.1800 | Round sink to be set 260x180 | STEEL | 260 | 260 | 180 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 |
Round sink to be set
| Code N. | Code | Description | Color | Lenght (mm) | Width (mm) | Height (mm) | Capacity (l) | Weight (g) | Material | Extra | Max Load | Q.tà vendita | Qty Master Carton | H. box | W. box | L. box | CN Codes (Intrastat) | Barcode | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| | 8824 | 50.10.30.4200.1800 | Round sink to be set 420x180 | STEEL | 420 | 420 | 180 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8825 | 50.10.30.3800.1800 | Round sink to be set 380x180 | STEEL | 380 | 380 | 180 | 0.00 | 2100 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8826 | 50.10.30.3600.1800 | Round sink to be set 360x180 | STEEL | 360 | 360 | 180 | 0.00 | 1700 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8827 | 50.10.30.3000.1800 | Round sink to be set 300x180 | STEEL | 300 | 300 | 180 | 0.00 | 1500 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 | ||
| | 8828 | 50.10.30.2600.1800 | Round sink to be set 260x180 | STEEL | 260 | 260 | 180 | 0.00 | 1100 | Aisi304 | bottom hole and overflow holes | 0.00 | 1.00 | 0 | 0.00 | 0.00 | 0.00 | 73241000 |
Round sink to be welded
| Model | Description |
|---|---|
| 420×180 | bottom hole and overflow holes |
| 380×180 | bottom hole and overflow holes |
| 360×180 | bottom hole and overflow holes |
| 300×180 | bottom hole and overflow holes |
Accessories for sinks
| Model |
|---|
| Flexible polypropylene tube with overflow |
| Plastic fix siphon complete for sinks |
| Filter d.54 only for SST tube |
| SST tube 158 mm Ø 54 For basins H 180 mm |
| SST tube 188 mm Ø 54 For basins H 200 mm |
| SST tube 235 mm Ø 54 For basins H 250 mm |
| SST tube 270 mm Ø 54 For basins H 300 mm |
Accessories for sinks
| Model | Description |
|---|---|
| 330x235x180 | Column sink with square basin |
| 330x330x200 | Column sink with square basin |
Accessories for sinks
| Model | Description |
|---|---|
| 330x235x180 | Knee-deep sink with square basin |
| 330x330x200 | Knee-deep sink with square basin |
Accessories for sinks
| Model | Description |
|---|---|
| d. 250×170 | Knee-deep sink with round basin |
