Hooks

From the heights of excellence… they ensure your products.
All sort of models that carry any weight and that meet all requirements of absolute hygiene.
Hooks of great quality… to go up a level.

Hooks and accessories for butcher shops

Inox Macel’s origins and production history start here. The hooks are available in many forms and variants and they can be made to customer’s design. Available in Aisi420 or 304 on request, they don’t fear high loads and the aggressive elements typical of meat processing. Easy to handle thanks to the smooth surface and high thickness, they can be made with our without pointy ends according to desired use and better safety. The line is completed with the typical accessories needed in every butcher shop: from hacksaws to meat pounders, from skewers to pincers.

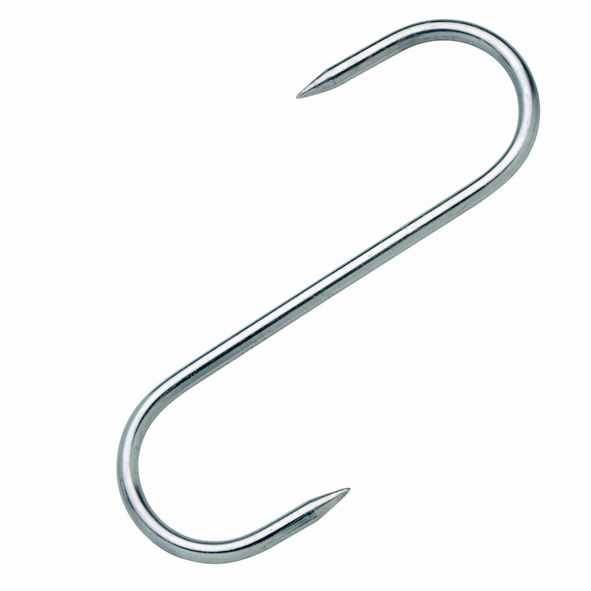

Two points fixed hook

Code
N.
Code Description Color Lenght
(mm)
Width
(mm)
Height
(mm)
Capacity
(l)
Weight
(g)
Material Extra Max Load Q.tà vendita Qty Master
Carton
H. box W. box L. box CN Codes
(Intrastat)
Barcode
8207 10.13.10.0100.0603010001Two pointy ends fixed hook 60x3 STEEL600000.008Aisi43025.0010.0010 9.70 4.50 5.00821490008054615823549
8208 10.13.10.0100.0803010002Two pointy ends fixed hook 80x3 STEEL800000.0010Aisi43025.0010.0010 9.70 4.50 5.00821490008054615823860
8209 10.13.10.0100.0804010003Two pointy ends fixed hook 80x4 STEEL800000.0016Aisi43040.0010.0010 9.70 4.50 5.00821490008054615823877
8210 10.13.10.0100.1004010004Two pointy ends fixed hook 100x4 STEEL1000000.0020Aisi43040.0010.0010 11.70 4.50 5.00821490008054615823884
8211 10.13.10.0100.1005010005Two pointy ends fixed hook 100x5 STEEL1000000.0030Aisi43050.0010.0010 0.00 0.00 0.00821490008054615823891
8212 10.13.10.0100.1205010006Two pointy ends fixed hook 120x5 STEEL1200000.0036Aisi43050.0010.0010 14.00 5.00 6.30821490008054615823907
8213 10.13.10.0100.1405010007Two pointy ends fixed hook 140x5 STEEL1400000.0042Aisi43050.0010.0010 15.10 5.00 6.70821490008054615823914
8214 10.13.10.0100.1406010008Two pointy ends fixed hook 140x6 STEEL1400000.0056Aisi43070.0010.0010 15.10 5.00 6.70821490008054615823921
8215 10.13.10.0100.1606010009Two pointy ends fixed hook 160x6 STEEL1600000.0062Aisi43070.0010.0010 18.00 7.00 6.50821490008054615823938
8216 10.13.10.0100.1806010010Two pointy ends fixed hook 180x6 STEEL1800000.0070Aisi43070.0010.0010 19.70 7.40 6.00821490008054615823945
8217 10.13.10.0100.1807010011Two pointy ends fixed hook 180x7STEEL1800000.0094Aisi43080.0010.0010 19.00 8.50 8.00821490008054615823952
8218 10.13.10.0100.1808010012Two pointy ends fixed hook 180x8 STEEL1800000.00126Aisi43090.0010.0010 19.00 8.50 8.00821490008054615823969
8219 10.13.10.0100.2009010013Two pointy ends fixed hook 200x9 STEEL2000000.00170Aisi430120.0010.0010 22.70 9.00 9.00821490008054615823976
8220 10.13.10.0100.2209010014Two pointy ends fixed hook 220x9STEEL2200000.00186Aisi430120.0010.0010 25.00 9.00 9.00821490008054615823983
8221 10.13.10.0100.2510010015Two pointy ends fixed hook 250x10STEEL2500000.00266Aisi430140.0010.000 0.00 0.00 0.00821490008054615823990
8222 10.13.10.0100.3012010016Two pointy ends fixed hook 300x12 STEEL3000000.00450Aisi430180.0010.000 0.00 0.00 0.00821490008054615824003
8223 10.13.10.0100.4012010017Two pointy ends fixed hook 400x12STEEL4000000.00540Aisi430180.0010.000 0.00 0.00 0.00821490008054615824010
8224 10.13.10.0100.5012010018Two pointy ends fixed hook 500x12STEEL5000000.00630Aisi430180.0010.000 0.00 0.00 0.00821490008054615824027
8225 10.13.10.0100.7512010019Two pointy ends fixed hook 750x12STEEL7500000.00820Aisi430180.0010.000 0.00 0.00 0.00821490008054615824034
8226 10.13.10.0100.1012010020Two pointy ends fixed hook 1000x12STEEL10000000.001048Aisi430180.0010.0010 0.00 0.00 0.00821490008054615824041

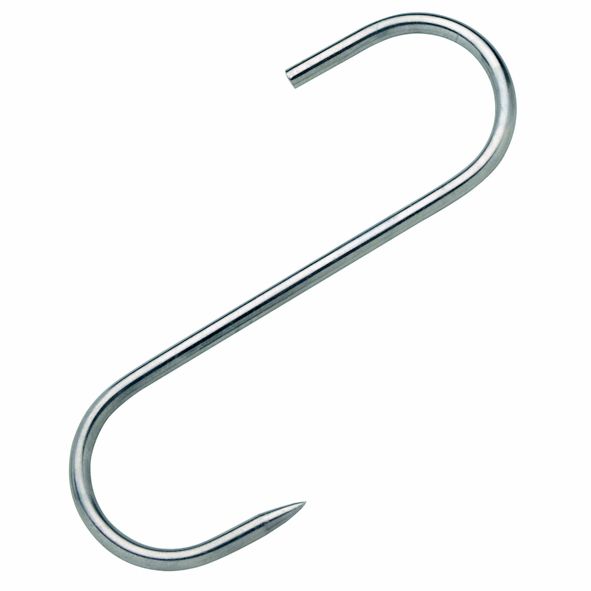

One point fixed hook

Code
N.
Code Description Color Lenght
(mm)
Width
(mm)
Height
(mm)
Capacity
(l)
Weight
(g)
Material Extra Max Load Q.tà vendita Qty Master
Carton
H. box W. box L. box CN Codes
(Intrastat)
Barcode
8227 10.13.10.0101.0603012001One pointy end fixed hook 60x3 STEEL600000.008Aisi43025.0010.0010 9.70 4.50 5.00821490008054615824058
8228 10.13.10.0101.0803012002One pointy end fixed hook 80x3 STEEL800000.0010Aisi43025.0010.0010 9.70 4.50 5.00821490008054615824065
8229 10.13.10.0101.0804012003One pointy end fixed hook 80x4 STEEL800000.0016Aisi43040.0010.0010 9.70 4.50 5.00821490008054615824072
8230 10.13.10.0101.1004012004One pointy end fixed hook 100x4 STEEL1000000.0020Aisi43040.0010.0010 11.70 4.50 5.00821490008054615824089
8231 10.13.10.0101.1005012005One pointy end fixed hook 100x5 STEEL1000000.0030Aisi43050.0010.0010 11.70 4.50 5.00821490008054615824096
8232 10.13.10.0101.1205012006One pointy end fixed hook 120x5 STEEL1200000.0036Aisi43050.0010.0010 14.00 5.00 6.30821490008054615824102
8233 10.13.10.0101.1405012007One pointy end fixed hook 140x5 STEEL1400000.0042Aisi43050.0010.0010 15.10 5.00 6.70821490008054615824119
8234 10.13.10.0101.1406012008One pointy end fixed hook 140x6 STEEL1400000.0056Aisi43070.0010.0010 15.10 5.00 6.70821490008054615824126
8235 10.13.10.0101.1606012009One pointy end fixed hook 160x6 STEEL1600000.0062Aisi43070.0010.0010 18.00 7.00 6.50821490008054615824133
8236 10.13.10.0101.1806012010One pointy end fixed hook 180x6 STEEL1800000.0070Aisi43070.0010.0010 19.70 7.40 6.00821490008054615824140
8237 10.13.10.0101.1807012011One pointy end fixed hook 180x7 STEEL1800000.0094Aisi43080.0010.0010 19.00 8.50 8.00821490008054615824157
8238 10.13.10.0101.1808012012One pointy end fixed hook 180x8 STEEL1800000.00126Aisi43090.0010.0010 19.00 8.50 8.00821490008054615824164
8239 10.13.10.0101.2009012013One pointy end fixed hook 200x9 STEEL2000000.00170Aisi430120.0010.0010 22.70 9.00 9.00821490008054615824171
8240 10.13.10.0101.2209012014One pointy end fixed hook 220x9 STEEL2200000.00186Aisi430120.0010.0010 25.00 9.00 9.00821490008054615824188
8241 10.13.10.0101.2510012015One pointy end fixed hook 250x10STEEL2500000.00266Aisi430140.0010.000 0.00 0.00 0.00821490008054615824195
8242 10.13.10.0101.3012012016One pointy end fixed hook 300x12 STEEL3000000.00450Aisi430180.0010.000 0.00 0.00 0.00821490008054615824201
8243 10.13.10.0101.4012012017One pointy end fixed hook 400x12STEEL4000000.00540Aisi430180.0010.000 0.00 0.00 0.00821490008054615824218
8244 10.13.10.0101.5012012018One pointy end fixed hook 500x12STEEL5000000.00630Aisi430180.0010.000 0.00 0.00 0.00821490008054615824225
8245 10.13.10.0101.7512012019One pointy end fixed hook 750x12 STEEL7500000.00820Aisi430180.0010.000 0.00 0.00 0.00821490008054615824232
8246 10.13.10.0101.1012012020One pointy end fixed hook 1000x12STEEL10000000.001048Aisi430180.0010.000 0.00 0.00 0.00821490008054615824249

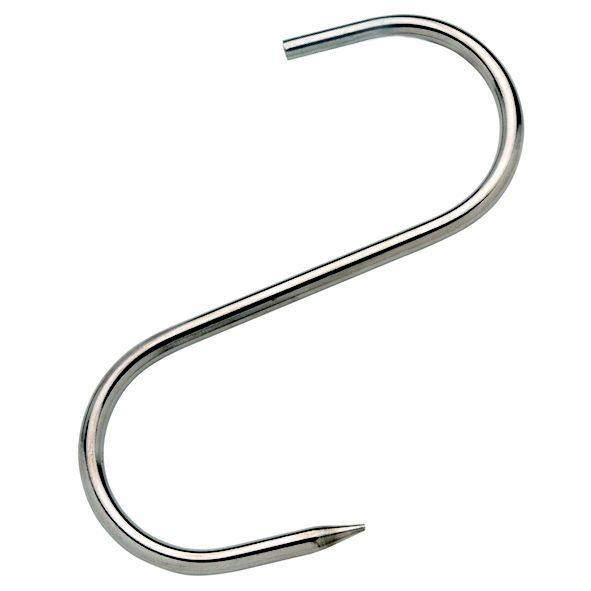

One point hooks with maxi radius

Code
N.
Code Description Color Lenght
(mm)
Width
(mm)
Height
(mm)
Capacity
(l)
Weight
(g)
Material Extra Max Load Q.tà vendita Qty Master
Carton
H. box W. box L. box CN Codes
(Intrastat)
Barcode
8247 10.13.10.0110.1205015001Hook 1P with maxi radius 120x5 STEEL1200000.0038Aisi43050.0010.0010 14.00 5.00 6.30821490008054615824256
8248 10.13.10.0110.1405015002Hook 1P with maxi radius 140x5STEEL1400000.0047Aisi43050.0010.0010 15.10 5.00 6.70821490008054615824263
8249 10.13.10.0110.1406015003Hook 1P with maxi radius 140x6 STEEL1400000.0068Aisi43070.0010.0010 15.10 5.00 6.70821490008054615824270
8250 10.13.10.0110.1606015004Hook 1P with maxi radius 160x6 STEEL1600000.0070Aisi43070.0010.0010 18.00 7.00 6.50821490008054615824287
8251 10.13.10.0110.1806015005Hook 1P with maxi radius 180x6 STEEL1800000.0075Aisi43070.0010.0010 19.70 7.40 6.00821490008054615824294
8252 10.13.10.0110.1808015006Hook 1P with maxi radius 180x8STEEL1800000.0098Aisi43090.0010.0010 19.00 8.50 8.00821490008054615824300
8253 10.13.10.0110.2010015007Hook 1P with maxi radius 200x10 STEEL2000000.00228Aisi430140.0010.0010 22.70 9.00 9.00821490008054615824317

Revolving wheel hook 18/10

Code
N.
Code Description Color Lenght
(mm)
Width
(mm)
Height
(mm)
Capacity
(l)
Weight
(g)
Material Extra Max Load Q.tà vendita Qty Master
Carton
H. box W. box L. box CN Codes
(Intrastat)
Barcode
8266 10.10.10.0113.400603305118/8 revolving wheel hook 400x6STEEL4000000.00938Aisi430100.0010.000 0.00 0.00 0.00821490008054615824324

One point revolving hook

Model Dim. mm Max load Kg Radius
019001 220×9 120 5,2
019002 240×10 140 6,2
019004 270×12 180 6,5
019005 300×12 180 6,7
019006 400×12 180 6,7
019007 500×12 180 6,7
019008 750×12 180 6,7

Revolving anchor hook

Model Dim. mm Max load Kg
020001 320x230x10 140
020002 320x280x12 180

Anchor hook in 18/8 with ring

Model Dim. mm Max load Kg
022001 300×12 300

Hook Mod. C with aluminium handle

Model Dim. mm Max load Kg
031001 165×7 50

Hook with flat head

Model Dim. mm Max load Kg
058001 170×12 180

Plastic pulley with hook

Model Dim. mm Max load Kg
059051 170×12 180

Bacon Hooks

Baconhook with 4 holds and one big hook

Model Dim. mm Max load Kg
0280511 60x140x4 15

Baconhook with 3 holds and two back hooks

Model Dim. mm Max load Kg
030051 150x120x4 15

Skewers

Model Dim. mm
077001 100×3
077002 150×3
077003 200×3
077004 250×3
077005 300×3
077006 350×3
077007 400×3
079001 560×5

Swords

Model Dim. mm
078502 600x15x3
078002 700x15x3
078003 700x20x2

Butcher tools

St/St meat pounder

Model Weight
080002 0,8 Kg
080003 1 Kg
080004 1,5 Kg
080006 2 Kg

Bell scraper without spring

Model Dim. mm
037001 H 190 Ø 70

Bell scraper with spring

Model Dim. mm
037002 H 190 Ø 70

Oval nerve meat cutter with 18/8 blades

Model Dim. mm
036150 150×100

Round nerve meat cutter with 18/8 blades

Model Dim. mm
TNERV6080 Ø 60×807

Hacksaws

St/St hacksaw rapid clamping

Model Dim. mm
084101 400
084102 450
084103 500
084104 550

St/St hacksaw

Model Dim. mm
084001 400
084002 450
084003 500
084004 550

Spare part for rapid clamping

Model Dim. mm
084601 400
084602 450
084603 500

Spare part for hacksaw

Model Dim. mm
084501 400
084502 450
084503 500

18/8 tong 115×50

Model Dim. mm
036051 115×50

18/8 tong export 105×75

Model Dim. mm
036052 105×75
